HISMART Power Supply 12V 30A 360W

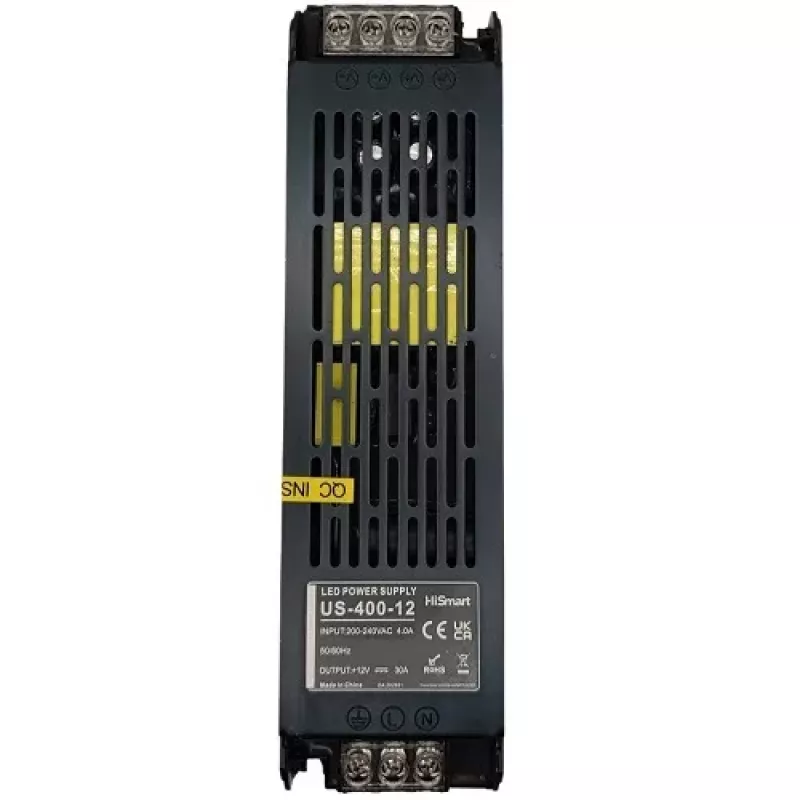

The HISMART US-400-12 is a high-performance 360W power supply delivering a stable 12V DC output at 30A. Designed for industrial and commercial applications, it features forced air cooling, multiple protection circuits, and a rugged perforated metal case. Ideal for powering LED strips, CCTV systems, 3D printers, and automation equipment.

Advantages

Reliable 360W continuous power with >85% efficiency. Built-in fan ensures cool operation even under full load. Comprehensive protection against overload, over-voltage, short-circuit, and over-temperature. Adjustable output voltage (10.8V-13.2V) for flexibility.

Suitable for

• LED lighting installations
• Security camera systems
• 3D printers and CNC machines
• Industrial automation and control panels
• Audio/video equipment

Key specifications

• Output: 12V DC, 30A, 360W
• Input: 100-240V AC, 50/60Hz
• Efficiency: >85%
• Protection: Overload, Over-voltage, Short-circuit, Over-temperature
• Cooling: Forced air (built-in fan)
• Voltage adjustment: ±10% (10.8V-13.2V)
• Ripple & noise: <150mVp-p
• Operating temperature: -10°C to +50°C
• Connectors: Screw terminal blocks (input and output)
• Certifications: CE, RoHS
• MTBF: >50,000 hours

Recommendations

For best performance, ensure adequate ventilation around the power supply. Use appropriately rated wiring and fuses. This unit is not suitable for outdoor use without additional weatherproofing.
