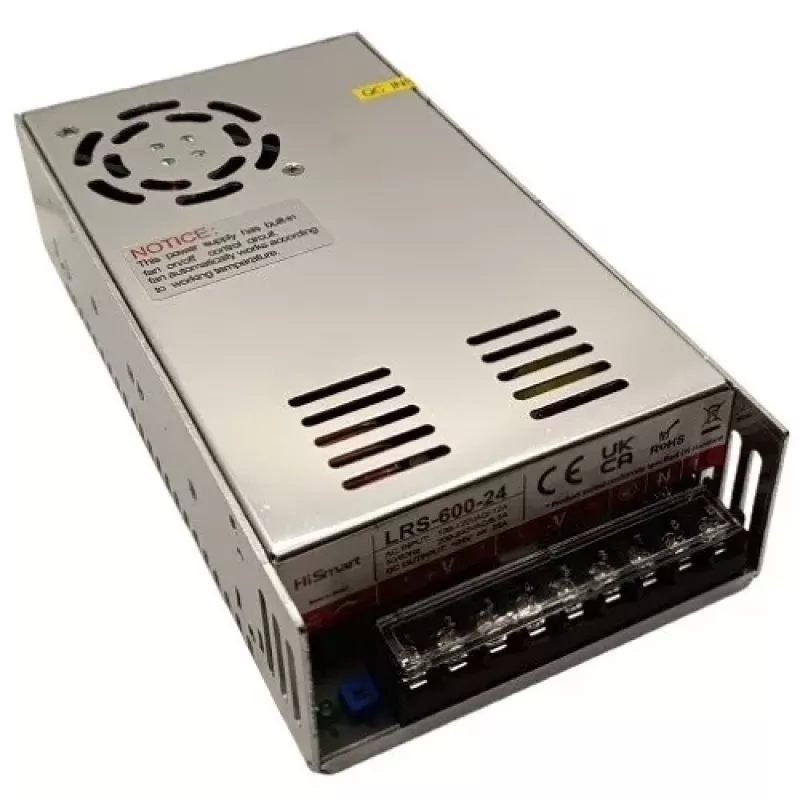

HISMART LRS-600-24 Power Supply 24V 25A 600W

The HISMART LRS-600-24 is a robust and reliable single-output power supply designed for industrial applications. With an output of 24V DC and 25A (600W), it provides stable power for a wide range of equipment. The unit features universal AC input (100-240V) and active power factor correction, ensuring high efficiency and compliance with global standards.

Advantages

High efficiency (>85%) reduces energy waste and heat generation. Built-in cooling fan ensures reliable operation even under full load. Comprehensive protection features (overload, overvoltage, short circuit, overtemperature) safeguard connected devices. Compact metal enclosure allows easy installation in control cabinets.

Suitable for

• Industrial automation systems
• LED lighting installations
• Security and surveillance equipment
• Communication devices
• Any application requiring a stable 24V DC power source

Key specifications

• Output Voltage: 24V DC (adjustable ±10%)
• Output Current: 25A
• Output Power: 600W
• Input Voltage: 100-240V AC
• Input Frequency: 50/60 Hz
• Efficiency: >85%
• Ripple & Noise: <150mVp-p
• Protection: Overload, Overvoltage, Short Circuit, Overtemperature
• Cooling: Built-in fan
• Operating Temperature: -10°C to 50°C
• Safety Compliance: CE, RoHS

Recommendations

For optimal performance, ensure adequate ventilation around the power supply. Use appropriate wire gauge for input and output connections. This unit is not suitable for direct connection to sensitive medical equipment without additional filtering.
