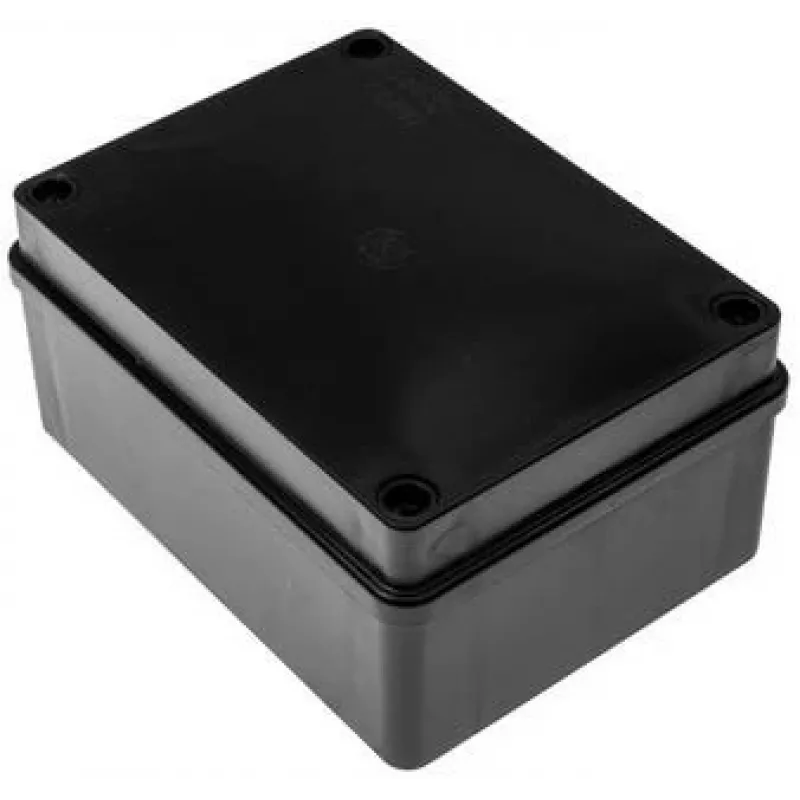

Hermetic Junction Box 150x110x70mm IP65 Halogen-Free Black PAWBOL S-B316C

The PAWBOL S-B316C hermetic junction box is a robust and reliable enclosure designed for electrical installations requiring high protection against dust and water. With dimensions of 150 x 110 x 70 mm and an IP65 rating, it is suitable for both indoor and outdoor use. The box is made of halogen-free plastic, ensuring safety in case of fire, and features a black color for a professional appearance.

Advantages

This junction box offers excellent durability and protection. Its IP65 rating guarantees complete protection against dust ingress and low-pressure water jets from any direction. The halogen-free material reduces toxic gas emission during combustion, making it safer for use in public buildings and residential areas. The stainless steel lid screws and polyurethane gasket provide a secure and long-lasting seal.

Suitable for

• Electrical junction and connection points in residential, commercial, and industrial buildings
• Outdoor lighting, security systems, and telecommunications installations
• Applications requiring halogen-free materials for enhanced fire safety
• Surface mounting on walls, ceilings, or other structures

Key specifications

• External dimensions (L x W x H): 150 x 110 x 70 mm
• Ingress protection: IP65
• Material: Halogen-free plastic
• Color: Black
• Cable glands: Not included (sold separately)
• Lid type: Screw-on with stainless steel screws
• Seal: Polyurethane (PU) gasket
• Operating temperature: -25°C to +60°C
• Impact resistance: IK07
• UV resistant: Yes
• Mounting: Surface mount
• Standards: PN-EN 60670-1, PN-EN 60670-22

Recommendations

For optimal performance, use appropriate cable glands (not included) to maintain the IP65 rating. The box can be fitted with optional mounting plates or DIN rails for internal component installation. Ensure the gasket is properly seated before closing the lid to guarantee the seal.
