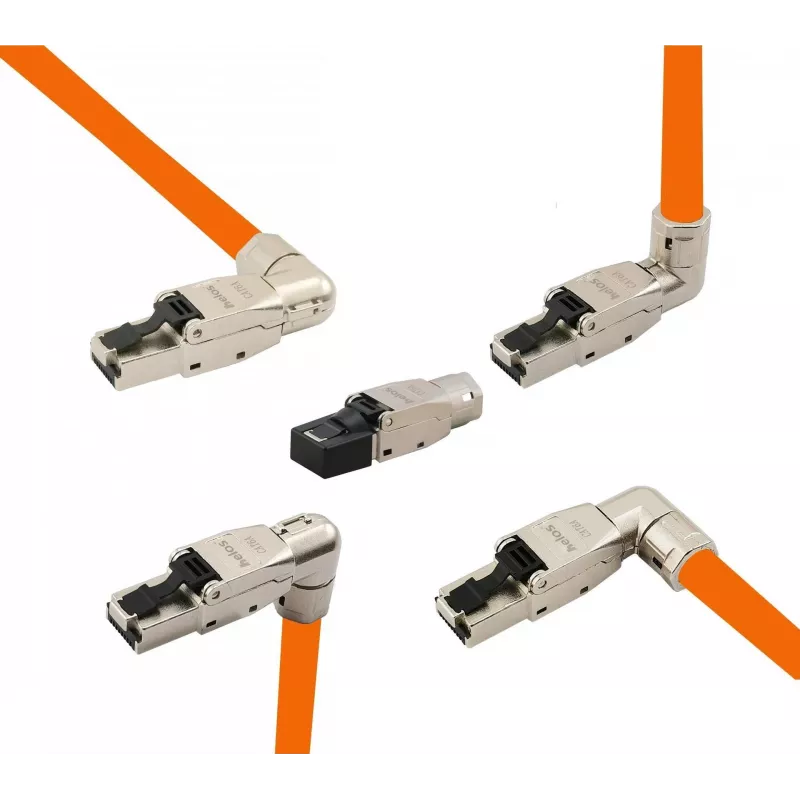

helos Cat 6A RJ45 Connector 263836 — Premium Field-Configurable, 5 variants

helos Cat 6A RJ45 Connector model 263836 is a premium, field-configurable RJ45 plug available in five variants. Designed for Category 6A cabling up to 500 MHz, the connector is fully shielded with gold-plated contacts and supports conductors from AWG22 to AWG26. The zinc-alloy housing allows tool-free assembly and the part is compatible with PoE, PoE+ and higher-power PoE implementations. The product meets relevant cabling standards and is RoHS 2.0 and REACH compliant.

Advantages

The connector provides on-site termination without the need for special tools, offering fast and flexible installation in structured cabling environments. Full shielding and gold-plated contacts improve signal integrity and corrosion resistance. Support for AWG22–AWG26 conductors and PoE variants ensures compatibility with a wide range of network cabling and power-over-Ethernet applications.

Suitable for

• Structured cabling installations in offices and commercial buildings
• Data center and server room patching and testing
• On-site cable termination and repairs
• PoE, PoE+ and high-power PoE network deployments
• Cat 6A links requiring up to 500 MHz performance

Key specifications

• Category: Cat 6A (up to 500 MHz)
• Shielding: fully shielded
• Contacts: gold-plated
• Conductor range: AWG22–AWG26
• Termination: insulation displacement (cut-and-clamp) to RJ45 plug
• Housing material: zinc alloy
• Assembly: tool-free, field-configurable
• PoE: supports PoE, PoE+, and higher-power PoE
• Standards: ISO/IEC 11801 Ed.2.2:2011-06; DIN EN 50173-1:2011-09; TIA/EIA-568-C.2 (2009-08); IEC 60603-7-5 Ed.1 (12/2008)
• Compliance: RoHS 2.0 and REACH

How to use

Strip the cable jacket to the recommended length, arrange the pairs according to the required wiring scheme, and insert the conductors into the connector's insulation displacement contacts. Complete assembly by closing the housing to secure the conductors; the tool-free design permits reliable termination without crimping tools. Verify wiring and continuity with a network tester before deployment.

Recommendations

Use the connector with solid or stranded Cat 6A cables within the specified AWG range and verify proper pair alignment before final assembly. For optimal performance, maintain cable bend radii and shielding continuity, and test each terminated link with appropriate certification or qualification equipment.
