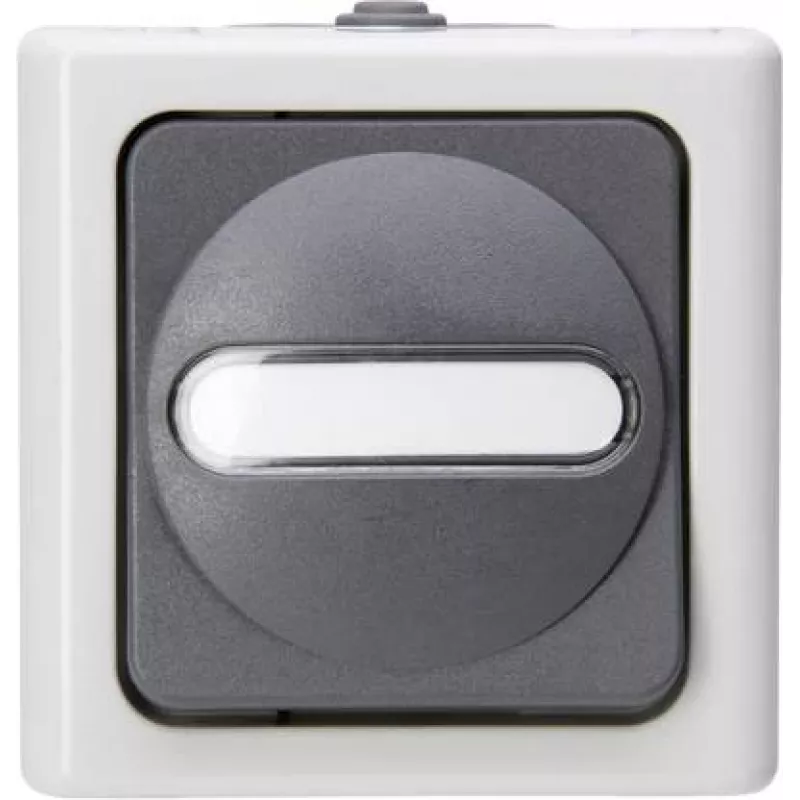

Heinrich Kopp Pushbutton Switch 1P Grey/White Thermoplastic IP44 78mm

The Heinrich Kopp 561456001 is a high-quality pushbutton switch designed for reliable momentary switching in indoor and protected outdoor areas. With a robust thermoplastic housing and IP44 ingress protection, it offers durability and safety for various applications. The switch features a 1-pole (1P) normally open (NO) contact, screw terminal connections, and a surface-mounted design, making it easy to install and integrate into existing electrical systems.

Advantages

This pushbutton switch provides a simple and effective solution for momentary control of lighting, bells, or other electrical devices. Its IP44 rating ensures protection against splashing water and dust, suitable for use in damp environments. The grey housing and white actuator offer a neutral appearance that blends with most decors. The screw terminals facilitate secure and straightforward wiring, while the 78 mm diameter and 58 mm depth allow for comfortable operation.

Suitable for

• Momentary switching of lights, bells, and alarms
• Use in residential, commercial, and industrial settings
• Protected outdoor areas such as covered entrances or porches
• Surface-mounted installations on walls or panels

Key specifications

• Switch Type: Pushbutton Switch (Momentary)
• Mounting Method: Surface-mounted
• Number of Poles: 1-pole (1P)
• Contact Configuration: 1 Normally Open (NO)
• Ingress Protection: IP44
• Rated Operating Voltage: 250 V AC
• Rated Current: 10 A
• Housing Material: Thermoplastic
• Housing Color: Grey
• Actuator Color: White
• Connection Type: Screw Terminal
• Diameter: 78 mm
• Depth: 58 mm
• Application Environment: Indoor and protected outdoor areas

Recommendations

For optimal performance, ensure the switch is installed in a location that does not exceed its IP44 protection limits. Use appropriate cable glands for cable entry points. Always follow local electrical codes and regulations during installation.
