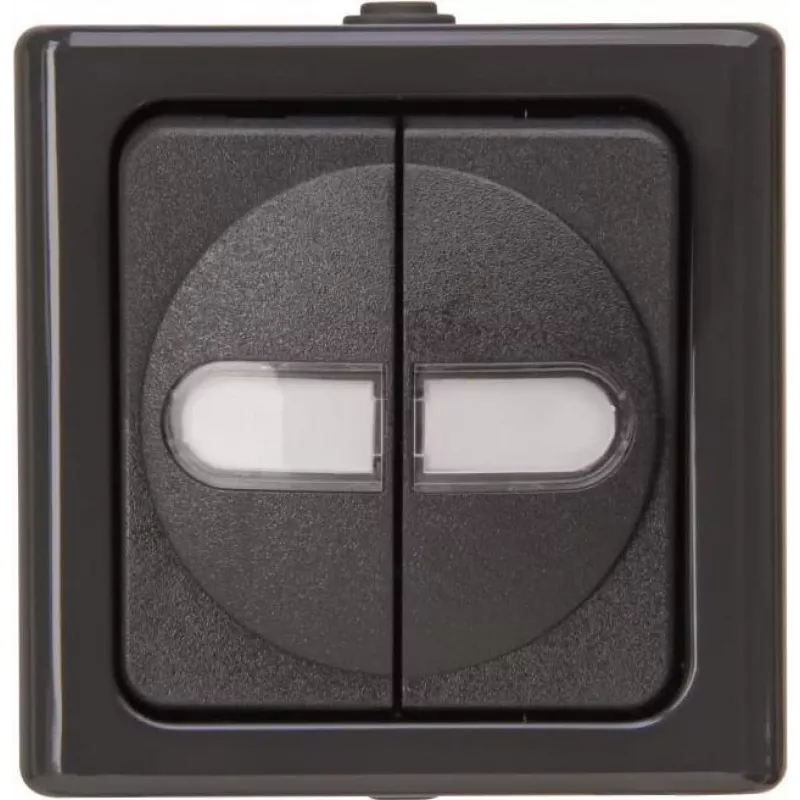

Heinrich Kopp BlueElectric Series Switch Surface-Mounted 2-Gang Anthracite

The Heinrich Kopp BlueElectric Series Switch (AP-FR) is a high-quality surface-mounted series switch designed for reliable control of lighting circuits in damp rooms and outdoor protected areas. With its robust IP44 protection and durable thermoplastic housing, this switch offers long-lasting performance and safety.

Advantages

IP44 protection against splashing water and dust ingress; UV-resistant and halogen-free materials ensure durability and environmental safety; impact resistance IK05 for mechanical protection; easy screw terminal connection for wires up to 2.5 mm²; VDE certified for quality assurance.

Suitable for

• Surface-mounted installations in bathrooms, kitchens, and outdoor covered areas
• Controlling two separate lighting circuits independently
• Residential and commercial applications requiring robust switching

Key specifications

• Switch type: Series switch (2-gang, 2x ON/OFF)
• Rated voltage: 250 V AC
• Rated current: 10 A
• Connection: Screw terminals (up to 2.5 mm²)
• Material: Thermoplastic, anthracite colour
• Protection class: IP44
• Operating temperature: -25°C to +40°C
• Certification: VDE

Recommendations

For optimal performance, ensure proper sealing of the surface-mounted enclosure. Suitable for use with standard 60 mm junction boxes. Always follow local electrical regulations.
