HEATCOM 150W/m² Electric Underfloor Heating Mat 1.6m² (240W, 230V, Twin Conductor, IPX7)

Delivering 150 W/m² of consistent warmth, this HEATCOM heating mat transforms cold floors into a cosy foundation for tile, stone, laminate, or engineered wood. With a heated area of 1.6 m² and a total output of 240 W, it’s sized for bathrooms, kitchens, and compact living spaces. The twin-conductor design cancels electromagnetic fields, while the ultra-thin 3.5 mm cable sits neatly in flexible tile adhesive or self-levelling compound without raising floor height.

Overview

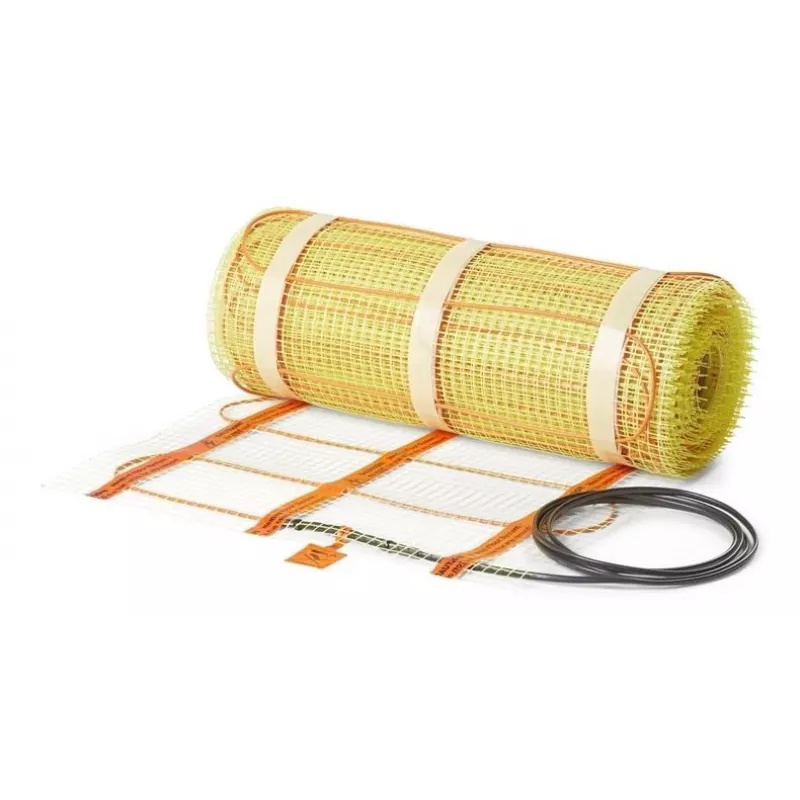

The HEATCOM mat features a fibreglass mesh that holds the heating cable in precise spacing, ensuring even heat distribution across the entire surface. The cable itself uses FEP insulation with a PVC outer sheath, offering excellent resistance to moisture and mechanical stress. Rated IPX7, it can be fully embedded in wet areas such as showers when installed according to local regulations. A 3 m cold lead provides flexibility for connecting to a thermostat (sold separately), and the mat can be cut and turned to fit irregular layouts without damaging the heating wire.

What stands out

• 150 W/m² output for efficient, comfortable floor warming
• Twin-conductor cable reduces electromagnetic field to near zero
• Ultra-thin 3.5 mm profile minimises floor build-up
• IPX7 waterproof rating allows installation in wet zones
• Fiberglass mesh enables fast, precise placement
• CE and SEMKO certified for safety and performance

Technical details

• Heated area: 1.6 m²
• Total power: 240 W
• Voltage: 230 V AC
• Mat dimensions: 3.2 m x 0.5 m
• Cold lead length: 3 m
• Heating cable type: Twin conductor
• Cable diameter: 3.5 mm
• Insulation: FEP (Fluorinated Ethylene Propylene)
• Outer sheath: PVC
• IP rating: IPX7
• Resistance: 220.4 Ohms
• Minimum bending radius: 30 mm
• Max operating temperature: 90 °C
• Conductor material: Copper
• Mesh material: Fiberglass
• Mounting: Embedded in flexible tile adhesive or self-levelling compound
• Thermostat: External (sold separately)
• Approvals: CE, SEMKO

Our verdict

The HEATCOM 150W/m² mat is a robust, efficient solution for underfloor heating in any room. Its twin-conductor design, IPX7 rating, and easy installation make it a top choice for both DIY and professional projects.
