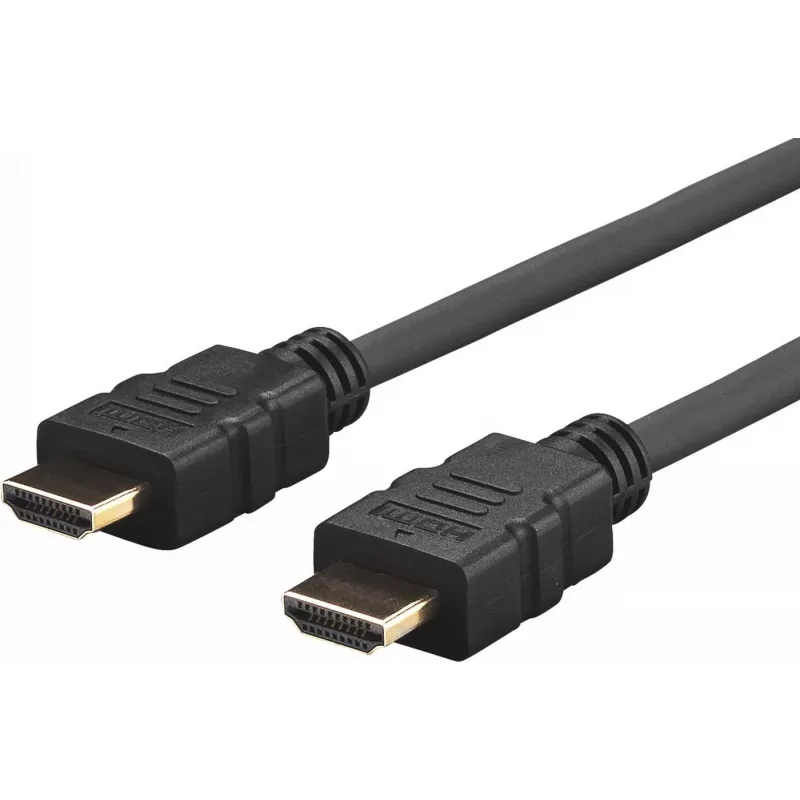

HDMI Cable Vivolink PRO HDMI LSZH 15m

The Vivolink PRO HDMI LSZH 15m is a 15-metre high-speed HDMI 2.0 cable with Ethernet designed for fixed AV installations. It supports resolutions up to 4K@60Hz (4096 x 2160) with HDCP 2.2, CEC and ARC, and delivers up to 18 Gbit/s data transfer. The cable features gold-plated contacts, a low smoke zero halogen (LSZH) jacket and male HDMI Type A connectors on both ends. The connector includes an HDMI lock to ensure a secure, stable connection in permanent AV setups; it is a unidirectional cable (one-way only).

Advantages

The cable provides high-bandwidth HDMI 2.0 performance for 4K@60Hz video and supports ARC and CEC for simplified audio and control connections. Its LSZH outer jacket reduces toxic fumes in case of fire and the ultra-flexible design eases routing in installation environments. Gold-plated contacts improve signal reliability and corrosion resistance. The built-in HDMI lock secures connections to distribution equipment in fixed installations.

Suitable for

• Permanent AV installations with HDMI distribution equipment (splitters, switches)
• Connecting AV receivers, displays and TVs in fixed setups
• Professional audio-visual systems requiring 4K@60Hz and HDCP 2.2 compatibility
• Environments where low-smoke, zero-halogen cabling is required

Key specifications

• Length: 15 m
• HDMI version: 2.0
• Maximum resolution: 4096 x 2160 (4K) at 60 Hz
• Bandwidth: up to 18 Gbit/s
• Connectors: HDMI Type A male — both ends
• Features: Ethernet, ARC, CEC, HDCP 2.2 support, 3D support
• Contacts: Gold-plated
• Sheath: Low Smoke Zero Halogen (LSZH)
• Colour: Black
• Note: Not bi-directional — one-way only; includes HDMI lock

How to use

Connect the male HDMI Type A end marked as the source to the video source device (for example, an AV distribution output) and connect the other end to the display or receiving equipment according to the cable’s indicated direction. Ensure the HDMI lock engages with the receiving equipment to maintain a secure connection in fixed installations. For use with laptops or portable devices, add a suitable adapter cable (for example PROHDMIHDMFM2) to protect the portable device’s HDMI interface from repeated plugging and unplugging.

Recommendations

Use this cable in fixed, permanent AV installations where a locked, one-way HDMI connection is required. Avoid using the cable as a temporary or frequently reconnected lead for portable devices unless an appropriate adapter is used to protect the device’s HDMI port.
