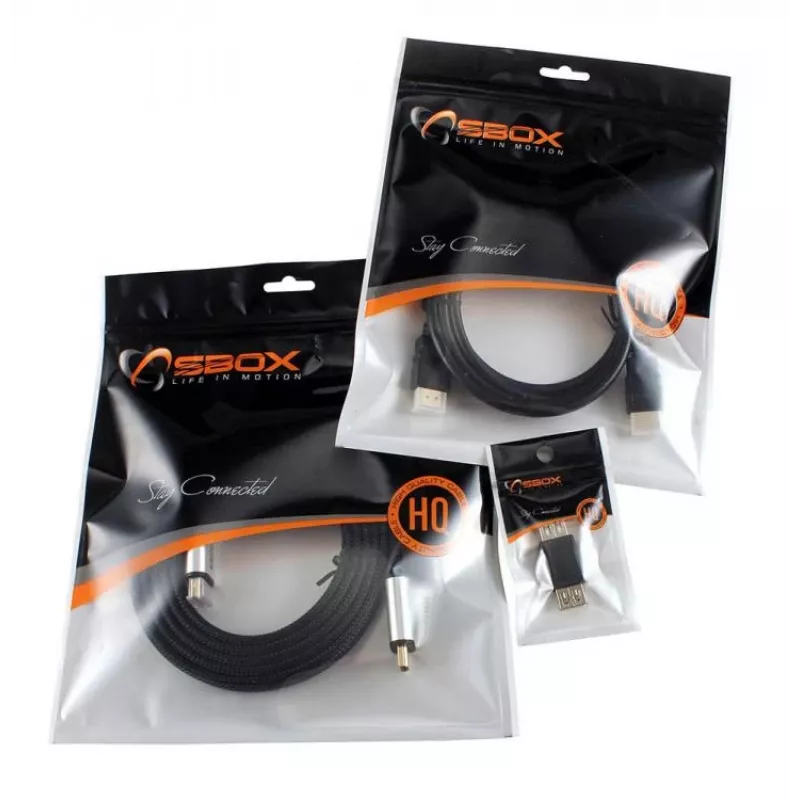

HDMI cable SBOX HDMI-MICRO/R 1.4 2 m — micro HDMI to HDMI, version 1.4, 2 meter length

SBOX HDMI-MICRO/R is a 2 m HDMI cable with a micro HDMI connector on one end and a standard HDMI connector on the other, compliant with HDMI 1.4. It is intended for connecting cameras, tablets and other portable devices to TVs, monitors or projectors for high-definition audio and video transmission. The cable supports maximum resolution up to 4K x 2K (2160p) at 30 FPS, Ethernet, ARC and CEC for integrated device control and networked setups.

Advantages

The cable is made from very high purity materials and features 24K gold-plated connectors to improve signal integrity and reduce corrosion. With an external cable diameter of 7.5 mm and low interference design it provides stable transmission and a maximum bandwidth of 10.2 Gbps. The 2 m length gives flexibility when connecting portable devices to displays while maintaining reliable performance.

Suitable for

• Connecting cameras or camcorders with micro HDMI output to TVs or monitors
• Connecting tablets and portable media players to projectors for presentations
• Screen mirroring from micro HDMI devices to larger displays
• Home entertainment setups that require ARC, CEC or Ethernet over HDMI

Key specifications

• Connector types: micro HDMI to standard HDMI
• HDMI version: 1.4
• Cable length: 2 m
• External diameter: 7.5 mm
• Connectors: 24K gold-plated
• Max resolution: 4K x 2K (2160p) @ 30 FPS
• Max bandwidth: 10.2 Gbps
• Ethernet: Yes
• ARC: Yes
• CEC: Yes

How to use

Connect the micro HDMI end to the source device (camera, tablet or other portable device) and the standard HDMI end to the TV, monitor or projector. Select the appropriate HDMI input on the display and, if required, enable HDMI features such as ARC or CEC in the device menus. Ensure secure seating of connectors to avoid intermittent signal loss.

Recommendations

For best results, avoid sharp bends and excessive pulling on the cable, keep connections free from dust, and use cable lengths appropriate for your setup to minimise signal degradation. When using ARC or Ethernet functions, check device settings and compatibility for full feature support.
