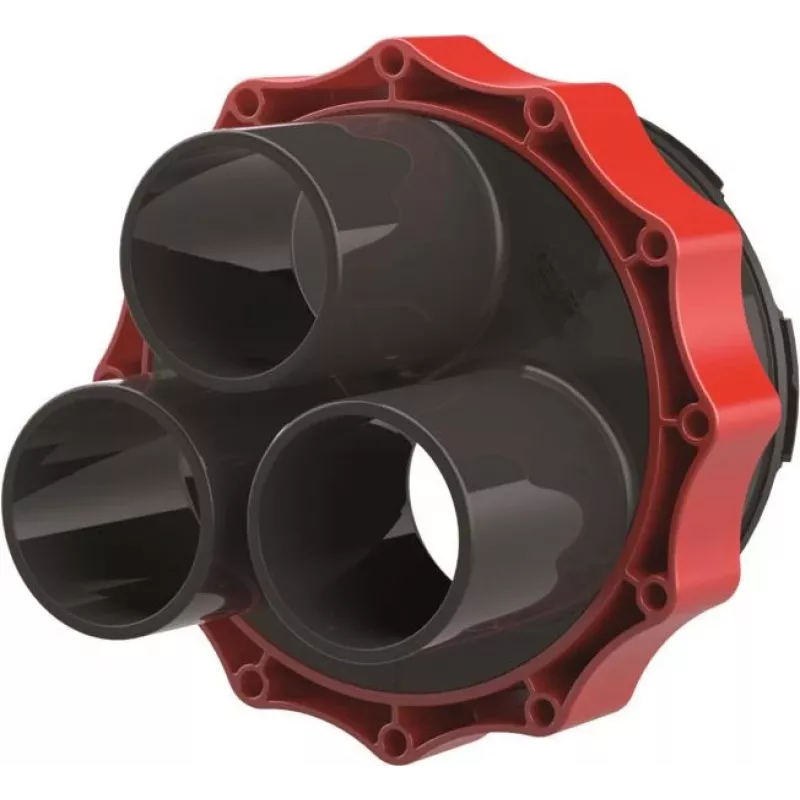

Hauff-Technik HSI 150 - D 3/58 System Cover / Lid (3030300082)

The Hauff-Technik HSI 150 - D 3/58 is a high-quality system cover (lid) designed for the HSI 150 house entry system. It provides a pressure-tight, gas-tight, and water-tight seal for up to three cable or pipe entries with a nominal diameter of 58 mm each. This cover is ideal for sealing unused or future entries, ensuring the integrity of the building envelope.

Advantages

This cover offers reliable sealing against moisture, gas, and pressure up to 2.5 bar. It is UV-resistant, chemical-resistant, and aging-resistant, ensuring long-lasting performance. The re-sealable design allows for easy future modifications without compromising the seal.

Suitable for

• Sealing of building entries for cables and pipes in the Hauff HSI 150 system
• Use in residential, commercial, and industrial buildings requiring gas-tight and water-tight seals
• Applications where future cable or pipe installations are anticipated

Key specifications

• Product Type: System Cover / Lid
• System Compatibility: Hauff HSI 150 House Entry System
• Number of Cable/Pipe Entries: 3
• Nominal Cable/Pipe Diameter per Entry: 58 mm
• Core Drill Hole Diameter (System): 150 mm
• Sealing Principle: Pressure-tight, gas-tight, water-tight
• Material: High-grade plastic (PP/ABS blend)
• Pressure Resistance: Up to 2.5 bar
• Temperature Range: -20°C to +80°C
• Color: Black
• Design: Circular, flat profile
• Standards Compliance: Meets relevant DIN and DVGW standards

Recommendations

For optimal performance, ensure the cover is installed correctly into the HSI 150 system body. This cover is re-sealable, allowing for future cable or pipe additions. Always follow the manufacturer's installation guidelines.
