Harting Han E Male Insert with Screw Termination, 10+PE Contacts, 16A, 500V

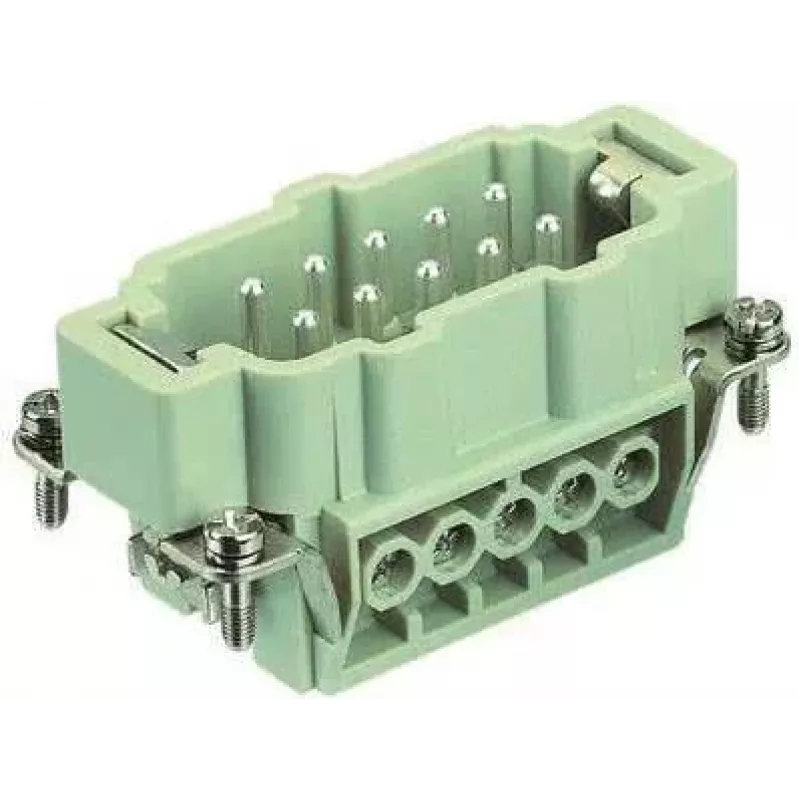

The Harting 09330102601 is a high-quality male insert (pin insert) from the Han E series, designed for industrial connector applications. This screw termination insert offers reliable and secure connections for power and signal transmission in harsh environments. With 10+PE contacts, it supports rated currents up to 16 A and voltages up to 500 V, making it suitable for a wide range of industrial machinery and control systems.

Advantages

Robust screw termination ensures easy and vibration-resistant wiring. The polycarbonate insulator with UL 94 V-0 flammability rating provides excellent fire safety. Rated for at least 500 mating cycles, this insert guarantees long-term durability. The wide operating temperature range from -40 °C to +125 °C allows use in extreme conditions.

Suitable for

• Industrial connectors and heavy-duty applications
• Power distribution and control systems
• Machine building, automation, and robotics
• Railway and transportation equipment

Key specifications

• Series: Han E
• Number of Contacts: 10 + PE (Protective Earth)
• Contact Gender: Male (Pin)
• Termination Type: Screw termination
• Rated Current: 16 A
• Rated Voltage: 500 V
• Rated Impulse Voltage: 6 kV
• Wire Gauge: 0.75 mm² to 2.5 mm² (AWG 18 to 14)
• Stripping Length: 7.5 mm
• Torque for Screw: 0.5 Nm
• Contact Material: Copper alloy
• Insulator Material: Polycarbonate (PC)
• Flammability Rating: UL 94 V-0
• Operating Temperature: -40 °C to +125 °C
• Mating Cycles: ≥ 500
• Pollution Degree: 3
• Contact Resistance: ≤ 1 mOhm
• Approvals: UL, CSA, DNV GL, CCC

Recommendations

For optimal performance, use with corresponding Han E hoods/housings and ensure proper torque application. This insert is ideal for building reliable connector assemblies in demanding industrial environments.
