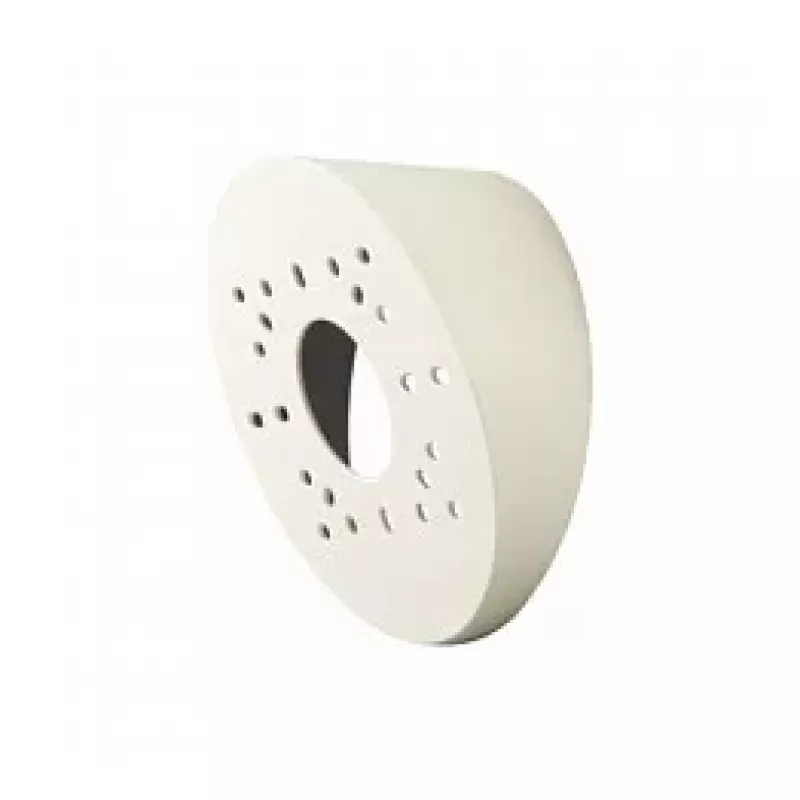

HANWHA - WISENET Wall Mount Bracket SBP-160TM for Dome and Bullet Cameras, White, Die-cast Aluminum, Outdoor

The HANWHA - WISENET SBP-160TM is a robust wall mount bracket designed for secure installation of Hanwha Techwin dome and bullet cameras. Made from die-cast aluminum with a white finish, it offers excellent durability and weather resistance for outdoor use. The integrated cable management ensures a clean and professional installation.

Advantages

This wall mount bracket provides a sturdy and reliable mounting solution for your security cameras. Its die-cast aluminum construction offers superior strength and corrosion resistance, ensuring long-lasting performance in various environmental conditions. The integrated cable management keeps cables organized and protected, enhancing the overall aesthetics and safety of the installation.

Suitable for

• Hanwha Techwin dome cameras (e.g., XNB, XNV series)
• Hanwha Techwin bullet cameras (e.g., XNO, PNO, PNV series)
• Outdoor surveillance installations requiring a durable wall mount

Key specifications

• Product Type: Wall Mount Bracket
• Material: Die-cast Aluminum
• Color: White
• Load Capacity: 10 kg (22 lbs)
• Operating Temperature: -50°C to +60°C (-58°F to +140°F)
• Operating Humidity: 0-90% RH (non-condensing)
• Dimensions (WxHxD): 160 x 160 x 100 mm
• Weight: 0.5 kg (approx.)
• Environmental Rating: Suitable for Outdoor Use
• Mounting Interface: Standard Hanwha Techwin mounting pattern
• Corrosion Resistance: Yes
• Installation: Easy installation

Recommendations

For optimal performance and security, ensure the bracket is mounted on a solid wall surface capable of supporting the camera and bracket weight. Use appropriate hardware for installation. This bracket is designed for use with Hanwha Techwin cameras; verify compatibility with your specific camera model before purchase.
