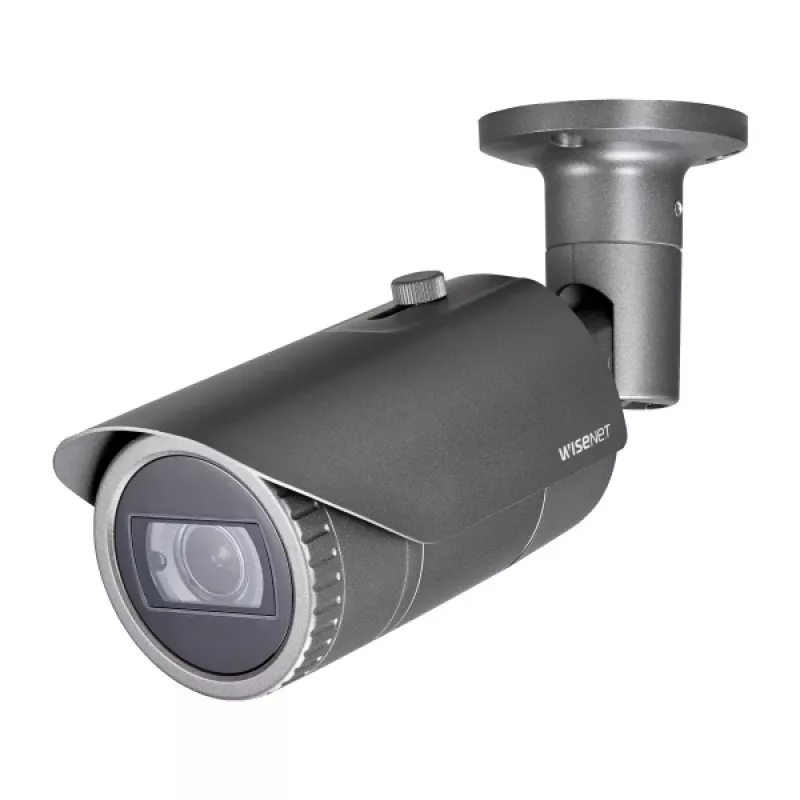

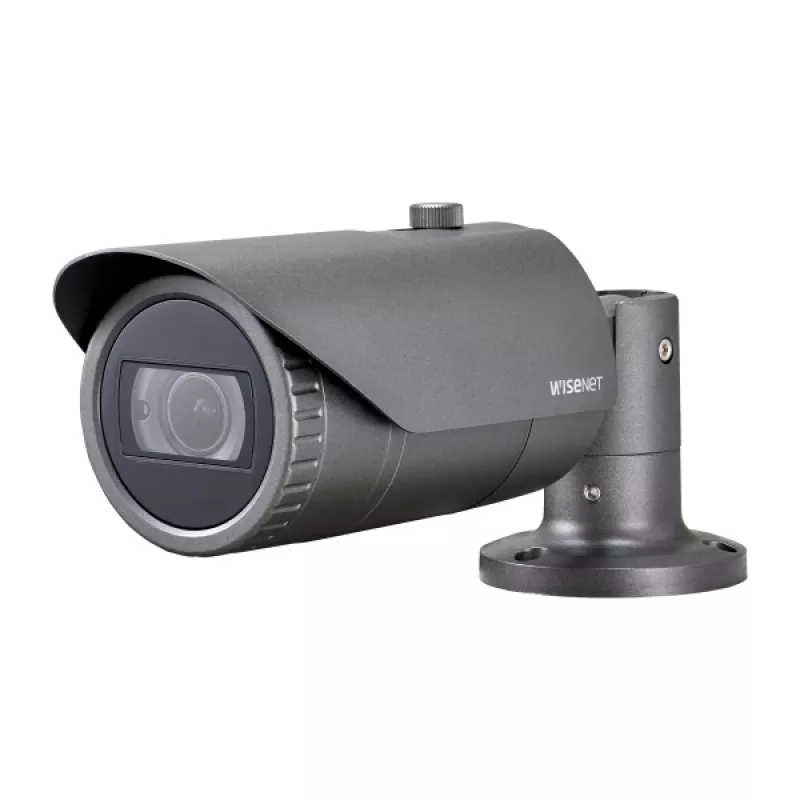

IP security camera Hanwha QNO-7082R Outdoor 2560 x 1440 pixels

The Hanwha QNO-7082R Outdoor IP security camera delivers 2560 x 1440 pixel resolution from a CMOS sensor combined with a 3.1x optical zoom, providing detailed images for perimeter and area monitoring. Designed for outdoor placement, the camera supports ceiling or wall mounting and wired Ethernet connectivity. With a horizontal viewing angle of 98.6° and a stated detection distance of 27 meters, the device is intended for reliable video capture across large open spaces and entry points.

Advantages

The camera provides high-resolution 2K imaging and optical zoom to preserve detail at distance while maintaining stable wired network connectivity for continuous recording. Its outdoor-ready design and support for both ceiling and wall installation make it adaptable to different mounting environments. Integrated video motion detection assists in reducing false alarms and focusing recording on relevant events.

Suitable for

• Perimeter and parking lot surveillance
• Building entrances and exits monitoring
• Outdoor walkways and common areas
• Commercial and small industrial sites requiring wired IP cameras

Key specifications

• Image sensor: CMOS
• Resolution: 2560 x 1440 pixels (2K)
• Optical zoom: 3.1x
• Frame rate: up to 30 fps
• Horizontal viewing angle: 98.6°
• Detection range: up to 27 m
• Mounting options: ceiling or wall
• Connectivity: wired Ethernet (no Wi‑Fi)
• Environmental placement: outdoor use
• Color: grey
• Weight: approximately 0.9 kg

How to use

Mount the camera on a suitable ceiling or wall surface using appropriate anchors for the installation substrate, ensuring the camera housing is oriented to cover the intended scene. Connect the device to a PoE-capable Ethernet switch or to a compatible power and network source following Hanwha installation guidelines. Configure resolution and frame rate settings on the recorder or camera web interface to 2560 x 1440 at up to 30 fps for optimal balance of image detail and bandwidth. Activate video motion detection and set detection zones and sensitivity according to the monitored area's traffic patterns. Verify night or low-light performance and adjust tilt and zoom to achieve the required field of view and identification distance.

Recommendations

For consistent performance, use shielded outdoor-rated Ethernet cabling and weatherproof junctions. Position the camera to avoid direct exposure to strong backlight or reflective surfaces, and schedule periodic lens cleaning and firmware updates to maintain image quality and security. When integrating with a recording system, configure retention and overwrite policies to match storage capacity and compliance needs.
