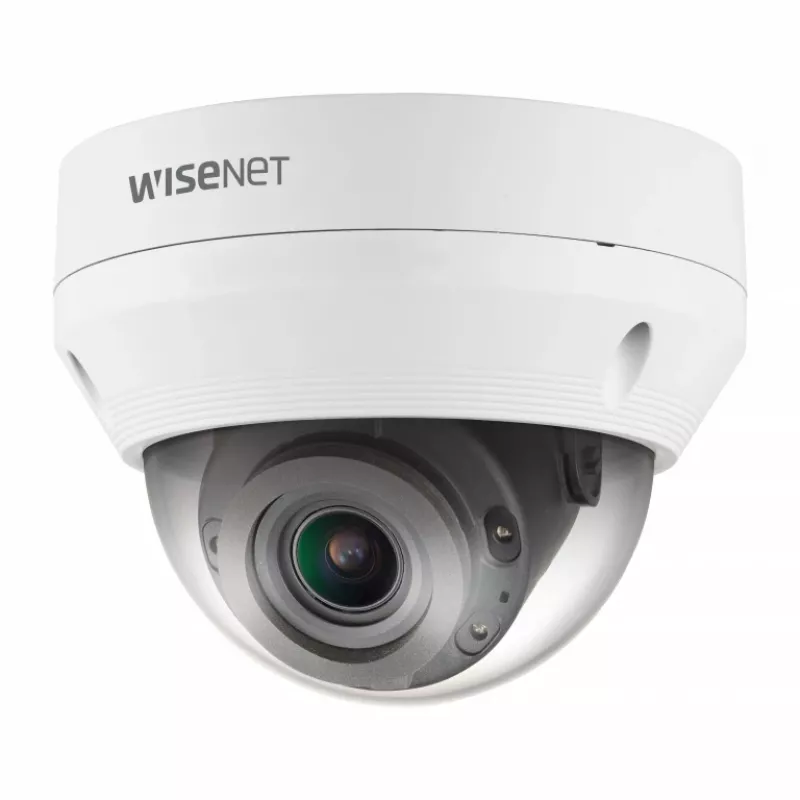

HANWHA Ir Vandal Dome Camera - Qnv-7082r - 4mpix H.265

The Hanwha QNV-7082R Dome 2560 x 1440 is an outdoor IP security camera designed for ceiling mounting. It captures video at a resolution of 2560 x 1440 pixels using a CMOS sensor and a fixed 3.2 mm focal length lens. The camera offers a horizontal viewing angle of 98.6° and a rotation capability up to 350°, enabling wide coverage of outdoor areas. Designed for wired Ethernet connectivity, the white dome housing is built for mounted surveillance in public and private outdoor spaces.

Advantages

The QNV-7082R delivers high-definition 2560 x 1440 imaging combined with a wide horizontal field of view to improve scene detail and situational awareness. The 350° rotation provides near-panoramic coverage without requiring multiple fixed cameras. Wired Ethernet connectivity ensures stable network performance for continuous recording and remote access. The compact, white dome form factor supports ceiling installation and blends into many outdoor architectural environments.

Suitable for

• Perimeter and entrance surveillance at commercial properties
• Monitoring of parking areas and driveways
• Outdoor common areas in residential complexes
• Public spaces such as plazas, walkways, and building facades

Key specifications

• Image sensor type: CMOS
• Maximum resolution: 2560 x 1440 pixels
• Lens focal length: fixed 3.2 mm
• Horizontal viewing angle: 98.6°
• Rotation range: up to 350°
• Frame rate: up to 30 fps
• Placement: outdoor
• Mounting type: ceiling
• Connectivity: wired Ethernet LAN
• Colour: white
• Weight: 0.71 kg

How to use

Mount the dome securely on a ceiling or overhang using appropriate outdoor-rated fasteners and ensure the camera is positioned to cover the intended scene. Connect the camera to the wired Ethernet network and provide power according to your site’s PoE or power supply setup. Configure basic settings such as resolution, frame rate (up to 30 fps), motion detection areas, and rotation limits via the camera’s web interface or your network video recorder. Adjust the field of view and rotation start/stop points to avoid obstructions and to optimise coverage of critical areas.

Recommendations

For reliable outdoor operation, install the camera under a sheltered overhang when possible, route and seal network and power cables against moisture, and schedule periodic checks for lens cleanliness and secure mounting. Use wired Ethernet for stable video transmission and configure motion detection thresholds to reduce false alarms from environmental movement.
