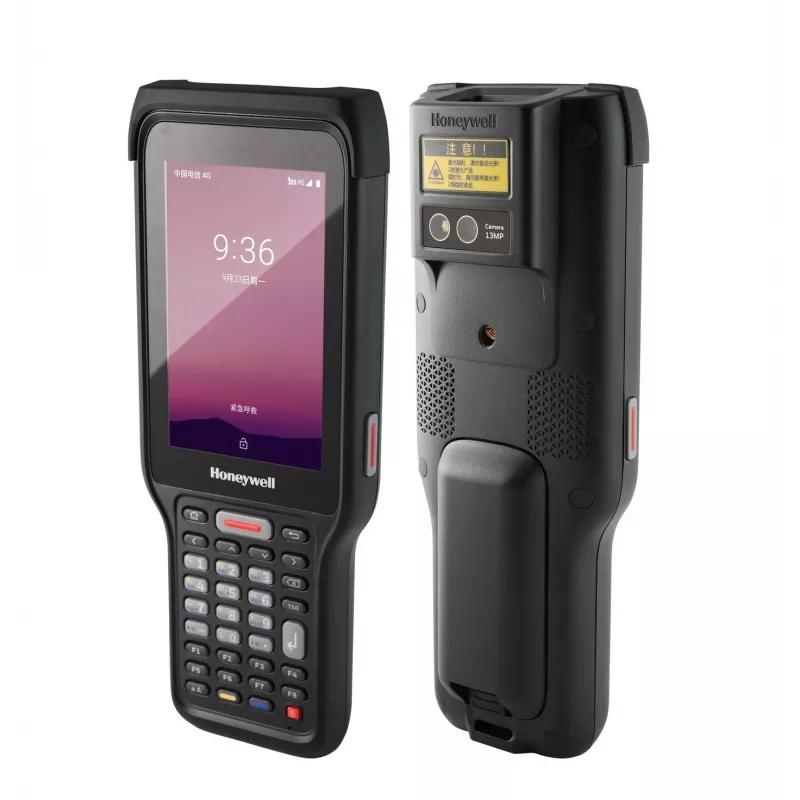

Handheld mobile computer Honeywell ScanPal EDA61K

The Honeywell ScanPal EDA61K is a rugged handheld mobile computer with a 4" touchscreen (800 x 480) designed for indoor and outdoor warehouse, distribution center and retail backroom workflows. It combines a Qualcomm 1.8 GHz octa-core processor, 3 GB RAM and 32 GB flash (expandable via MicroSDHC) to provide responsive performance for scanning, data entry and real‑time access to business information while weighing approximately 0.435 kg.

Advantages

Durable, ergonomically balanced construction and a lightweight design reduce user fatigue during extended use. Fast data access is enabled by the Qualcomm 1.8 GHz chipset, sufficient memory and dual-band 802.11 a/b/g/n/ac Wi‑Fi. Accurate, high-speed data capture is supported by Honeywell slim N6703 and EX20 long-range imagers plus a 13 MP autofocus camera. A 7,000 mAh hot‑swappable lithium‑ion smart battery provides continuous operation for more than two full shifts (up to 25 hours on a single charge), and the device offers Bluetooth 4.2 and cellular support in most regions for reliable connectivity.

Suitable for

• Warehouse receiving and putaway
• Inventory counts and cycle counting
• Order picking and packing
• Retail backroom stock management
• Distribution center scanning and tracking

Key specifications

• Display: 4" touchscreen, 800 x 480
• Processor: Qualcomm 1.8 GHz octa‑core
• Memory: 3 GB RAM, 32 GB flash (MicroSDHC expandable)
• Battery: 7,000 mAh hot‑swappable lithium‑ion, ~25 hours runtime
• Connectivity: Wi‑Fi 802.11 a/b/g/n/ac, Bluetooth 4.2, cellular support
• Scanner options: Honeywell N6703 slim imager and EX20 long‑range imager
• Camera: 13 MP autofocus
• Operating system: Android
• Weight: ~0.435 kg
• Color: Black

How to use

Power on the ScanPal EDA61K and connect it to the enterprise Wi‑Fi or cellular network using the device settings. Insert a MicroSDHC card if additional storage is required. Use the touchscreen and physical keys to open the required warehouse or retail applications, then scan barcodes with the integrated imager or capture images with the 13 MP camera. Replace the battery during operations if needed using the hot‑swappable battery pack to avoid downtime. Follow your IT procedures to enroll the device in mobile device management and to configure security and network profiles.

Recommendations

Use compatible Honeywell scanning accessories and approved charging cradles for overnight charging. Maintain firmware and application updates via your IT system to ensure device security and performance. For long shifts, carry a charged spare hot‑swappable battery to minimize operational interruptions.
