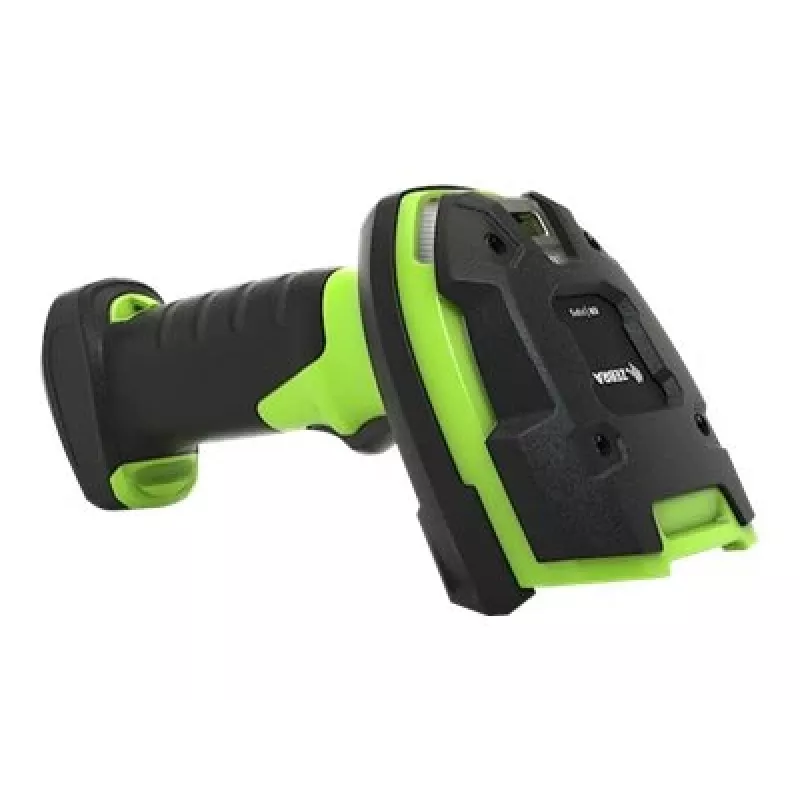

Handheld 1D barcode reader Zebra LI3608 — wired RS-232/USB/keyboard wedge, IP65/IP67, 4.5–12.6V, 327g

The Zebra LI3608 is a wired handheld 1D barcode reader built for demanding warehouse, manufacturing and shipping environments. Supporting RS-232, USB and keyboard wedge interfaces, this model captures linear barcodes from as close as 2 in. (5.1 cm) up to 56 ft. (17.1 m). The scanner is dust- and water-resistant (IP65/IP67), operates from 4.5–12.6 V DC, transfers data up to 3 Mbit/s and weighs 327 g, delivering durable high-performance 1D scanning for extended-range applications.

Advantages

The LI3608 offers extended-range 1D barcode capture with reliable first-pass reads thanks to a crisp aiming pattern and versatile feedback modes (visual, audible and haptic). Its ultra-rugged design withstands harsh industrial conditions, including freezer temperatures, and provides simplified network integration through Zebra’s automation connectivity. Multiple wired interfaces and broad linear barcode support make it compatible with common host systems and workflows.

Suitable for

• Warehouse rack scanning (high and low) and inventory pick/put operations
• Manufacturing line tracking and part identification
• Shipping and receiving where long-range 1D capture is required
• Harsh or wet environments requiring IP65/IP67-rated devices

Key specifications

• Scanner type: 1D handheld
• Working distance: up to 17,100 mm (56 ft / 17.1 m)
• Interfaces: RS-232, USB, keyboard wedge
• Supported 1D symbologies: Code 39, Code 128, GS1 DataBar (omni, expanded), Codabar, Plessey, MSI, Code 93, Code 11, U.P.C.
• Power: 4.5–12.6 V DC
• Data transfer: up to 3 Mbit/s
• Ingress protection: IP65/IP67
• Weight: 327 g
• Colour: Black, Green

How to use

Connect the LI3608 to your host using the required wired interface (RS-232, USB or keyboard wedge) and configure communication settings on the host if necessary. Aim the scanner at the linear barcode using the aiming pattern; position within the specified working distance for the barcode size and density. Trigger a scan using the handset trigger; verify successful reads via the selected feedback mode (LED, beeper or vibration). Follow your host application prompts to ensure data is received correctly.

Recommendations

For optimal long-range performance, use appropriate barcode sizes and print quality for the intended scan distance, keep the scan window clean, and select the most suitable interface and host settings for reliable data capture in your workflow.
