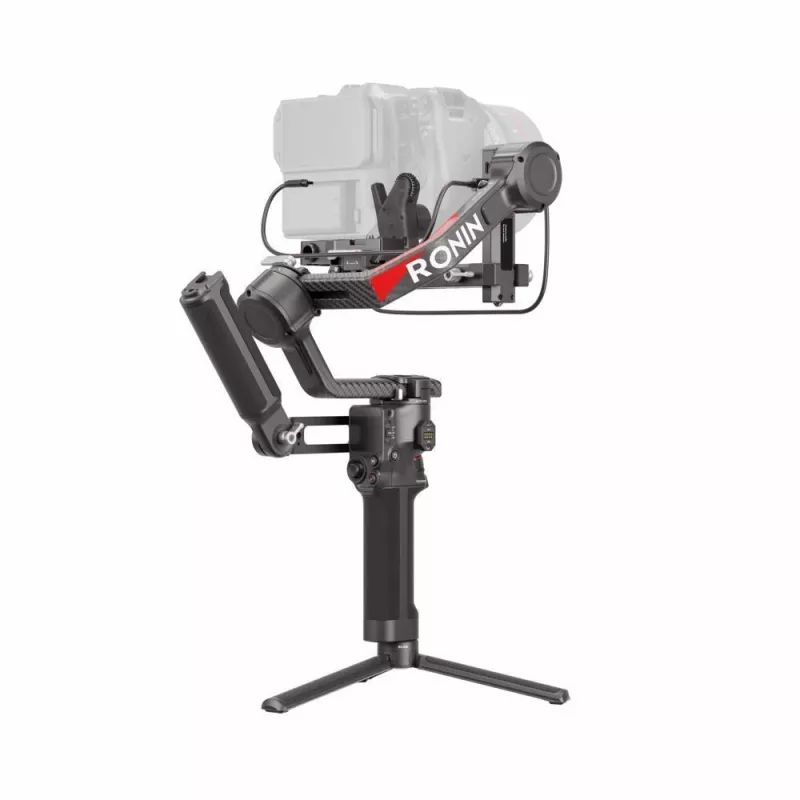

Hand camera stabilizer DJI RS 4 Pro Black Carbon fibre 360° pan

The DJI RS 4 Pro hand camera stabilizer in black carbon fibre is a compact, high-capacity gimbal for mirrorless and cinema cameras. Weighing 1.224 kg, it offers a 360° controllable pan, wide tilt and roll ranges, and an extended operating time up to 13 hours on its internal 1950 mAh Li‑Po battery. Designed for professional handheld use, the RS 4 Pro supports advanced autofocus, dual motor control and expanded power options for long shoots.

Advantages

The redesigned gimbal horizontal plate allows native vertical shooting without extra accessories. Using the RS BG70 high-capacity battery grip extends runtime up to 29 hours and enables different handheld configurations via the RS SDK protocol. The gimbal supports two Focus Pro motors for simultaneous focus and zoom control and integrates with the Focus Pro Hand Unit and High‑Bright Remote Monitor for refined remote operation. LiDAR focusing delivers up to 76,800 ranging points within 20 m for improved autofocus and moving-subject tracking with ActiveTrack Pro. A 4.5 kg payload capacity, carbon fibre axis arms and a 20% increase in motor torque provide compatibility with mainstream mirrorless and cinema camera + lens setups while improving power redundancy once balanced.

Suitable for

• Handheld filmmaking with mirrorless and cinema cameras
• Vertical video capture for social media and mobile formats
• Long-duration shoots requiring extended battery runtime
• Remote focus and zoom control in multi-operator productions
• Tracking moving subjects with LiDAR-assisted autofocus

Key specifications

• Weight: 1.224 kg
• Material: Carbon fibre
• Product colour: Black
• Pan range: 0–360° controllable
• Tilt range: -112° to 214°
• Roll range: -95° to 240°
• Battery: 1950 mAh Li‑Po (internal), up to 13 hours runtime; up to 29 hours with RS BG70 grip
• Payload capacity: 4.5 kg
• LiDAR range points: up to 76,800 within 20 m
• Supports dual Focus Pro motors and remote control accessories

How to use

Balance the camera and lens on the gimbal following the supplied balancing steps before powering on. For vertical shooting, use the redesigned horizontal plate to rotate the camera into portrait orientation without additional accessories. Install one or two Focus Pro motors if remote focus and zoom control are required, and pair the Focus Pro Hand Unit or High‑Bright Remote Monitor for remote operation. For extended runtime, attach the RS BG70 battery grip and follow the RS SDK configuration if using custom handheld setups. Enable ActiveTrack Pro with LiDAR when tracking moving subjects for improved autofocus performance.

Recommendations

Use carbon-fibre arms and proper balancing to ensure motor efficiency; avoid exceeding the 4.5 kg payload. For reliable LiDAR performance, keep the LiDAR sensor unobstructed and within the recommended 20 m range. When using remote accessories, confirm firmware compatibility and cable connections such as the Focus Pro LiDAR to DJI Transmission Cable Hub for simultaneous LiDAR and video transmission.
