Hammer Gedore 1936557 Wood Handle Depth 232 mm Height 85 mm

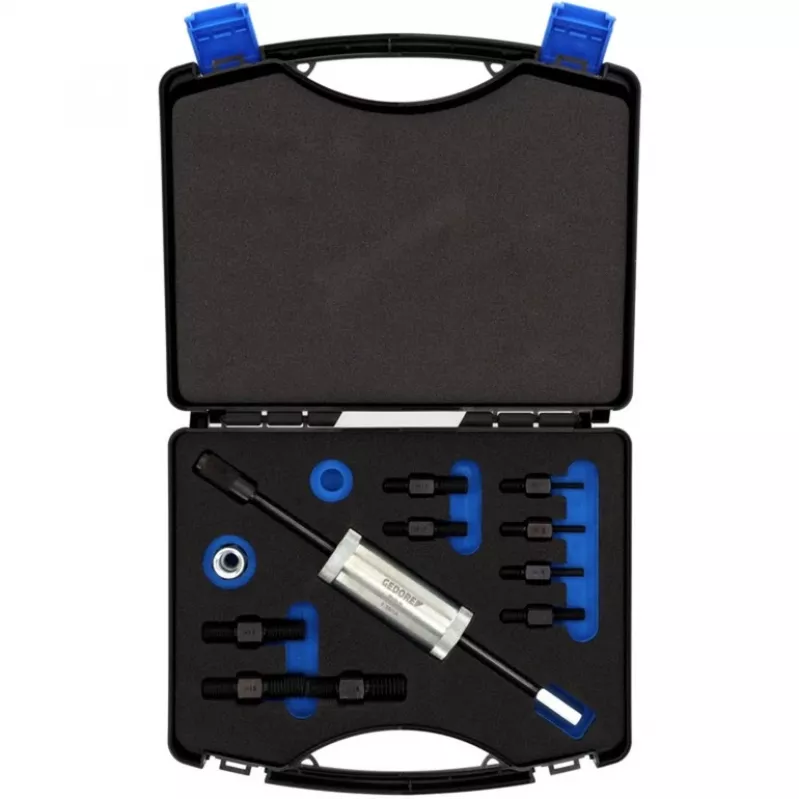

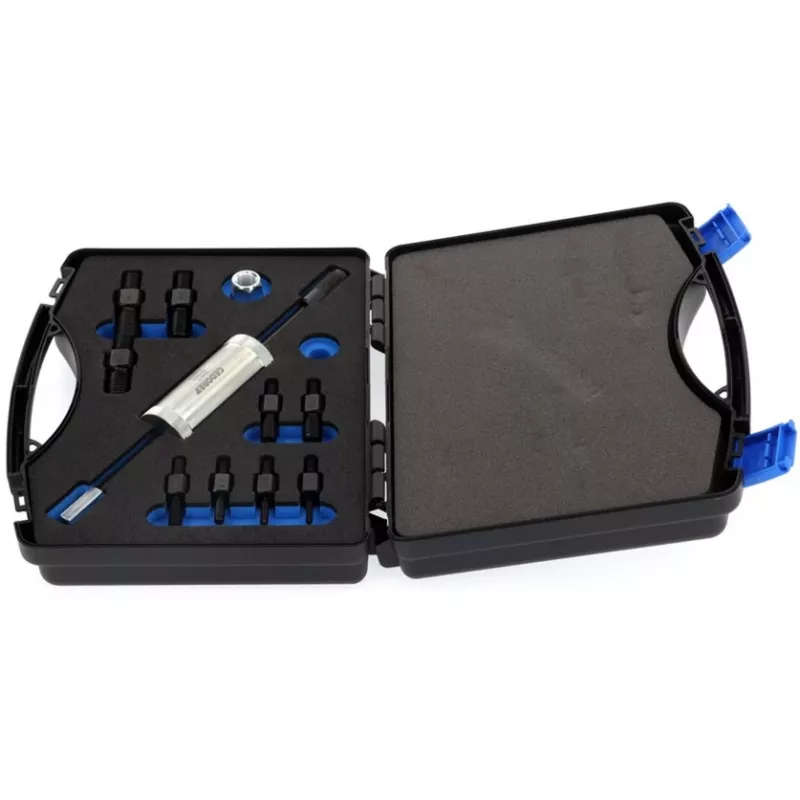

The Gedore 1936557 hammer with wooden handle is part of a sliding-hammer set intended for removal of threaded inserts and threaded caps that have a single threaded hole. The set version 1.81/K-12 includes a sliding hammer (type 1.35/1A), a 230 mm rod, an impact weight of 700 g and an M14x1.5 adaptor; the tool is supplied in a robust plastic case measuring 275 x 229 x 83 mm.

Advantages

This sliding-hammer configuration combines a solid wooden handle with a high-impact 700 g weight and a 230 mm rod to deliver controlled extraction force for threaded components. The included M14x1.5 adaptor increases compatibility with common thread sizes, and the plastic carrying case keeps components organized and protected during storage and transport.

Suitable for

• Removing threaded inserts and threaded caps with one threaded hole
• Automotive and machinery maintenance where threaded parts must be extracted
• Workshop use requiring portable extraction tools

Key specifications

• Brand: Gedore
• MPN: 1.81/K-12
• EAN: 4036976121568
• Sliding hammer type: 1.35/1A
• Rod length: 230 mm
• Impact weight: 700 g
• Adaptor: M14x1.5
• Case dimensions: 275 x 229 x 83 mm

How to use

Screw the appropriate adaptor or thread-mating component into the threaded insert or cap. Attach the rod to the sliding-hammer assembly so the impact weight can travel along the rod. Position the assembly so axial force is applied to the threaded component, then slide the hammer weight sharply along the rod toward the head to extract the insert or cap. Repeat as necessary until removal is complete. Ensure the correct thread engagement before applying impact force.

Recommendations

Use suitable eye protection and work gloves. Verify thread compatibility with the M14x1.5 adaptor before use. Avoid applying excessive lateral force; keep impacts axial to prevent damage to the component and tool.
