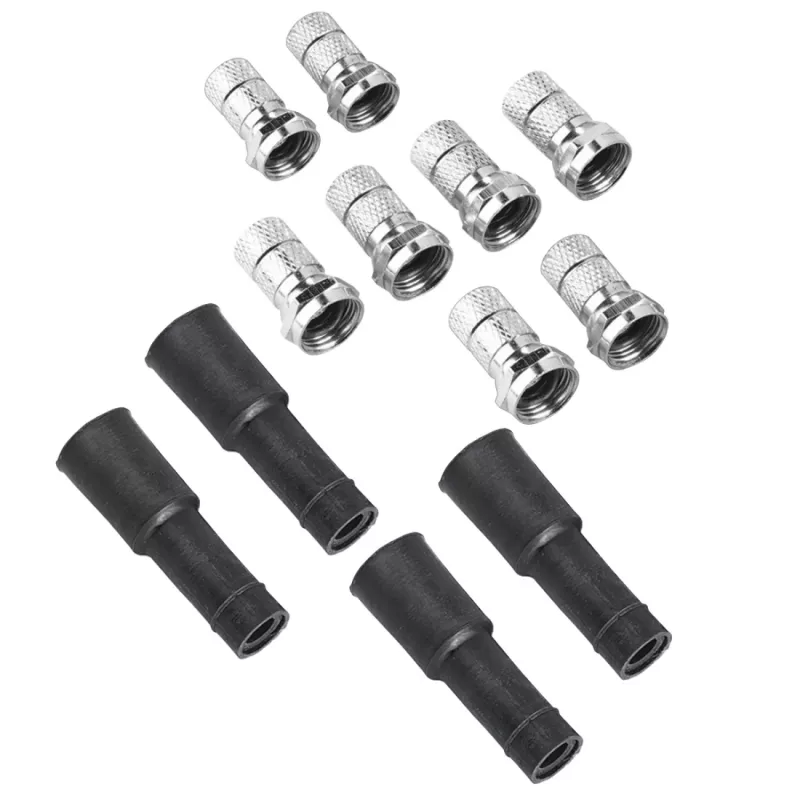

Hama Quad / Quadswitch-LNB coaxial connector F-type 12 pc(s)

The Hama Quad Quadswitch-LNB coaxial connector F-type 12 pcs is a set of twelve F-type male coaxial connectors designed for satellite system connections. Supplied in a compact pack, these connectors are intended for creating reliable F-type terminations on coaxial cables used with quad LNBs and multiswitch arrangements. The product name and pack quantity are reflected in the set composition, providing a simple way to obtain multiple identical connectors for installation and maintenance tasks.

Advantages

These F-type connectors offer a consistent connection interface for satellite cabling, enabling secure mating with F-type female sockets on LNBs, multiswitches and wall plates. The 12-piece pack reduces the need to source individual connectors separately and supports simultaneous work on multiple cables. Manufactured by HAMA, the connectors are intended for straightforward cable termination and repeatable electrical contact when properly installed.

Suitable for

Key specifications

How to use

Prepare the coaxial cable by stripping the outer jacket, braid and dielectric to the appropriate lengths for the chosen F-type connector design. Slide the connector onto the cable end and secure according to the connector’s fastening method (screw-on or crimping) using suitable tools. After installation, check for a firm mechanical fit and verify signal continuity with appropriate testing equipment. Use the connectors on F-type female ports of quad LNBs, multiswitches or wall outlets as required.

Recommendations

Ensure cable preparation follows good-practice dimensions for the connector type and test each connection after installation. Store unused connectors in a dry environment to prevent contamination or corrosion of contacts. For best performance, use connectors and cables that match in impedance and are installed with the correct tools to avoid signal loss.
