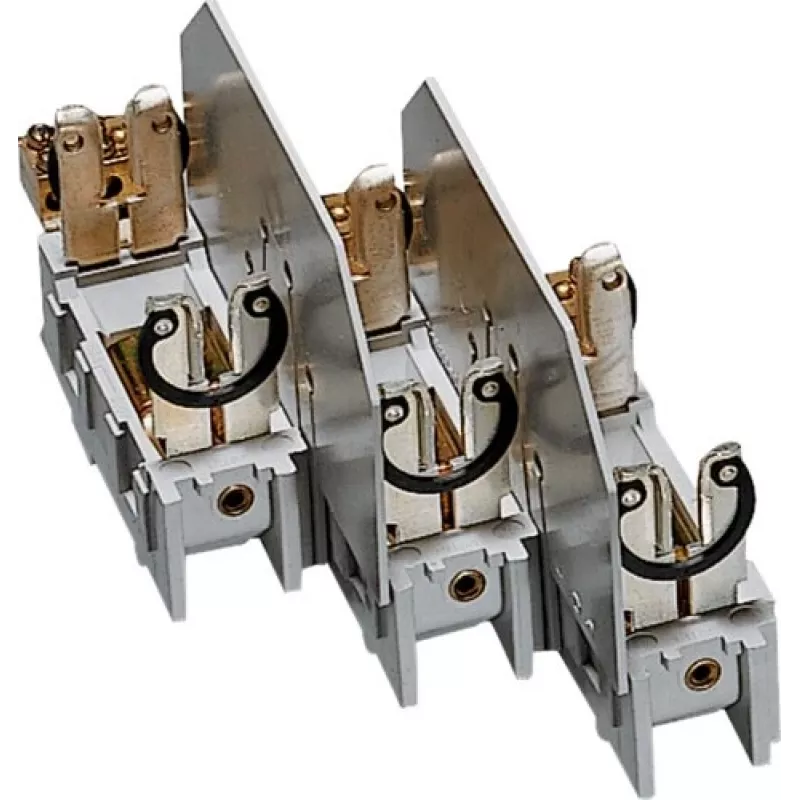

Hager NH00 Fuse Base 3-Pole 160A 690V AC L00R

Electricians and panel builders use the Hager L00R NH fuse base in low-voltage distribution boards to hold three NH00 fuse links. It is a three-pole base rated for 160 A and 690 V AC, with screw terminals for conductors up to 50 mm². The base mounts on a plate or busbar and has no fuse monitoring or cover.

Key specifications

• Fuse system: NH (Niederspannungs-Hochleistungssicherung)
• Fuse size: NH00
• Number of poles: 3
• Rated current: 160 A
• Rated voltage: 690 V AC
• Mounting: screw mounting on plate or busbar
• Connection: screw terminals, up to 50 mm²
• Material: ceramic / thermoplastic base, copper / brass contacts
• Degree of protection: IP20 (terminal area, when installed)
• Standard: IEC 60269-2
• Operating temperature: -5°C to +40°C
• Fuse monitoring: without indicator
• Cover: without cover (base only)

Why choose it

The L00R provides a reliable connection point for NH00 fuse links in three-phase circuits. Its ceramic and thermoplastic construction withstands the thermal stresses of high current, and the screw terminals accept large conductors for secure wiring.

Ideal use cases

• Industrial control panels
• Low-voltage main distribution boards
• Motor protection circuits
• Busbar systems

Good to know

Install the base in any orientation. The IP20 rating applies only to the terminal area when installed; the fuse contacts remain accessible. No fuse links or covers are included.
