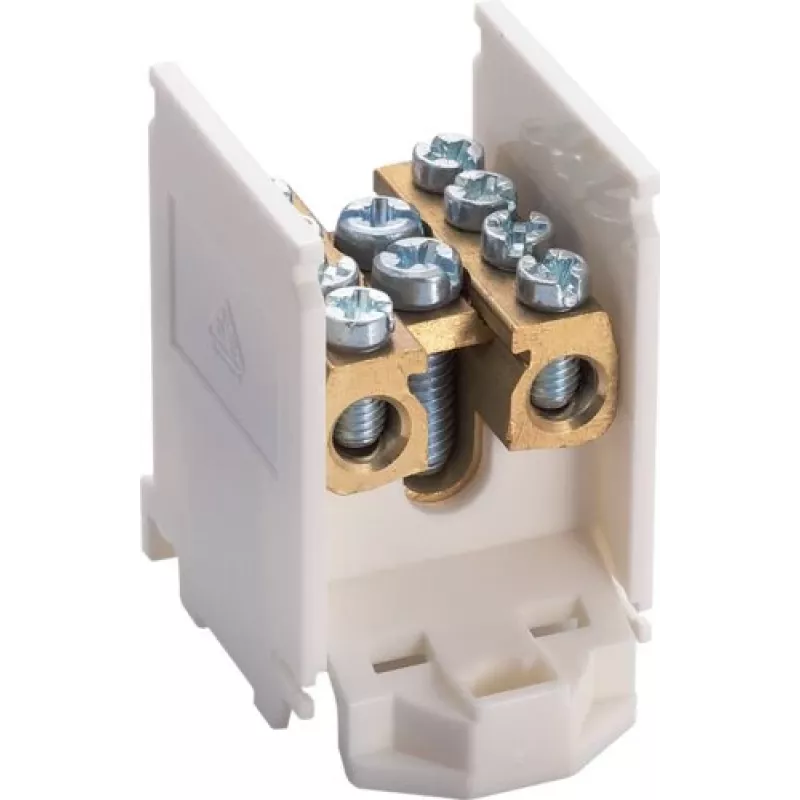

HAGER Main Line Terminal K03SN 1-Pole 1x25/4x16 mm² Grey

HAGER Main Line Terminal K03SN 1-Pole 1x25/4x16 mm² Grey
HAGER Main Line Terminal K03SN 1-Pole 1x25/4x16 mm² Grey
R517
Rated for 100 A and 400 V, this HAGER main line terminal handles a 25 mm² main conductor and four 16 mm² branch conductors in a single-pole configuration.OverviewThe K03SN is a screw-connection terminal block for main line distribution applications. It mounts on a DIN rail (TS 35) or by screw, and i... Read More
Stock 24 Code 3529952 Brand HAGER Model K03SN Warranty 2 Years

Shipping & Returns

Estimated delivery Wednesday, October 7
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

Rated for 100 A and 400 V, this HAGER main line terminal handles a 25 mm² main conductor and four 16 mm² branch conductors in a single-pole configuration.

Overview

The K03SN is a screw-connection terminal block for main line distribution applications. It mounts on a DIN rail (TS 35) or by screw, and is made of grey polyamide (PA). It accepts solid, stranded, and fine-stranded conductors with ferrule, with a stripping length of 14 mm and a tightening torque of 2.5 Nm.

What stands out

  • High current rating: 100 A
  • Supports large conductor cross-sections: 1 x 25 mm² main, 4 x 16 mm² branch
  • Flexible mounting: DIN rail or screw
  • Operating temperature range: -25 °C to +100 °C

Technical details

  • Number of poles: 1
  • Rated voltage: 400 V
  • Rated current: 100 A
  • Connection type: screw
  • Insulation material: polyamide (PA)
  • Colour: grey
  • Degree of protection: IP20
  • Rated impulse voltage: 4 kV
  • Stripping length: 14 mm
  • Tightening torque: 2.5 Nm
  • Operating temperature: -25 °C to +100 °C
  • Conductor compatibility: solid, stranded, fine-stranded with ferrule
  • Approvals: VDE

Our verdict

A robust main line terminal for demanding electrical installations, offering high current capacity and versatile mounting options.

Specifications
Brand
HAGER
Category
Distribution Board Accessory
Certification
VDE
Compliance industry standards
IEC
EAN
4010330711008
Material
Polyamide (PA)
Model
K03SN
MPN
K03SN
Product colour
Grey
Type
Main Line Terminal
Weight
1 kg
