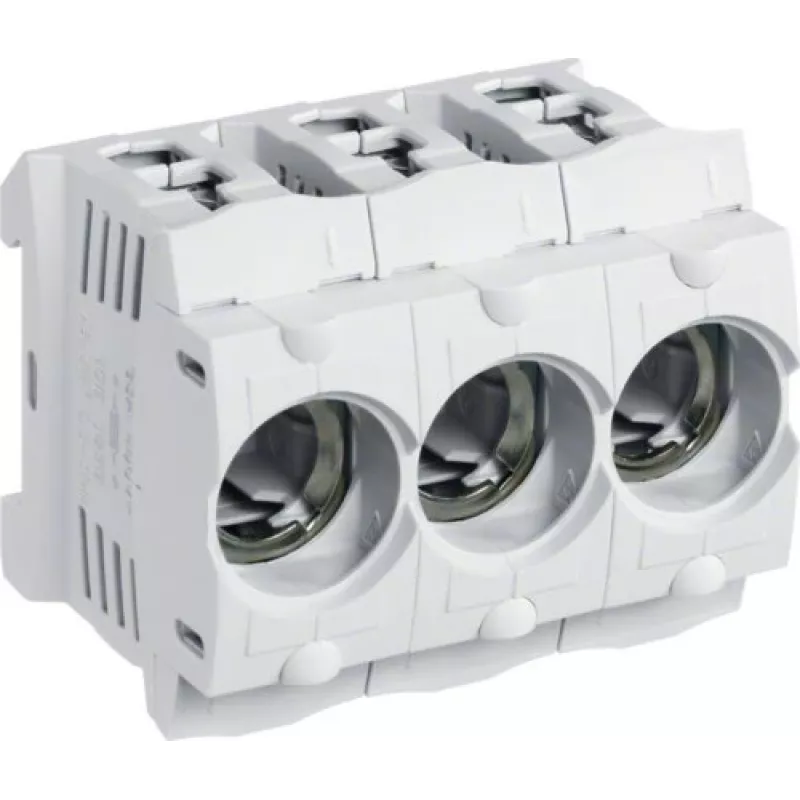

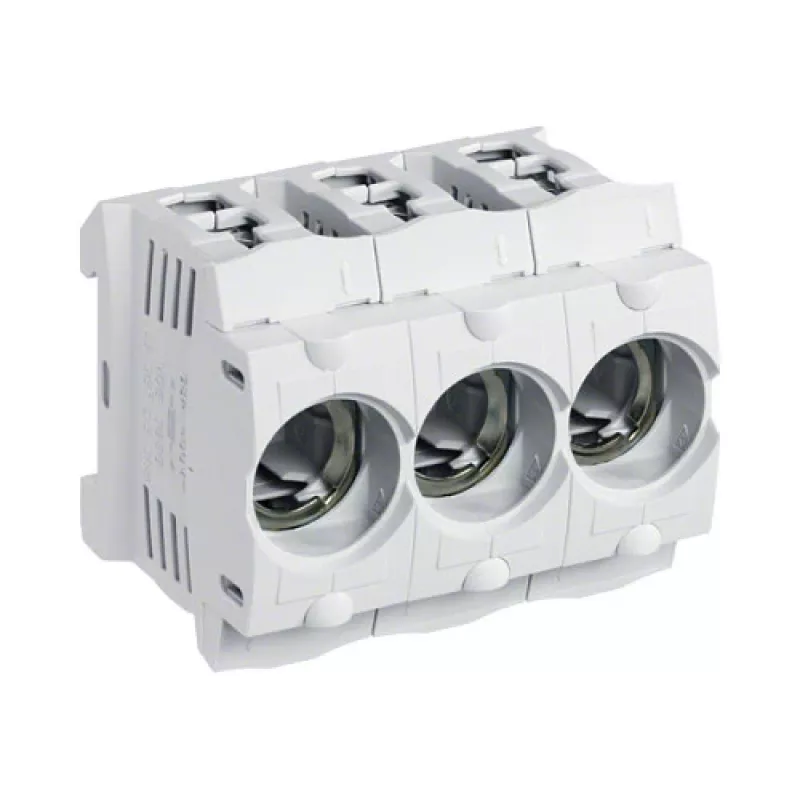

Hager LD047 D01 3-Pole 16A E14 Fuse Base for DIN Rail, Frame Terminal

Hager LD047 D01 3-Pole 16A E14 Fuse Base for DIN Rail, Frame Terminal
Hager LD047 D01 3-Pole 16A E14 Fuse Base for DIN Rail, Frame Terminal
Hager LD047 D01 3-Pole 16A E14 Fuse Base for DIN Rail, Frame Terminal
Hager LD047 D01 3-Pole 16A E14 Fuse Base for DIN Rail, Frame Terminal
R570
The Hager LD047 stands out as a three-pole D01 fuse base built for DIN rail mounting, combining a compact 3-module width with a 16 A rating and E14 fuse cap compatibility. Its frame terminal connection accepts rigid conductors up to 16 mm² and flexible conductors up to 10 mm², making it a practical ... Read More
Stock 42 Code 3529269 Brand HAGER Model LD047 Warranty 2 Years

Shipping & Returns

Estimated delivery Tuesday, October 6
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

The Hager LD047 stands out as a three-pole D01 fuse base built for DIN rail mounting, combining a compact 3-module width with a 16 A rating and E14 fuse cap compatibility. Its frame terminal connection accepts rigid conductors up to 16 mm² and flexible conductors up to 10 mm², making it a practical choice for distribution boards where space and reliable connections matter.

Highlights

  • 3-pole D01 fuse base rated at 16 A
  • E14 fuse cap size for standard D01 fuse links
  • DIN rail mounting (EN 60715) with 3 TE module width
  • Frame terminal connection for rigid and flexible conductors
  • Plastic housing in grey

Full specifications

  • Rated voltage: 400 V AC / 250 V DC
  • Conductor cross-section: 1.5–16 mm² rigid, 1.5–10 mm² flexible
  • Degree of protection: IP20
  • Operating temperature: -5 to 40 °C
  • Storage temperature: -25 to 70 °C
  • Short-circuit breaking capacity: 50 kA
  • Standards: IEC/EN 60269-1, VDE 0636

Final note

A reliable three-pole fuse base for D01 fuse links, designed for straightforward DIN rail installation and secure frame terminal wiring.

Specifications
AC input voltage
400 V AC / 250 V DC
Brand
Hager
Brand compatibility
Hager
Category
Fuse Base
Compatibility
D01 fuse links
Dimensions (WxDxH)
79 x 56 x 72 mm
EAN
3250614040023
Harmonized System (HS) code
8536.30.00
Model
LD047
MPN
LD047
OEM code
LD047
Package depth
79 mm
Package height
56 mm
Package weight
0.12 kg
Package width
72 mm
Quantity per pack
1
Weight
0.15 kg
