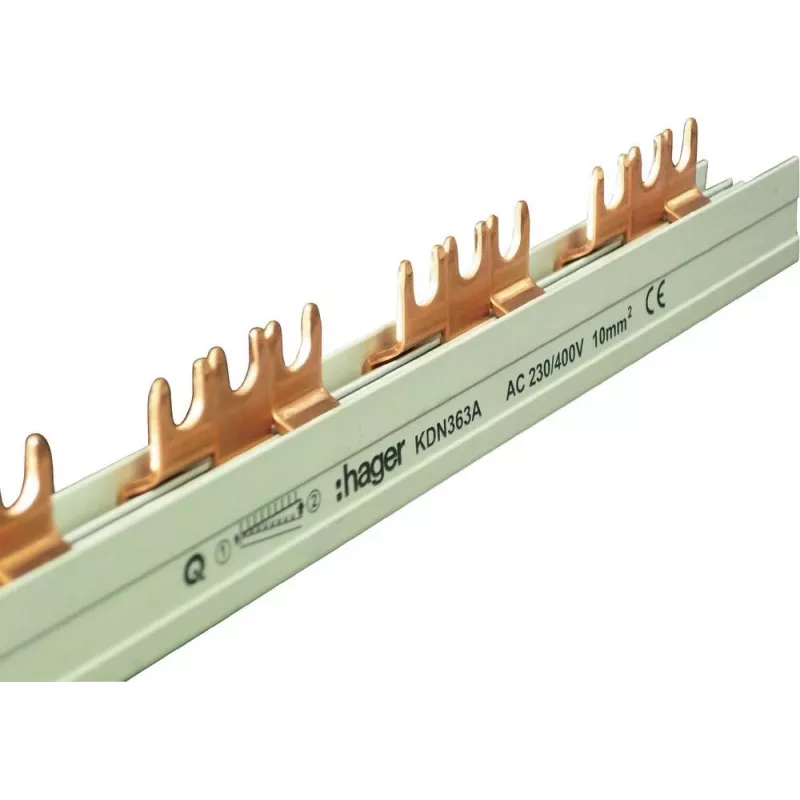

Hager KDN363A 3-Pole Phase Busbar, Fork Connection, 10 mm², 63 A, 12 Modules

Hager KDN363A 3-Pole Phase Busbar, Fork Connection, 10 mm², 63 A, 12 Modules
Hager KDN363A 3-Pole Phase Busbar, Fork Connection, 10 mm², 63 A, 12 Modules
R721
Phase busbar for power distribution in modular electrical installations, delivering 63 A across 12 modules with a 3-pole configuration. The fork connection design ensures quick and secure attachment to circuit breakers and residual current devices.AdvantagesElectrolytic copper conductors provide exc... Read More
Stock 10 Code 3529105 Brand HAGER Model KDN363A Warranty 2 Years

Shipping & Returns

Estimated delivery Tuesday, October 6
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

Phase busbar for power distribution in modular electrical installations, delivering 63 A across 12 modules with a 3-pole configuration. The fork connection design ensures quick and secure attachment to circuit breakers and residual current devices.

Advantages

Electrolytic copper conductors provide excellent conductivity, while the self-extinguishing insulation enhances safety. The compact 18 mm pitch aligns with standard DIN rail devices for efficient space utilization.

Suitable for

  • Distribution boards with modular devices
  • Circuit breaker and RCD supply
  • Three-phase power distribution

Key specifications

  • Rated current: 63 A
  • Conductor cross-section: 10 mm²
  • Connection type: Fork
  • Number of modules: 12
  • Rated voltage: 230/400 V AC
  • Insulation voltage: 500 V
  • Short-circuit current rating: 25 kA
  • Conductor material: Electrolytic copper
  • Insulation material: Self-extinguishing plastic
  • Colour: Grey
  • Operating temperature: -25 to +70 °C
  • Storage temperature: -40 to +80 °C

Recommendations

Install within an enclosure to achieve IP20 protection. Ensure proper torque on fork connections to maintain reliable contact.

Specifications
Brand
Hager
Category
Phase Busbar
EAN
3250613740924
Maximum current
63 A
Model
KDN363A
MPN
KDN363A
Operating temperature (T-T)
-25 - 70 °C
Product colour
Grey
Type
Phase Busbar
Weight
0.15 kg
