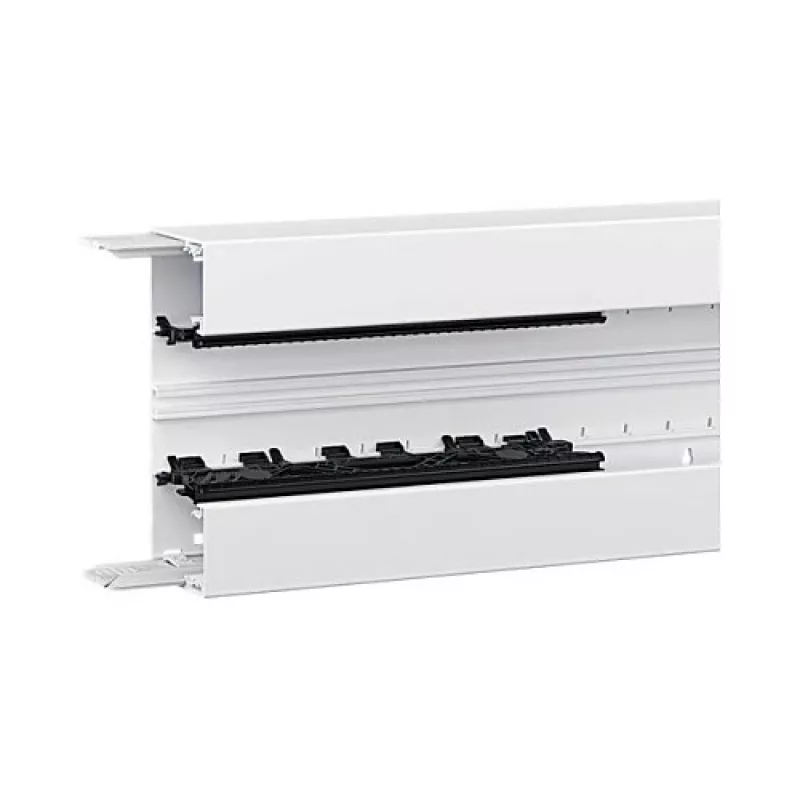

Hager BRN6517019016 Dado Trunking Lower Part Profile Device Installation BRN 65x170mm - 2 m White

The Hager BRN6517019016 is a high-quality dado trunking lower part profile designed for professional device installation in commercial and industrial environments. Part of the Hager BRN series, this trunking provides a robust and flexible cable management solution with a sleek white finish (RAL 9010).

Advantages

Made from durable PVC, this trunking is self-extinguishing and offers impact resistance IK07, ensuring long-lasting performance. Its 2-meter length and 65x170mm dimensions allow for ample cable capacity, while the two-compartment system (with optional divider) enables separation of power and data cables. Easy wall mounting and device installation capability make it ideal for efficient on-site setup.

Suitable for

• Commercial offices requiring organized cable routing
• Industrial workstations with multiple devices
• Retail spaces needing discreet cable management
• Educational institutions for safe power and data distribution

Key specifications

• Product Type: Dado Trunking Lower Part
• Material: PVC (Polyvinyl Chloride)
• Colour: Pure White (RAL 9010)
• Height: 65 mm
• Width: 170 mm
• Length: 2000 mm
• Number of Compartments: 2 (with optional divider)
• Mounting Type: Wall Mounting
• Device Installation Capability: Yes
• Halogen-free: No
• Self-extinguishing: Yes
• Protection Class (IP): IP20
• Impact Resistance (IK): IK07
• Glow-wire Test: 850 °C (EN 60695-2-11)
• Surface Finish: Untreated
• System Compatibility: Hager BRN Series
• Required Accessories: Separate cover and dividers (not included)

Recommendations

For a complete installation, pair this lower part with the appropriate Hager BRN cover and optional dividers. Ensure proper wall mounting using suitable fixings. Always follow local electrical regulations.
