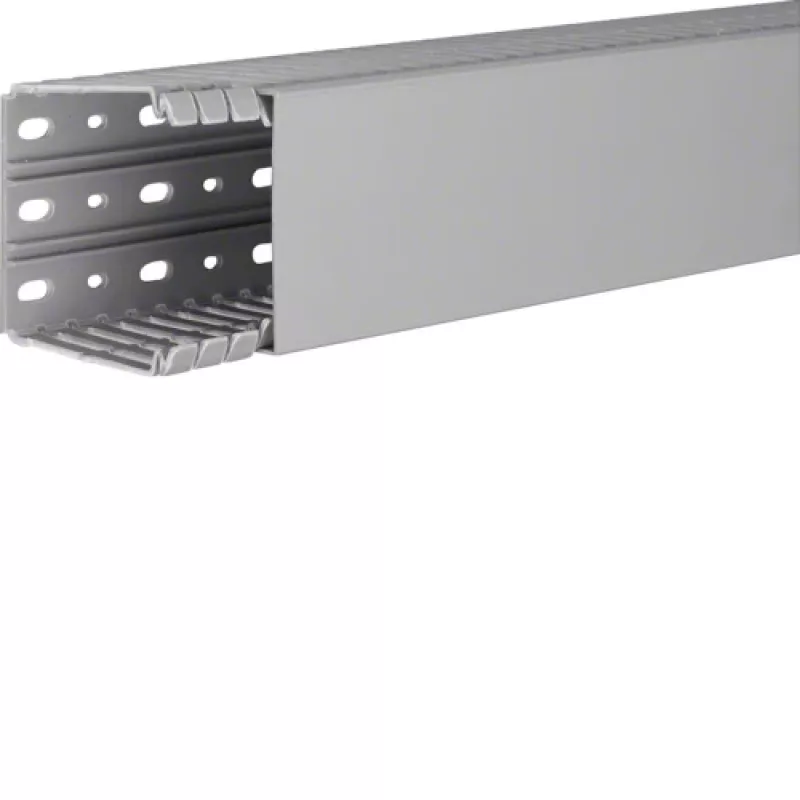

Hager BA780080 Cable Trunking Base - Grey - PVC - 2000 mm - EN 50085-2-3

The Hager BA780080 is a high-quality cable trunking base designed for underfloor, flushfloor, or in-floor installations. Made from durable PVC in stone grey (RAL 7030), this trunking base provides a reliable and secure pathway for cable management in commercial and industrial environments. With a length of 2000 mm, width of 80 mm, and height of 65 mm, it offers ample space for organizing cables while maintaining a low profile.

Advantages

This trunking base is self-extinguishing and offers impact resistance up to IK07 (2 Joules), ensuring long-lasting performance. It is lead-free and complies with EN 50085-2-3 standards, guaranteeing safety and quality. The screw fixing mounting method provides a secure installation, and the single-compartment design simplifies cable routing.

Suitable for

• Underfloor and flushfloor cable management systems
• In-floor installations in offices, commercial spaces, and industrial facilities
• Organizing power and data cables in a single compartment

Key specifications

• Product Type: Cable Trunking Base
• Material: PVC (Polyvinyl Chloride)
• Colour: Grey (RAL 7030 Stone Grey)
• Length: 2000 mm
• Width: 80 mm
• Height: 65 mm
• Standard Compliance: EN 50085-2-3
• Number of Compartments: 1
• Self-extinguishing: Yes
• Operating Temperature Range: -5°C to +60°C
• Impact Resistance: IK07 (2 Joules)
• Protection Class (with lid): IP40
• Halogen-free: No
• Lead-free: Yes
• UV Resistance: No
• Mounting Method: Screw fixing

Recommendations

For a complete cable management solution, pair this trunking base with compatible lids and accessories from Hager. Ensure proper installation by following the manufacturer's guidelines for screw fixing.
