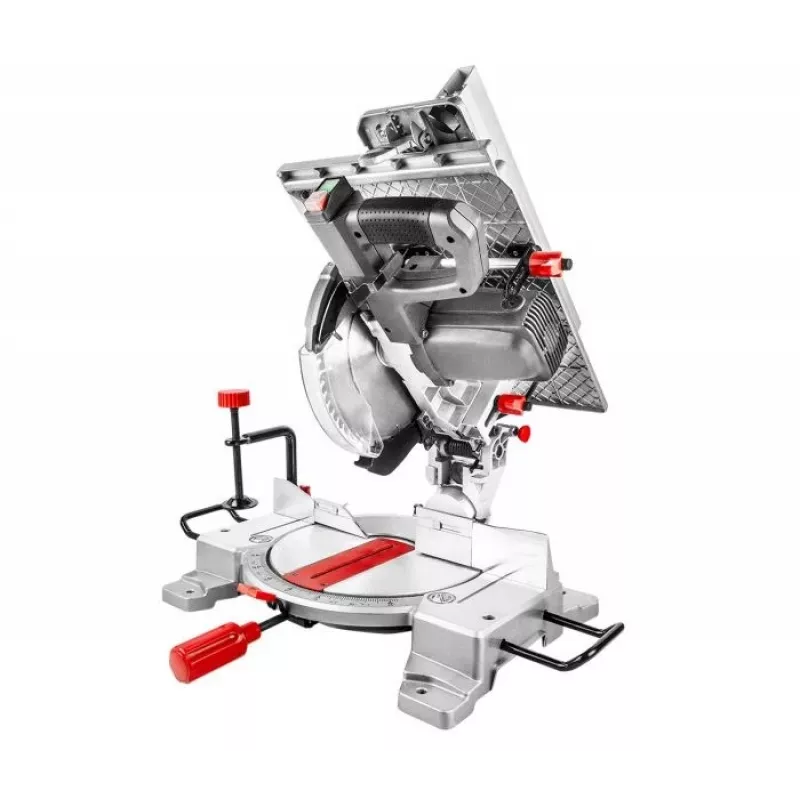

GRAPHITE Universal Saw 1600W, 254 mm Blade, 30 mm Bore

With a powerful 1600 W motor and a 254 mm blade spinning at 4800 RPM, this GRAPHITE universal saw delivers clean, precise cuts in wood and wood-based materials. The integrated foldable stand and dual table extensions provide a stable, spacious work surface for both workshop and job site.

Overview

The GRAPHITE 59G801 is a robust universal saw engineered for demanding cutting tasks. Its 1600 W motor drives a 254 mm blade with a 30 mm bore, achieving a no-load speed of 4800 RPM. The saw offers a maximum cutting depth of 75 mm at 90° and 60 mm at 45°, with a blade tilt range from 0 to 45°. The large 630 x 440 mm table, extendable to 630 x 940 mm with both side extensions, accommodates large workpieces. An integrated foldable stand ensures portability and quick setup. A 35 mm dust extraction port helps maintain a clean work area.

What stands out

• 1600 W motor with 4800 RPM for efficient cutting
• 254 mm blade with 30 mm bore for versatile use
• Max cutting depth: 75 mm at 90°, 60 mm at 45°
• Blade tilt 0–45° for bevel cuts
• Extendable table: 630 x 440 mm, expands to 630 x 940 mm
• Integrated foldable stand for portability
• Includes parallel guide, angle guide, and push stick
• 35 mm dust extraction port

Technical details

• Power: 1600 W
• Voltage: 230 V, 50 Hz
• No-load speed: 4800 RPM
• Blade diameter: 254 mm
• Blade bore: 30 mm
• Max cutting depth @ 90°: 75 mm
• Max cutting depth @ 45°: 60 mm
• Table dimensions: 630 x 440 mm
• Table extension right: 630 x 250 mm
• Table extension left: 630 x 250 mm
• Blade tilt range: 0–45°
• Dust extraction port: 35 mm
• Sound power level: 106.5 dB(A)
• Protection class: IP20
• Cable length: 2 m
• Stand: Integrated, foldable
• Included: Parallel guide, angle guide, push stick

Our verdict

The GRAPHITE 59G801 universal saw combines power, precision, and portability. Its extendable table and foldable stand make it ideal for both stationary and mobile use, while the included guides and push stick enhance safety and accuracy. A solid choice for professional carpenters and serious DIYers.
