Graphics tablet HUION Kamvas Pro 24 4K GT2401 — 23.8 inch QLED 3840×2160, 16:9, 8192 pressure

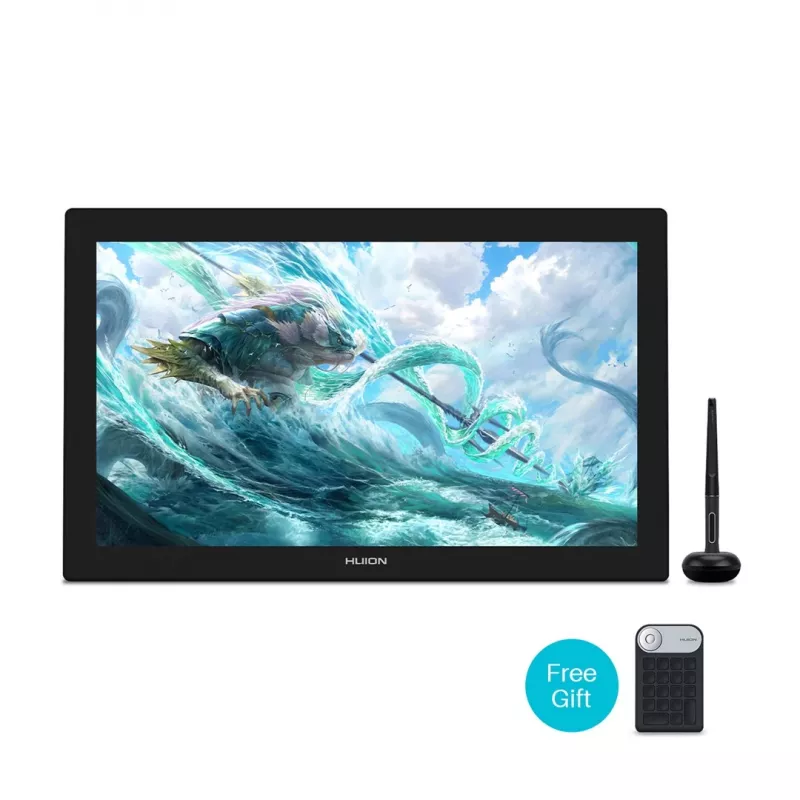

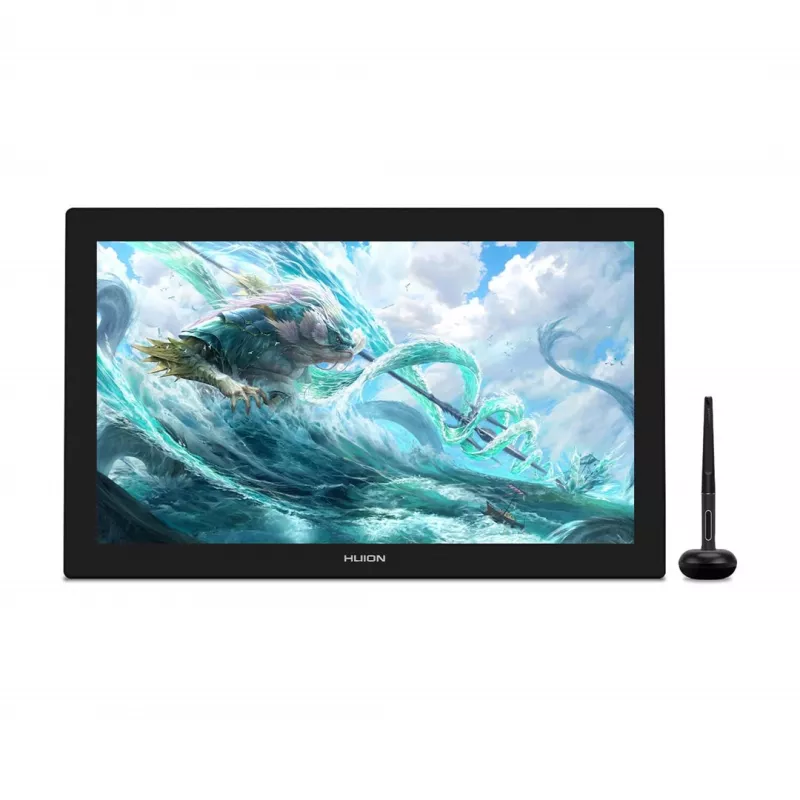

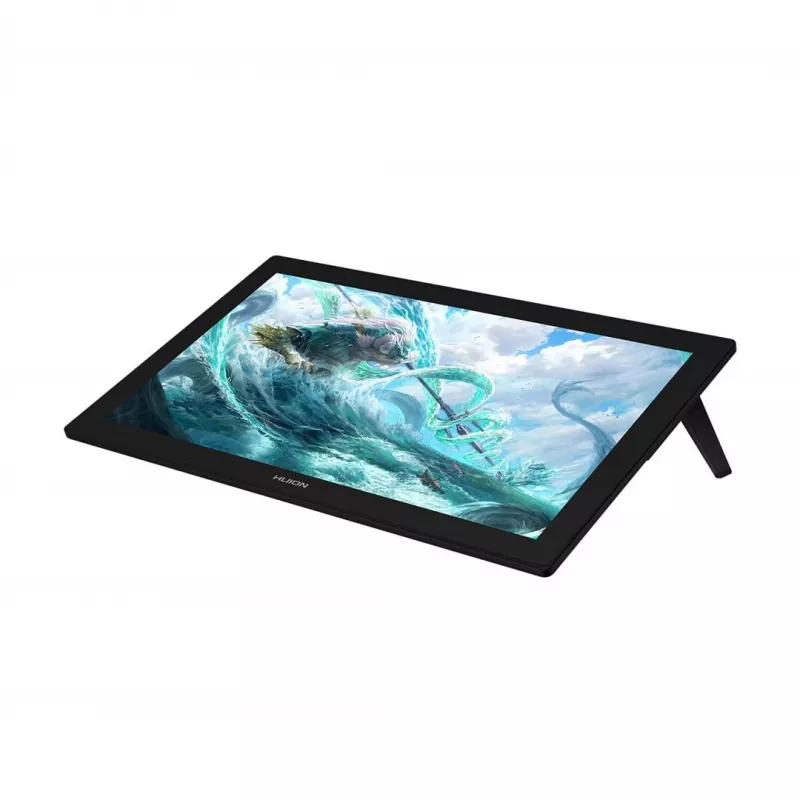

The Huion Kamvas Pro 24 (4K) GT2401 is a pen display tablet designed for drawing, retouching and creating 3D graphics. The 23.8-inch Full HD IPS screen (3840×2160) with 140% sRGB wide color gamut and 1.07 billion colors provides clear, true-to-life color reproduction. The display uses full lamination and anti-reflective frosted glass to reduce reflections and parallax, keeping the image visible even in bright ambient light. The battery-free PW517 pen offers 8192 levels of pressure sensitivity and ±60° tilt detection for accurate strokes and smooth shading. The package includes a KD100 mini keyboard and a glove for added convenience.

Advantages

The Kamvas Pro 24 features a large laminated IPS screen with high resolution and a wide color gamut for detailed and accurate color work. The PW517 pen is highly responsive with 8192 pressure levels, electromagnetic resonance operation (battery-free) and a 10 mm detection height. Full lamination and an anti-reflective surface minimize parallax and glare. The included KD100 mini keyboard with 18 programmable keys extends control options, while the adjustable pen stand and spare pen tips simplify long-term use.

Suitable for

• Digital illustration and concept art
• Photo retouching and color grading
• 3D modeling and texture painting
• Graphic design and layout work
• Remote teaching or live drawing demonstrations (when connected to PC/tablet/phone)

Key specifications

• Active area: 527.04 × 296.46 mm
• Screen diagonal: 23.8 inches; aspect ratio: 16:9
• Panel: IPS, 3840 × 2160 resolution; brightness: 220 cd/m²; contrast: 1200:1; response time: 10 ms; viewing angle: 178°
• Color gamut: 140% sRGB; colors: 1.07 billion (10-bit)
• Pen: PW517, 8192 pressure levels, 5080 LPI resolution, >300 PPS report rate, detection height >10 mm, tilt ±60°, accuracy ±0.3 mm (center)

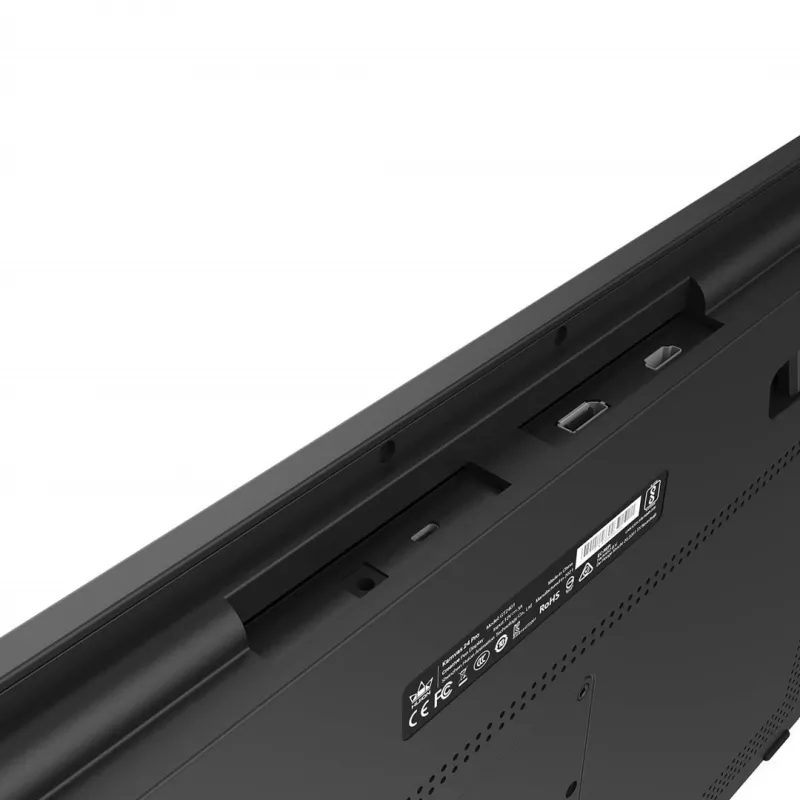

• Interfaces: HDMI, DisplayPort, USB-C, DC input, 2× USB-A 2.0, 3.5 mm headphone jack
• Power: <35 W operating, <0.4 W standby; input AC 100–240 V 50/60 Hz, output 19 V 3 A
• Anti-reflective glass and full lamination: yes
• Dimensions: 589.2 × 364 × 22.7 mm; operating temp: 0 °C to 40 °C; humidity: 20%–80%
• System support: Windows 7 or later, macOS 10.12 or later, Android (USB 3.1 DP1.2); Linux not supported
• Included accessories: PW517 pen, KD100 mini keyboard, ST100A pen stand, HDMI cable, USB-C to USB-C cable (1 m), power adapter and AC cord, pen holder PH05F, 10 pen tips, pen tip clamp, glove Cura CR-01, cleaning cloth
• Certification: CE / FCC / CCC; Warranty: 24 months

How to use

Connect the Kamvas Pro 24 to a compatible desktop, laptop or supported smart device using the appropriate cable (HDMI/DP and USB-C). Install the Huion driver for your operating system, then pair the PW517 pen—no battery is required. Adjust screen position and attach the KD100 mini keyboard if desired. Use the pen to draw directly on the laminated display; tilt is recognized for shading and the pen will be detected up to 10 mm above the surface. Replace pen tips with the included spare tips and tip clamp when worn.

Recommendations

For best color accuracy, calibrate the display with a hardware or software calibrator before color-critical work. Use the included glove to reduce smudges and improve glide. Keep firmware and drivers up to date and use the KD100 programmable keys to streamline repetitive tasks.
