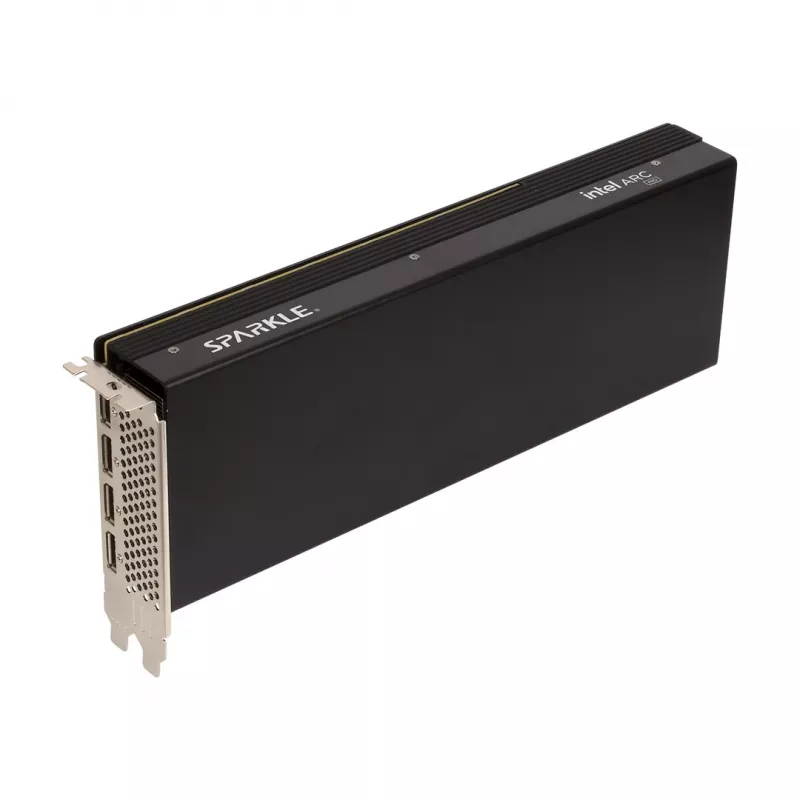

Graphics card Sparkle B60 Pro 24GB Intel Arc, 2400 MHz, GDDR6 192-bit, passive cooling, PCIe 5.0 x8, 4× DisplayPort 2.1

Sparkle B60 Pro is a passive-cooled Intel Arc discrete graphics card with 24 GB of GDDR6 memory on a 192-bit bus and up to 456 GB/s memory bandwidth. The GPU runs at 2400 MHz, provides 20 Xe-cores and 160 XMX engines, and connects via a PCI Express 5.0 x8 interface. The card is designed in a black finish and includes one 8-pin supplementary power connector; typical power consumption is 200 W. Output connectivity includes four DisplayPort 2.1 ports, supporting up to four displays.

Advantages

The passive cooling design enables silent operation suitable for noise-sensitive environments. A large 24 GB GDDR6 frame buffer and 192-bit memory bus provide ample capacity and bandwidth for multi-display workflows and media rendering. PCIe 5.0 x8 interface ensures modern platform compatibility and the four DisplayPort 2.1 outputs allow flexible multi-monitor setups while keeping power demands moderate.

Suitable for

• Multi-display workstations and trading desks
• Media editing and rendering that benefits from large video memory
• Silent PC builds and noise-sensitive office environments
• Applications that leverage Intel Arc hardware features

Key specifications

• GPU family: Intel Arc
• GPU frequency: 2400 MHz
• Xe-cores: 20
• Intel XMX engines: 160
• Memory capacity and type: 24 GB GDDR6
• Memory bus: 192-bit
• Maximum memory bandwidth: 456 GB/s
• Cooling: Passive
• Interface: PCI Express 5.0 x8

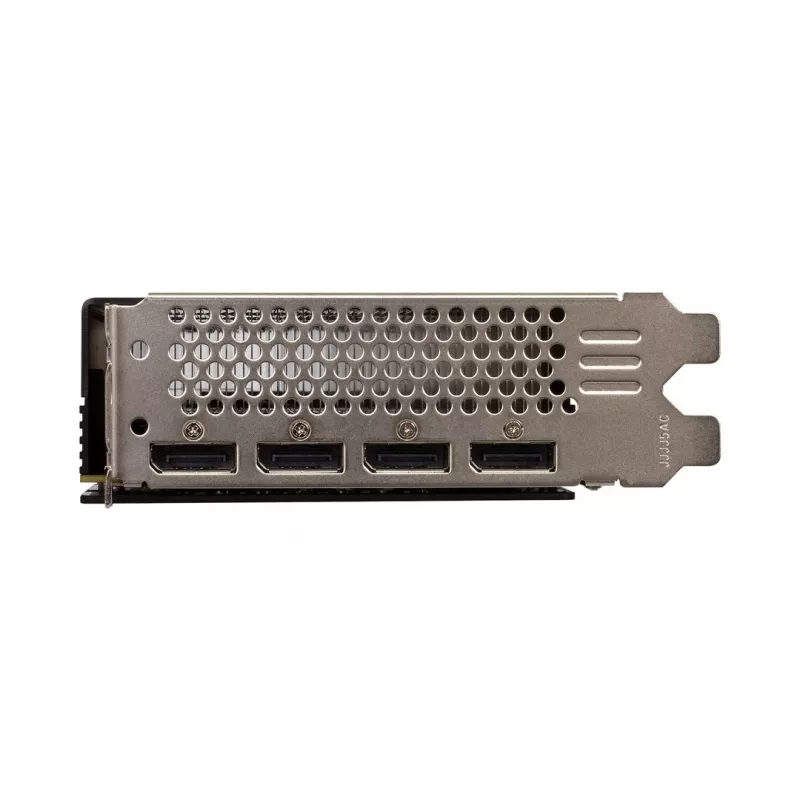

• Display outputs: 4 × DisplayPort 2.1
• Supplementary power: 1 × 8-pin connector
• Typical power consumption: 200 W
• Dimensions (L×D×H): 289 × 120 × 42 mm
• Weight: 1.05 kg

How to use

Install the Sparkle B60 Pro into a free PCIe 5.0 x8 (or compatible) slot on a switched-off system, secure the card in the case, and connect the required 8-pin supplementary power cable from the power supply. Ensure adequate case ventilation despite passive cooling and attach monitors to the DisplayPort 2.1 outputs. Install up-to-date Intel Arc drivers from the vendor or Intel to enable full functionality and system support.

Recommendations

Use the card in systems with sufficient airflow and a power supply capable of delivering stable power for a typical 200 W consumption. Passive cooling is intended for low-noise environments; avoid enclosing the card in poorly ventilated chassis. For optimal multi-monitor performance, connect displays using DisplayPort 2.1 cables and keep drivers updated.
