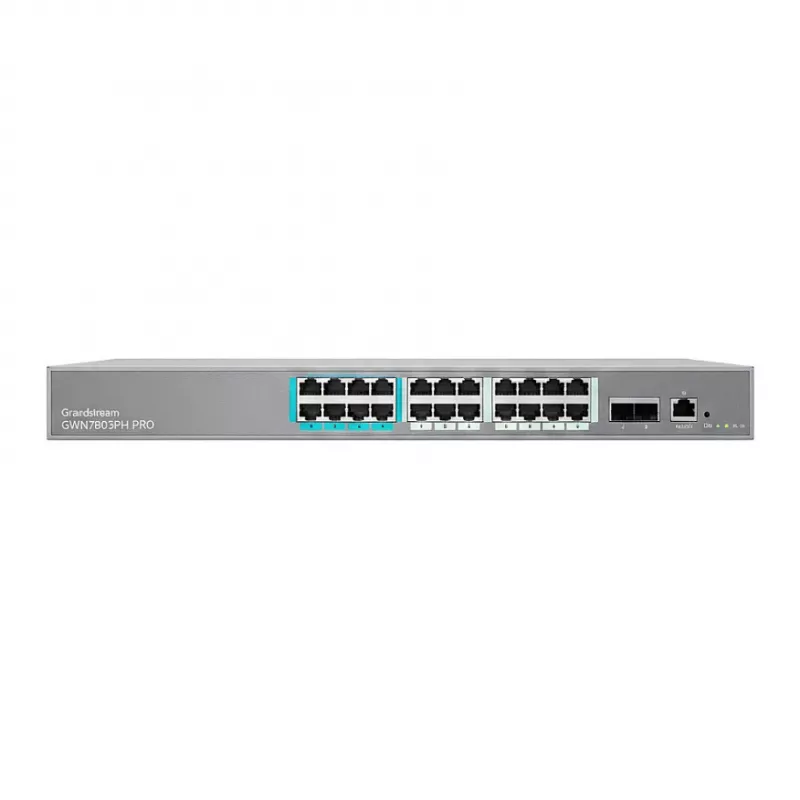

Grandstream GWN7803PH PRO Enterprise Layer 2++ Managed Switch – 24× Gigabit RJ45 PoE/PoE+ + 2× Gigabit SFP+

The Grandstream GWN7803PH PRO is a high-performance Enterprise Layer 2++ Managed Switch designed for demanding business networks. With 24 Gigabit RJ45 ports supporting PoE/PoE+ and a total PoE budget of 360W, plus 2 Gigabit SFP+ uplink ports, it delivers robust connectivity and power for IP phones, cameras, and access points. Ideal for small to medium enterprises, this switch offers advanced management features including VLAN, QoS, and security protocols, all accessible via Web UI, CLI, SNMP, or cloud-based GWN.Cloud and GWN Manager.

Advantages

This switch provides a cost-effective solution for network expansion with high power budget and reliable performance. Its Layer 2+ capabilities ensure efficient traffic management, while the smart fan and rack-mountable design make it suitable for server rooms. The 52 Gbps switching capacity and 38.69 Mpps forwarding rate guarantee smooth data flow.

Suitable for

• Small to medium enterprises requiring PoE for devices
• Network expansions with high-density port needs
• Managed network environments needing VLAN and QoS
• Installations requiring remote management via cloud

Key specifications

• 24 x 10/100/1000Base-T RJ45 PoE/PoE+ ports
• 2 x 1G SFP+ uplink ports
• Total PoE budget: 360W
• Switching capacity: 52 Gbps
• Forwarding rate: 38.69 Mpps
• MAC address table: 16K
• Jumbo frame support: up to 10KB
• VLAN support: 802.1Q, up to 4K VLANs
• Management: Web UI, CLI, SNMP, GWN.Cloud, GWN Manager
• Security: ACLs, DHCP Snooping, DoS Protection, Port Security, ARP Inspection
• QoS: 802.1p, DSCP
• Internal power supply: AC 100-240V, 50/60Hz
• Rack-mountable 1U
• Smart fan for quiet operation

Recommendations

For optimal performance, pair with Grandstream IP phones and GWN series access points. Use GWN.Cloud for centralized management across multiple sites.
