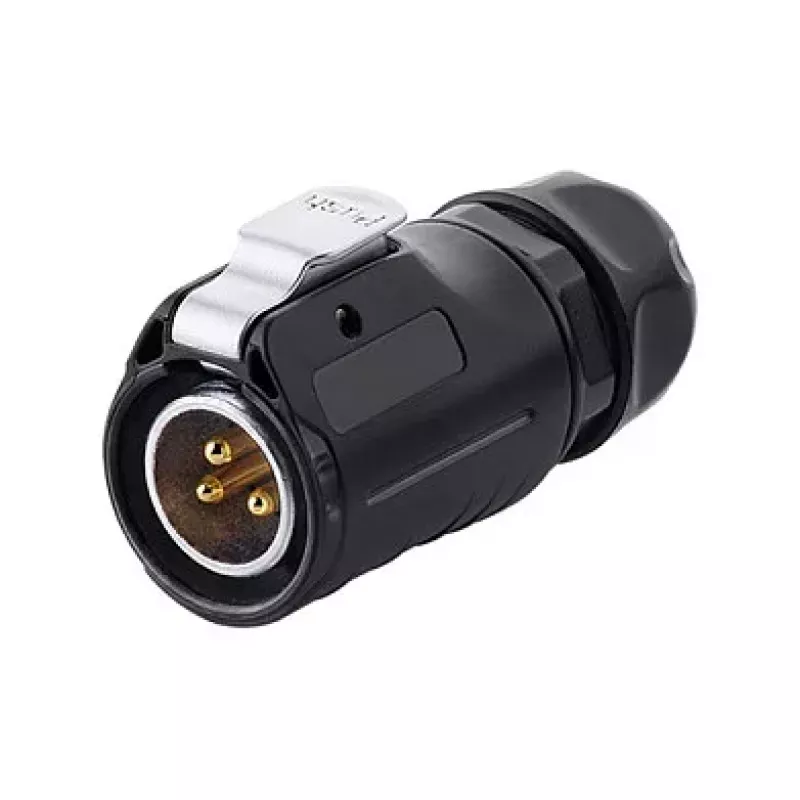

GoodConnections Industrial Connector S1 - Power 3-Pin Plug M20 IP65/66

The GoodConnections IC01-20P301 is a high-quality industrial circular power connector from the S1 series, designed for reliable power transmission in demanding environments. This plug (male) features 3 contacts with solder termination, a screw-locking mechanism, and an M20 cable gland. With IP65/IP66 protection when mated, it is suitable for industrial automation, machinery, and control systems.

Advantages

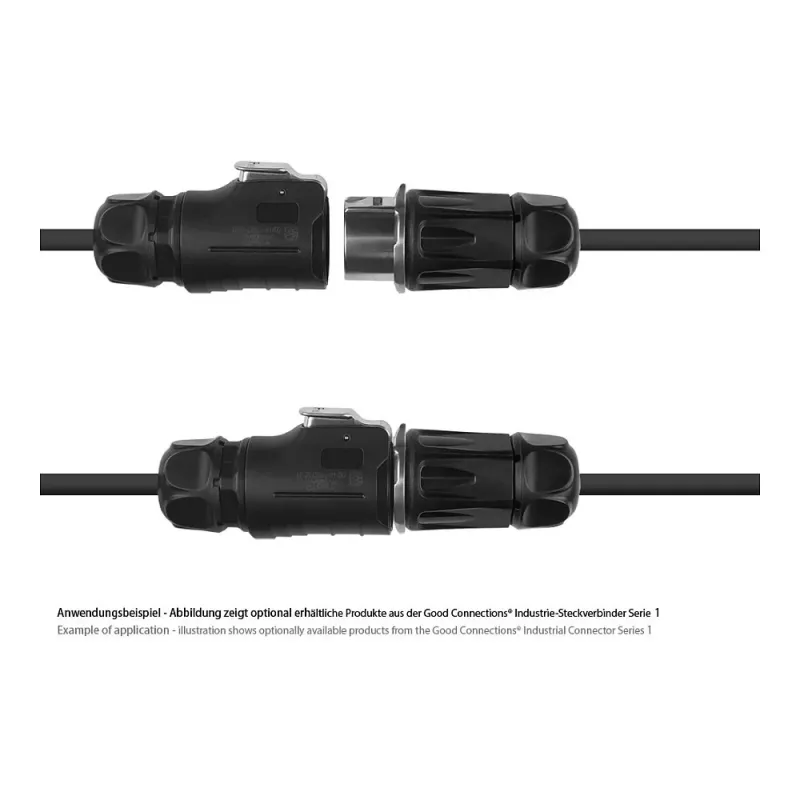

Robust polyamide housing with UL94 V-0 flammability rating ensures safety and durability. Silver-plated brass contacts provide excellent conductivity and corrosion resistance. The click-lock mechanism guarantees secure mating, while the wide operating temperature range (-40°C to +100°C) allows use in extreme conditions.

Suitable for

• Industrial power distribution
• Automation and control cabinets
• Machine building and plant engineering
• Outdoor and harsh environment applications

Key specifications

• Connector series: Binder 696 S1 Power
• Gender: Plug (male)
• Number of contacts: 3
• Termination: Solder
• Rated current: 25 A
• Rated voltage: 400 V
• IP rating: IP65/IP66 (mated)
• Cable gland thread: M20 x 1.5
• Cable diameter: 6 - 10 mm
• Operating temperature: -40°C to +100°C
• Mating cycles: >500
• Flammability rating: UL94 V-0

Recommendations

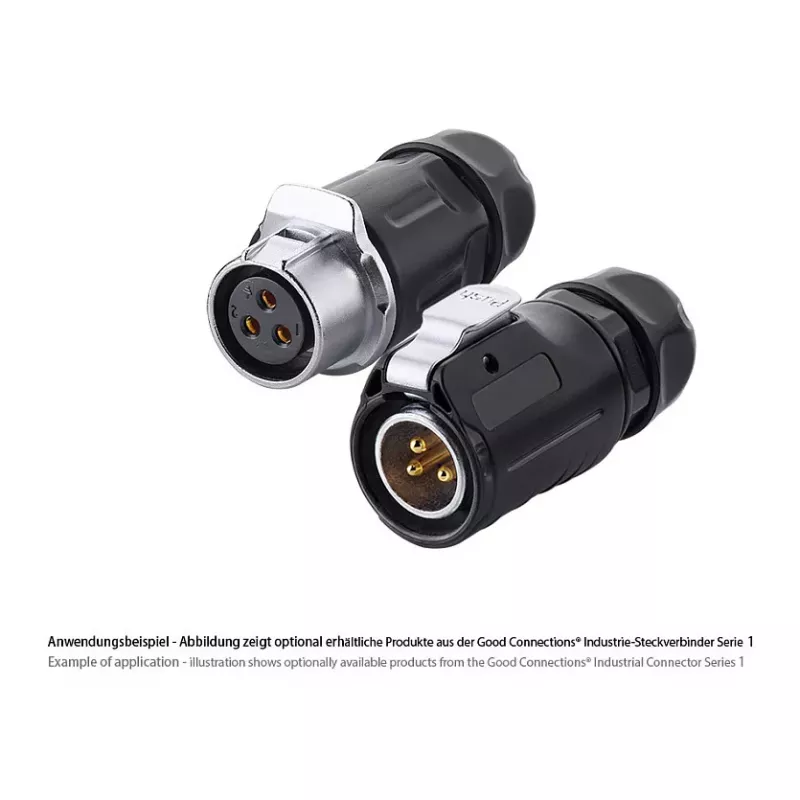

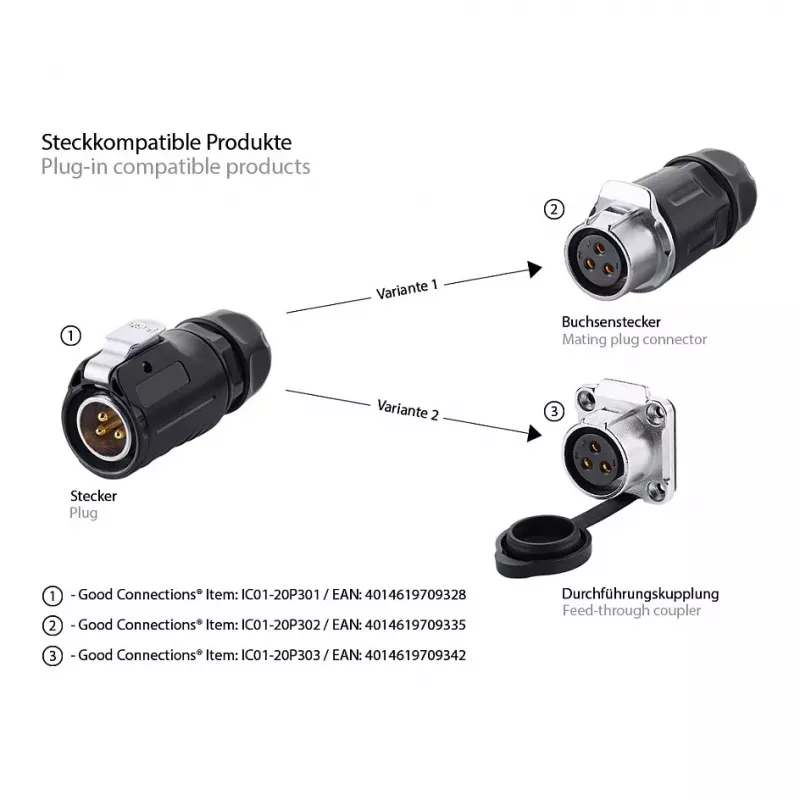

For optimal performance, use with matching GoodConnections S1 Power receptacles. Ensure proper cable stripping and soldering for reliable connections. Suitable for use with cables up to 10 mm diameter.
