GoodConnections Cat.6A S/FTP Patch Cable with RNS Latch Protection, 20m, Black

Experience 10 Gigabit Ethernet at 500 MHz with this premium Cat.6A patch cable, engineered for high-density network environments where performance and durability are non-negotiable.

Overview

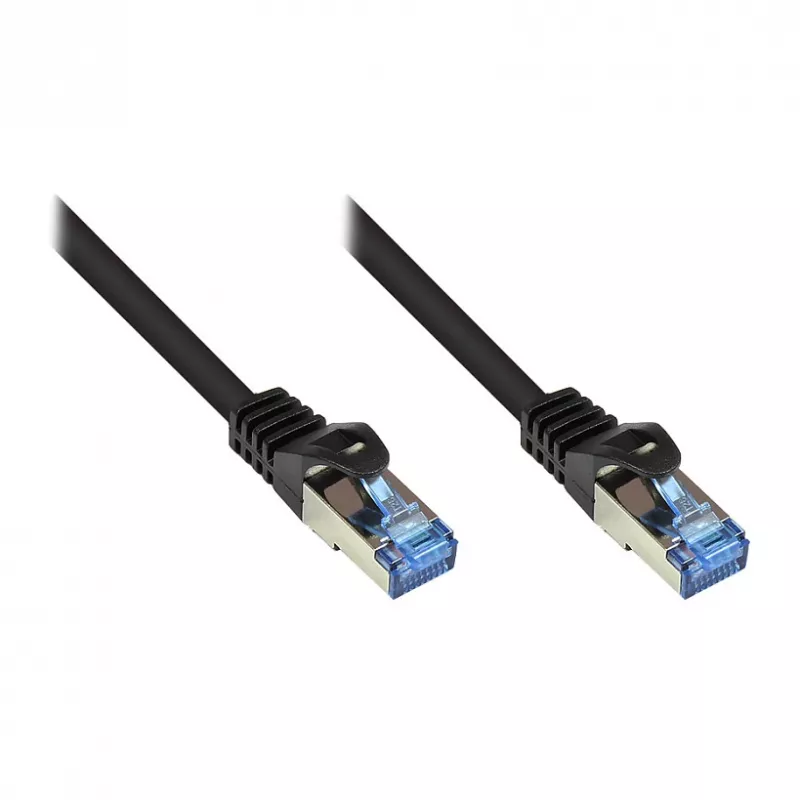

The GoodConnections 8060-H200S is a 20-meter Cat.6A patch cable featuring S/FTP shielding with PiMF (pairs in metal foil) for superior protection against alien crosstalk and EMI. It is terminated with RJ45 connectors on both ends and supports data rates up to 10 Gbps, making it ideal for data centers, server rooms, and high-speed workstation connections. The halogen-free LSZH jacket ensures low smoke and zero halogen emissions in case of fire, enhancing safety in enclosed spaces.

What stands out

• RNS® latch protection prevents snagging and accidental disconnection, preserving connector integrity during installation and maintenance.
• Halogen-free LSZH jacket meets strict fire safety regulations for public buildings and industrial applications.
• Stranded copper conductors provide flexibility for easy routing in tight spaces without performance loss.
• Backward compatible with Cat.6, Cat.5e, and Cat.5 networks, ensuring investment protection.

Technical details

• Category: Cat.6A (Class EA) with 500 MHz bandwidth
• Shielding: S/FTP (overall braid + foil per pair, PiMF)
• Length: 20 meters
• Color: Black
• Connectors: RJ45 male to RJ45 male, 50-micron gold-plated contacts
• Conductor: Stranded bare copper, 26 AWG (4 pairs)
• Jacket: Halogen-free LSZH, diameter 6.2 mm
• Impedance: 100 Ohm
• Wiring: TIA/EIA 568B
• Operating temperature: -20°C to +75°C
• Compliance: ANSI/TIA-568-C.2, ISO/IEC 11801, EN 50173

Our verdict

For professionals who demand reliable 10G performance with added safety and durability, this GoodConnections cable delivers exceptional value. The RNS latch protection alone saves time and frustration in dense racks, while the halogen-free jacket makes it suitable for any environment.
