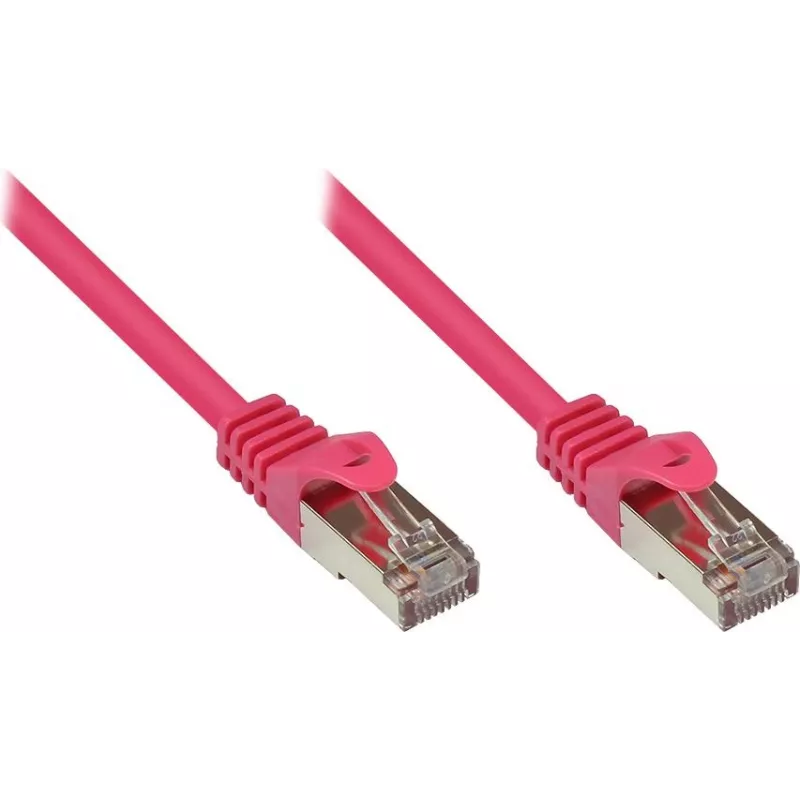

Good Connections Cat 5e SF/UTP Patch Cable, Magenta, 0.25 m 855M-003

With a bandwidth of up to 100 MHz and support for Gigabit Ethernet, this magenta Cat 5e patch cable delivers reliable, high-speed network connections in a compact 0.25 m length. The SF/UTP shielding (braided and foil) ensures excellent protection against electromagnetic interference, making it ideal for densely wired environments.

Overview

The Good Connections 855M-003 is a Category 5e Ethernet patch cable designed for demanding network installations. It features SF/UTP shielding, which combines an overall braided screen with a foil shield around each twisted pair, providing superior noise immunity compared to standard UTP cables. The cable is constructed with stranded copper conductors (26 AWG) for flexibility and durability, and it is terminated with gold-plated RJ45 connectors that resist corrosion and ensure a reliable connection.

What stands out

• SF/UTP shielding: Braided and foil layers minimize crosstalk and EMI, ensuring stable data transmission even near power lines or other interference sources.
• Gigabit-ready: Supports data rates up to 1 Gbps and a bandwidth of 100 MHz, fully compliant with Cat 5e standards.
• Snagless molded boot: Protects the connector locking tab from damage during installation and removal, extending cable life.
• Flexible stranded copper: 26 AWG stranded conductors allow for tight bends without breaking, ideal for patch panels and tight spaces.
• Backward compatible: Works seamlessly with existing Cat 5 networks and all Ethernet devices.

Technical details

• Length: 0.25 m
• Colour: Magenta
• Connector type: RJ45 male to RJ45 male
• Shielding: SF/UTP (Screened Foiled/Unshielded Twisted Pair)
• Conductor material: Copper, stranded
• Wire gauge: 26 AWG
• Jacket material: PVC
• Wiring standard: TIA/EIA 568B
• Data transfer rate: Up to 1 Gbps
• Bandwidth: Up to 100 MHz
• Certifications: RoHS, CE

Our verdict

For short-distance, high-integrity network links, this cable offers exceptional shielding and build quality at an affordable price. Its snagless design and flexible construction make it a reliable choice for professional installations.
