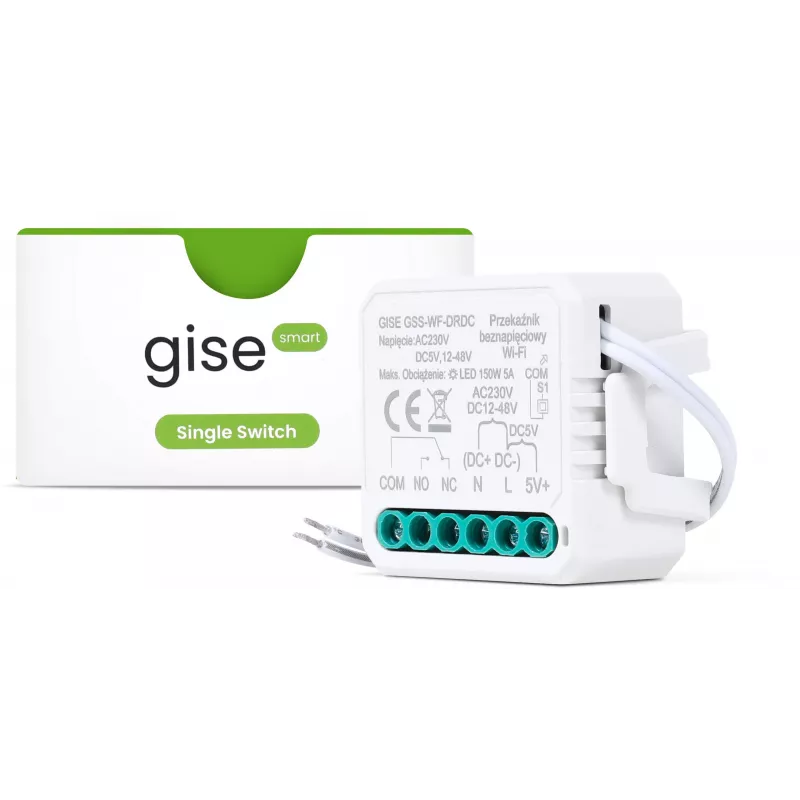

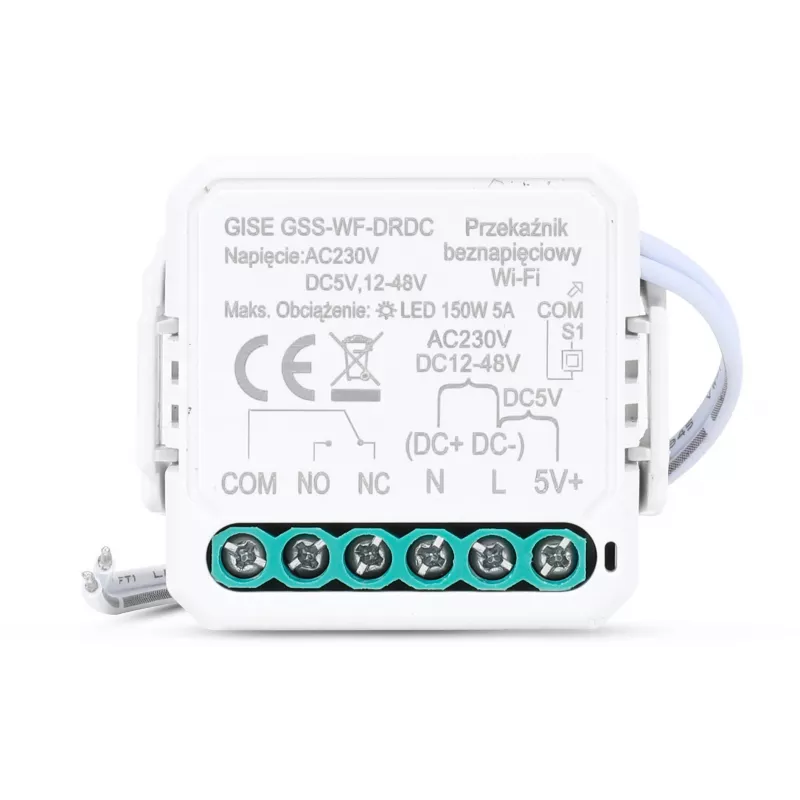

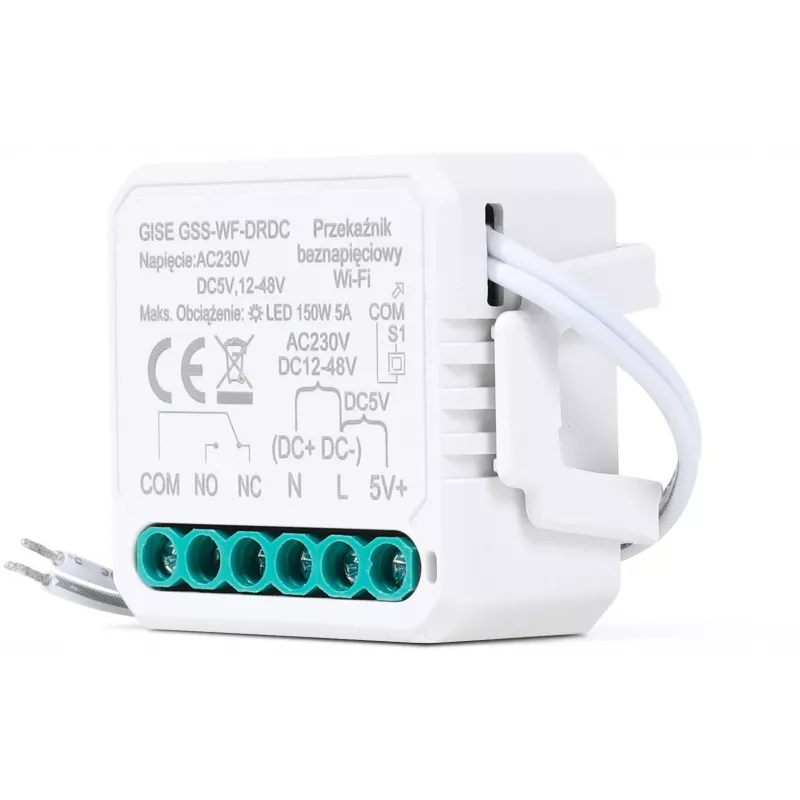

GISE Smart Single Potential-Free Low-Voltage WiFi Relay Module | Tuya | GSS-WF-DRDC

The GISE Smart Single Potential-Free Low-Voltage WiFi Relay Module (model GSS-WF-DRDC) is a compact and versatile smart home device that enables remote control of electrical appliances via the Tuya Smart or Smart Life app. With its potential-free (dry contact) relay, it is ideal for controlling door locks, gates, motors, and other low-voltage devices. The module supports both momentary and self-locking modes, and is compatible with Amazon Alexa and Google Assistant for voice control.

Advantages

This smart relay module offers seamless integration into existing smart home ecosystems. Its potential-free design ensures safe switching of high-voltage loads (up to 250V AC/30V DC at 10A) while being controlled by low-voltage DC power. The module supports scheduling, timers, and scene automation, allowing for energy savings and enhanced convenience. Compact size and easy installation make it suitable for a wide range of applications.

Suitable for

• Smart home automation projects
• Access control systems (e.g., electric door strikes, magnetic locks)
• Motor control (e.g., garage doors, curtains, blinds)
• Remote switching of lighting and appliances
• DIY home automation enthusiasts

Key specifications

• Product Type: Smart Relay Module
• Number of Channels: 1
• Relay Type: Potential-Free (Dry Contact)
• Wireless Connectivity: Wi-Fi IEEE 802.11 b/g/n, 2.4 GHz
• Smart Home Platform: Tuya Smart / Smart Life
• Input Voltage: DC Low Voltage
• Relay Contact Max Voltage: 250V AC / 30V DC
• Relay Contact Max Current: 10A
• Control Method: Mobile App, Voice Control
• Voice Assistant Compatibility: Amazon Alexa, Google Assistant
• Operating Modes: Momentary (Inching), Self-locking (Toggle)
• Key Features: Remote Control, Scheduling, Timer, Scene Automation
• Operating Temperature: -10°C to +40°C
• Operating Humidity: 5%-95% RH (non-condensing)

Recommendations

For optimal performance, ensure a stable 2.4 GHz Wi-Fi network. The module requires a low-voltage DC power supply (not included). Suitable for indoor use only. Always follow local electrical codes when installing.
