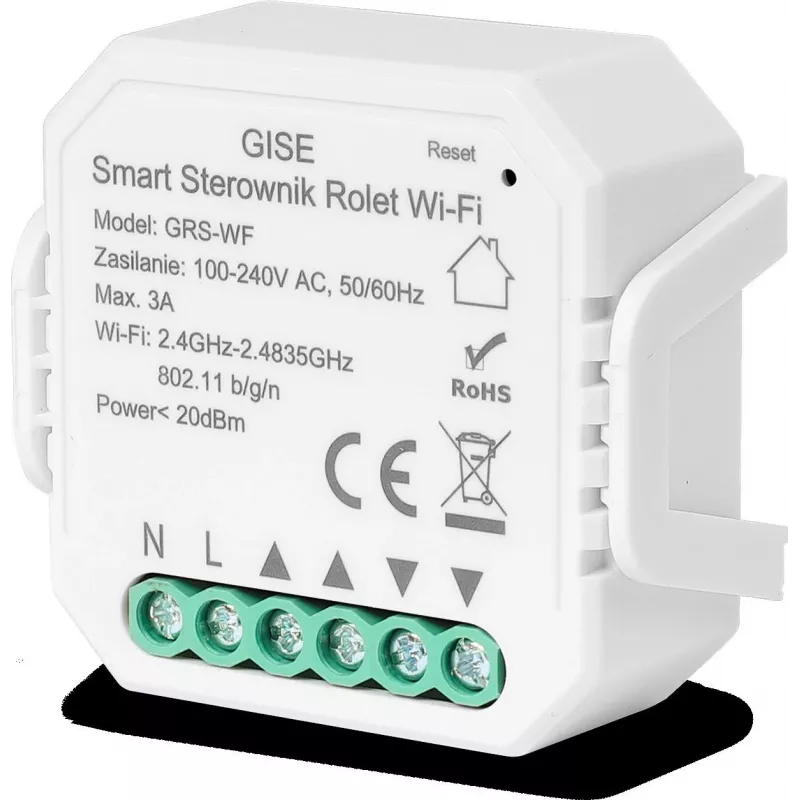

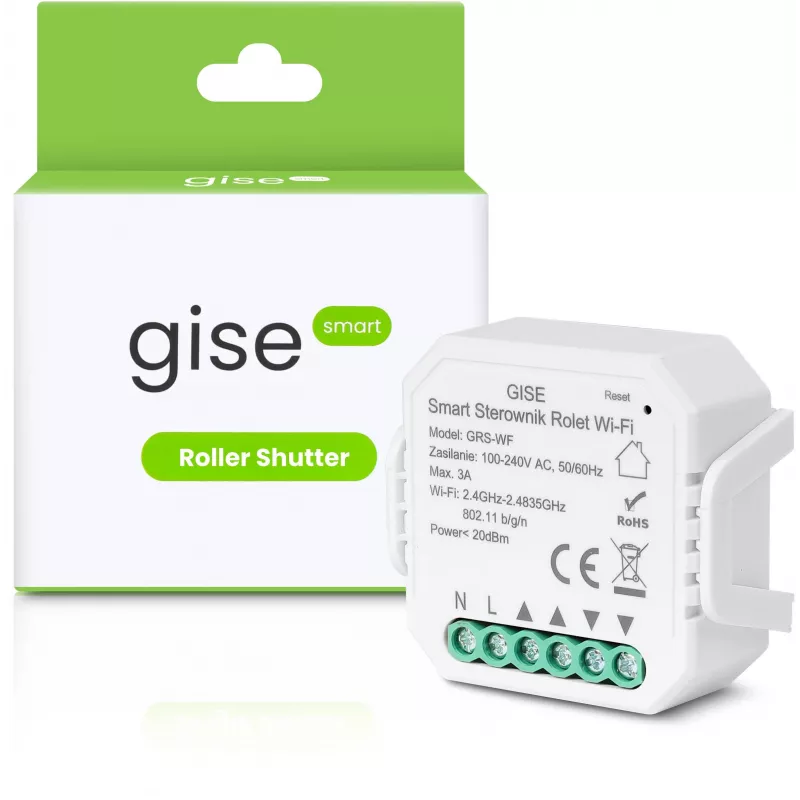

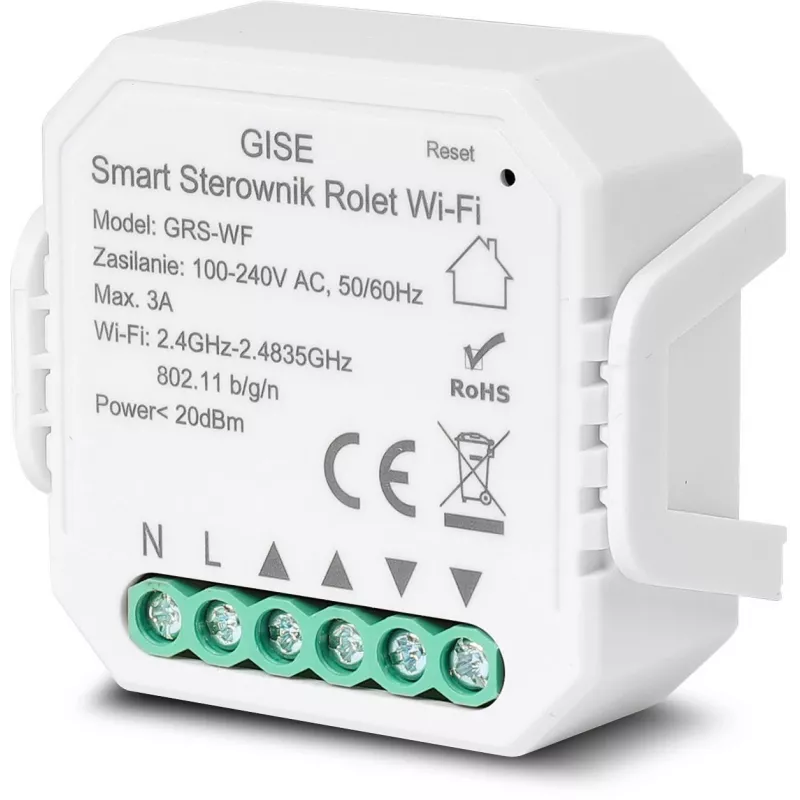

GISE Smart Roller Shutter Module WiFi GEN 2 Tuya GRS-WF

Control your roller shutters, blinds, and awnings with the GISE Smart Roller Shutter Module WiFi GEN 2 (GRS-WF). This second-generation smart module integrates seamlessly with the Tuya Smart ecosystem, enabling remote operation via the Smart Life app and voice control with Amazon Alexa and Google Assistant. Designed for flush mounting in a standard 60mm wall box, it requires a neutral wire and supports AC 100-240V input with a maximum motor load of 3A.

Advantages

Upgrade your existing roller shutters to smart operation without replacing the motor. The GRS-WF offers reliable Wi-Fi connectivity (2.4 GHz, IEEE 802.11 b/g/n) and allows you to open, close, stop, schedule, and create scene automations from anywhere. Its compact design fits neatly into a wall box, and the PC V0 fire-retardant housing ensures safety.

Suitable for

• Electric roller shutters
• Blinds and venetian blinds
• Awnings and exterior shades
• Smart home automation projects using Tuya Smart / Smart Life

Key specifications

• Product Type: Smart Roller Shutter Module
• Wireless Protocol: Wi-Fi (IEEE 802.11 b/g/n, 2.4 GHz)
• Smart Home Ecosystem: Tuya Smart / Smart Life
• Voice Assistants: Amazon Alexa, Google Assistant
• Input Voltage: AC 100-240V, 50/60Hz
• Max Output Current: 3A (Motor Load)
• Neutral Wire Required: Yes
• Installation: Flush-mounted (60mm wall box)
• Control Functions: Open, Close, Stop, Schedule, Timer, Scene Automation
• Housing Material: PC V0 Fire-retardant
• Operating Temperature: -10°C to +40°C
• Operating Humidity: 5% to 95% RH (non-condensing)
• Certifications: CE, RoHS
• Generation: 2nd Generation

Recommendations

Ensure your wall box has a neutral wire before installation. Compatible with most standard electric roller shutters. For best performance, use a stable 2.4 GHz Wi-Fi network.
