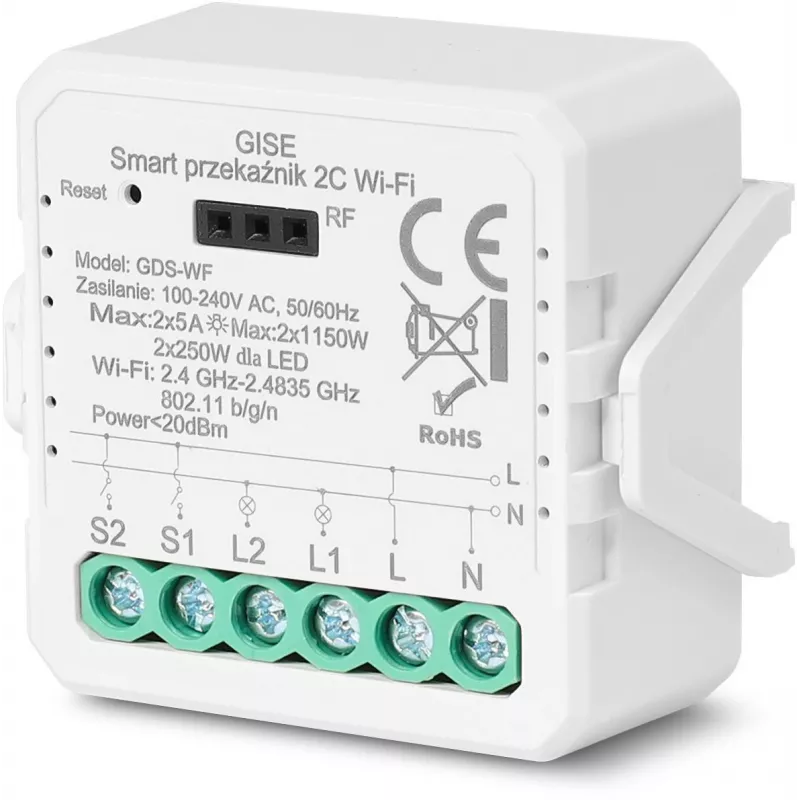

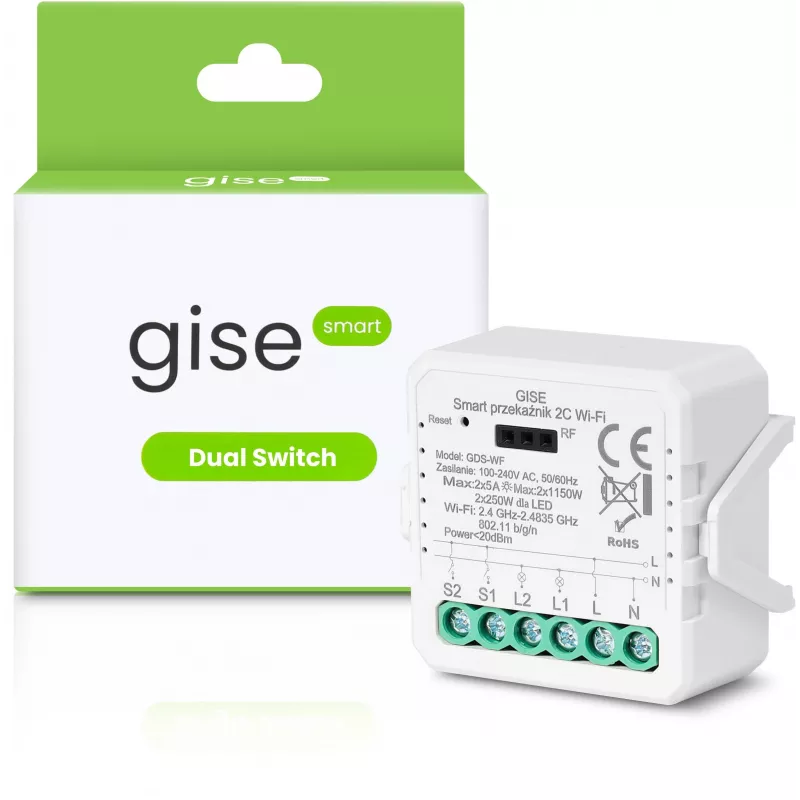

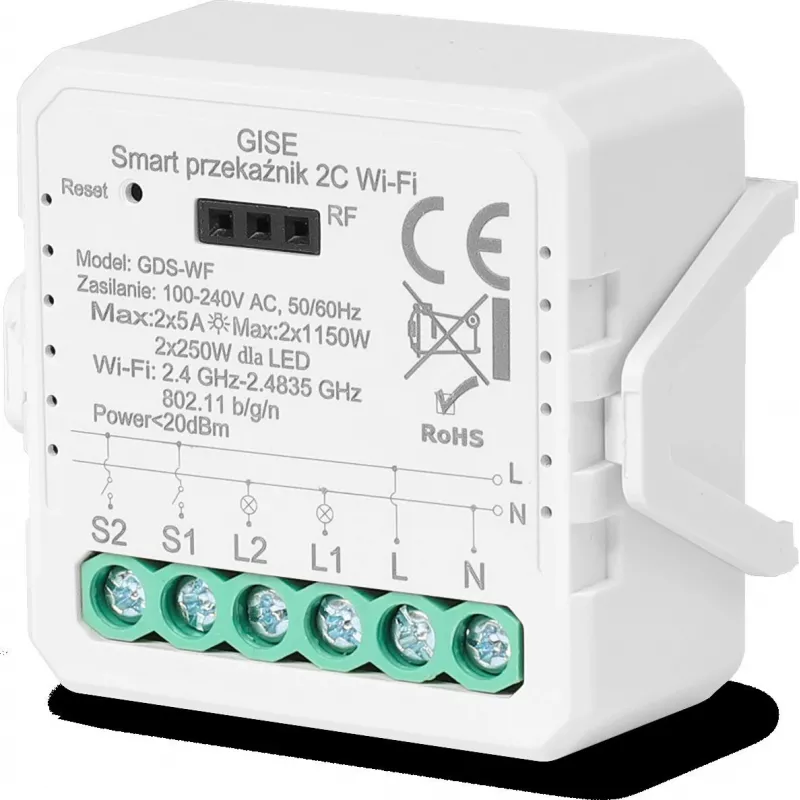

GISE Smart Dual Relay WiFi Module Tuya GDS-WF

Upgrade your home automation with the GISE Smart Dual Relay WiFi Module (GDS-WF). This compact, in-wall relay module allows you to control two independent electrical circuits remotely via the Tuya Smart or Smart Life app. With support for Amazon Alexa and Google Assistant, you can manage lights, appliances, and other devices with simple voice commands. The module is designed for easy installation in standard junction boxes and features a fire-retardant PC V0 housing for enhanced safety.

Advantages

Control two devices independently from anywhere using your smartphone. Create schedules, timers, and scenes to automate your daily routines. The power loss memory ensures your settings are retained even after a power outage. Voice control compatibility adds hands-free convenience.

Suitable for

• Smart lighting control (on/off, dimming not supported)
• Automating home appliances like fans, pumps, or heaters
• Integrating with existing Tuya-based smart home systems
• Retrofit installations in standard wall boxes

Key specifications

• Connectivity: Wi-Fi IEEE 802.11 b/g/n, 2.4 GHz
• Smart Platform: Tuya Smart / Smart Life
• Channels: 2 (Dual Relay)
• Input Voltage: AC 100-240V, 50/60 Hz
• Max Load per Channel: 10 A, 2200 W
• Voice Control: Amazon Alexa, Google Assistant
• Housing Material: PC V0 Fire-retardant
• Operating Temperature: -10°C to 40°C
• Operating Humidity: 5% - 95% RH (non-condensing)
• Certifications: CE, RoHS
• Installation: In-wall / Junction Box
• Security: WPA/WPA2

Recommendations

For best performance, ensure a stable 2.4 GHz Wi-Fi network. The module is intended for indoor use only. Professional installation is recommended if you are not familiar with electrical wiring.
