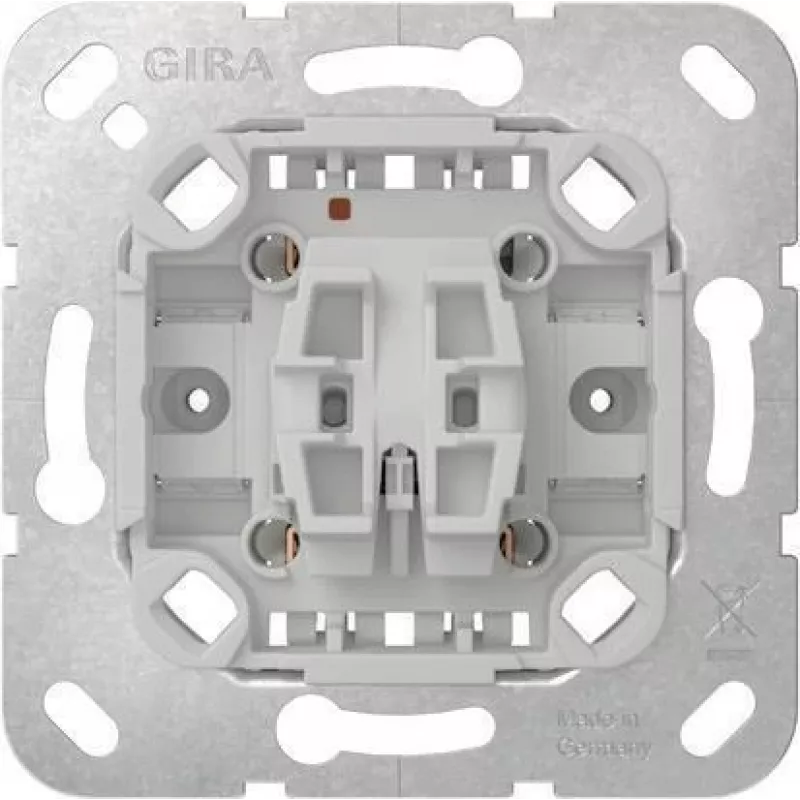

GIRA 381600 Changeover Switch Insert, 1-Pole, 10 A, 250 V AC, Flush-Mounted, Without Claws, for System 55

Electricians and installers working on residential or commercial lighting projects will find the GIRA 381600 changeover switch insert essential for creating robust flush-mounted switching points. This insert is the functional core behind a rocker switch, handling changeover (SPDT) duties for lighting control and general switching applications. It is designed to be paired with a compatible Gira System 55 rocker and frame (sold separately) to complete the visible switch assembly.

Key specifications

• Switch function: Changeover switch (SPDT)
• Number of poles: 1-pole
• Rated current: 10 A
• Rated voltage: 250 V AC
• Mounting type: Flush-mounted (Unterputz)
• Mounting mechanism: Screw mounting
• Mounting claws: Without spreading claws
• Connection type: Screw terminals
• Terminal capacity: max. 2 x 2.5 mm² or 1 x 4 mm²
• Material: Thermoplastic
• Protection degree: IP20 (when installed)
• System compatibility: Gira System 55 (and compatible design lines)
• Required accessories: Rocker, frame (not included)
• Application: Lighting control, general switching
• Certification: VDE
• Operating temperature range: -5 to +40 °C
• Halogen-free: Yes

Why choose it

This insert is built to Gira's exacting standards, ensuring reliable switching for years. The screw terminals provide a secure connection for solid or stranded conductors, and the halogen-free thermoplastic housing meets modern environmental requirements. Its flush-mounted design integrates seamlessly into standard wall boxes, and the absence of spreading claws allows for straightforward installation in a variety of mounting situations. With VDE certification, you can trust its safety and performance.

Ideal use cases

• Controlling lighting from two locations (in combination with a second changeover switch)
• General on/off switching for lamps, fans, or other fixed appliances
• Renovation projects where existing flush-mounted boxes are reused
• New installations in residential or commercial buildings using Gira System 55 design lines

Good to know

The GIRA 381600 is a switch insert only; the rocker and cover frame are ordered separately according to the desired design and colour. It is compatible with the entire Gira System 55 range, allowing you to match any interior style. The insert is rated IP20 when installed, meaning it is suitable for indoor use in dry environments. For installation, ensure the power is switched off and follow local electrical regulations. The terminal capacity supports common wiring sizes, making it versatile for different cable types.
