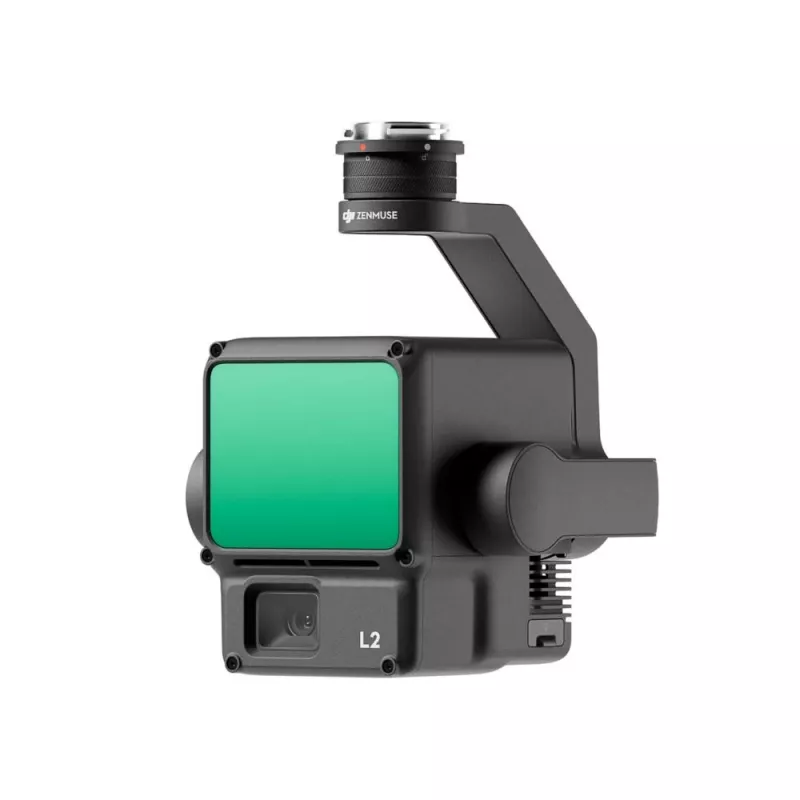

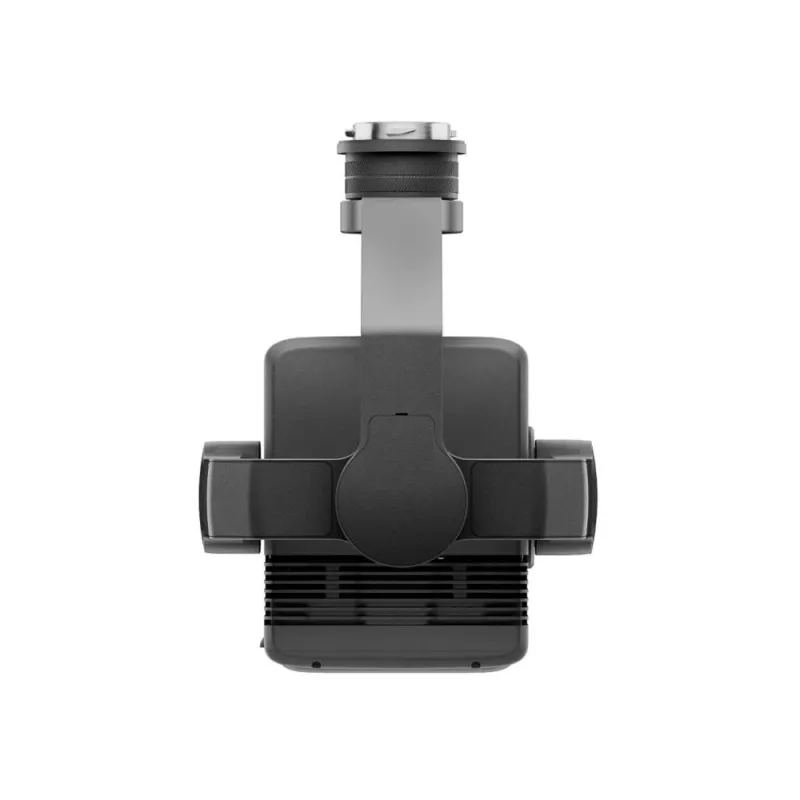

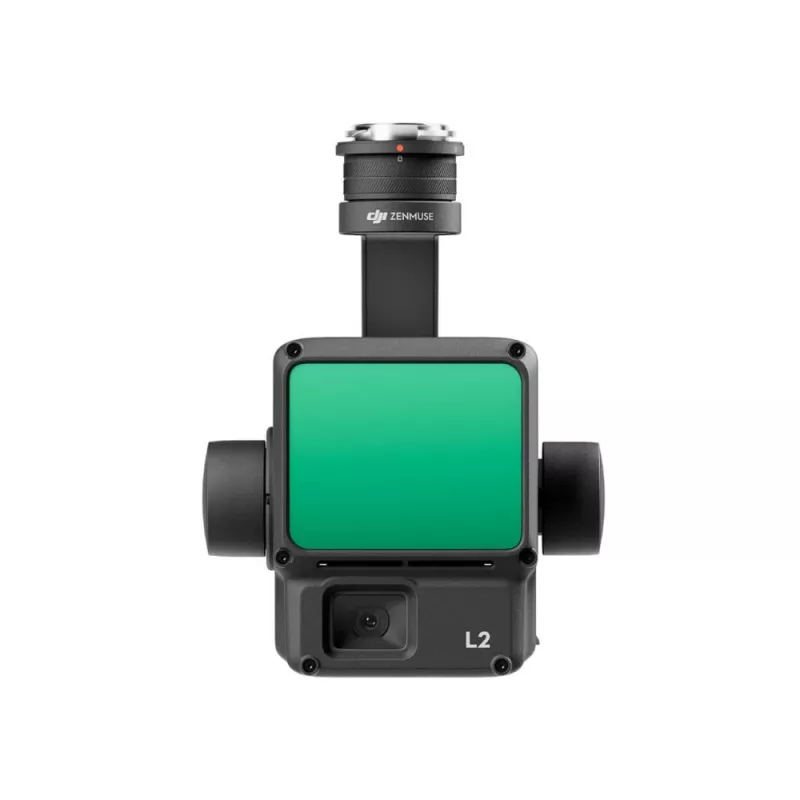

Gimbal Camera Module DJI Zenmuse L2 4K — DJI CP.EN.00000505.01

The DJI Zenmuse L2 4K gimbal camera module is an interchangeable imaging payload designed to fit compatible DJI aircraft. Combining a 3-axis stabilized gimbal with 4K imaging capability, the module delivers steady aerial footage and stills for photography, surveying and inspection work. As an upgrade or replacement camera, the Zenmuse L2 4K integrates with the drone's mount and control systems to provide precise framing, reduced motion blur and consistent image quality during flight.

Advantages

The integrated 3-axis stabilization ensures smooth video capture and sharp photos even during dynamic maneuvers. Native 4K resolution provides detailed imagery suitable for visual documentation and analysis. The module is engineered for straightforward mechanical and electronic integration with compatible DJI platforms, enabling reliable communication with flight control, gimbal stabilization and image transmission systems. Compact optical and mechanical design reduces additional payload weight while maintaining robust performance for professional workflows.

Suitable for

• Aerial photography and videography requiring stabilized 4K capture
• Surveying, mapping and photogrammetry tasks that need high-resolution imagery
• Inspection of infrastructure, utilities and construction sites
• Upgrading or replacing existing onboard imaging modules

Key specifications

• Imaging resolution: up to 4K video capture
• Stabilization: 3-axis mechanical gimbal stabilization
• Mount type: modular payload mount compatible with supported DJI platforms
• Weight category: lightweight design intended for aerial payload integration
• Connectivity: integrated electronic interface for camera control and telemetry

How to use

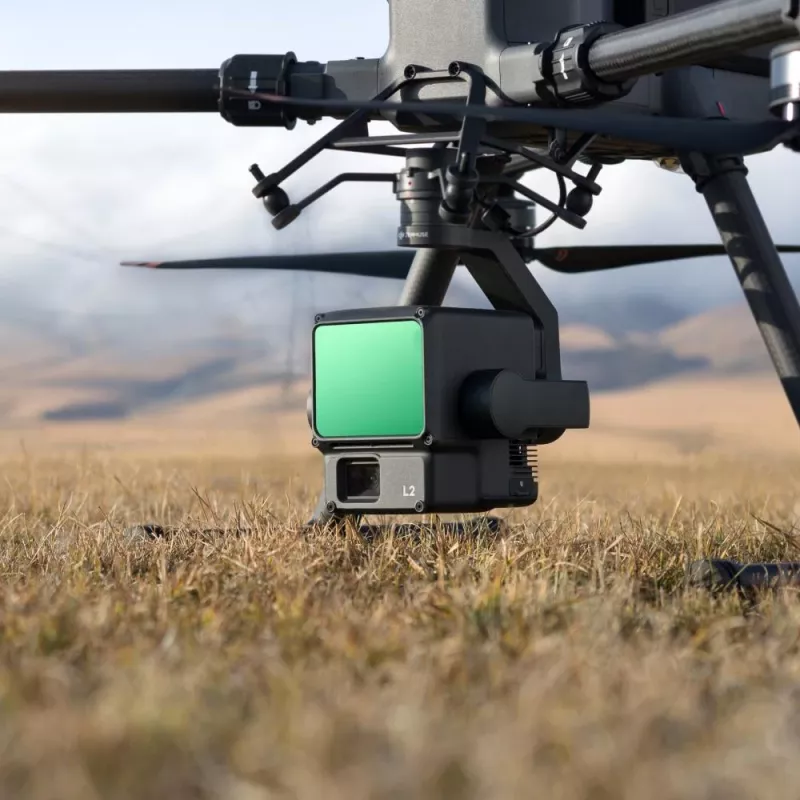

Install the Zenmuse L2 4K module onto a compatible DJI aircraft following the manufacturer's mechanical mounting and electrical connection procedures. Power and control are managed through the drone's payload interface; after mounting, perform system checks and gimbal calibration as instructed by the platform documentation. Use the flight controller or mobile app to adjust camera settings, framing and recording functions prior to takeoff. During operation, monitor live video feed and telemetry to ensure proper exposure and stabilization.

Recommendations

For optimal results, calibrate the gimbal before each mission and verify firmware compatibility between the camera module and the aircraft. Select appropriate exposure settings for lighting conditions and use stabilization features to minimize motion artifacts. When performing inspection or mapping flights, plan flight paths with consistent altitude and overlap to achieve uniform coverage.
