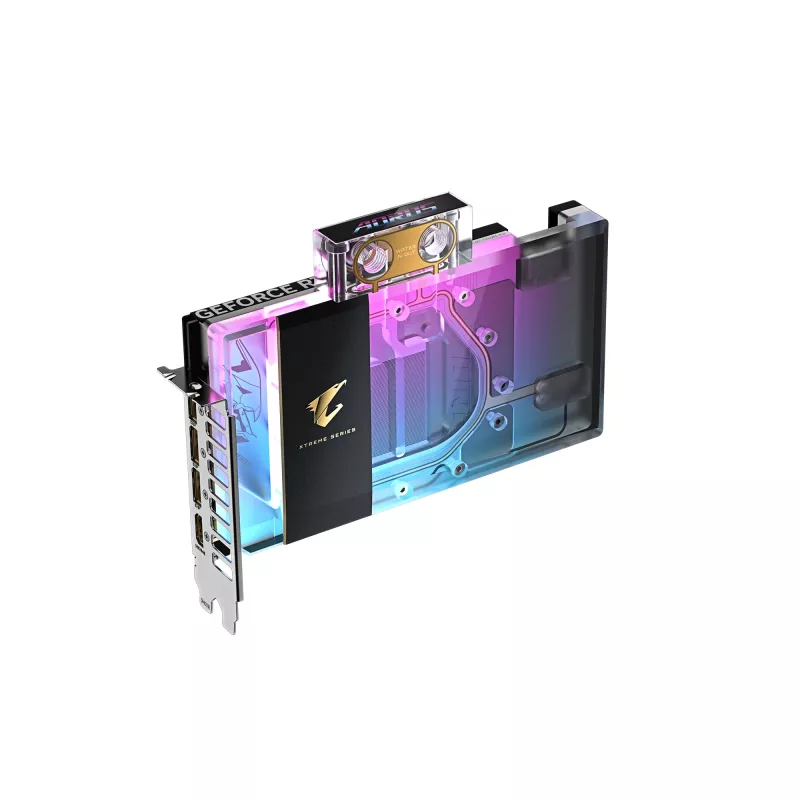

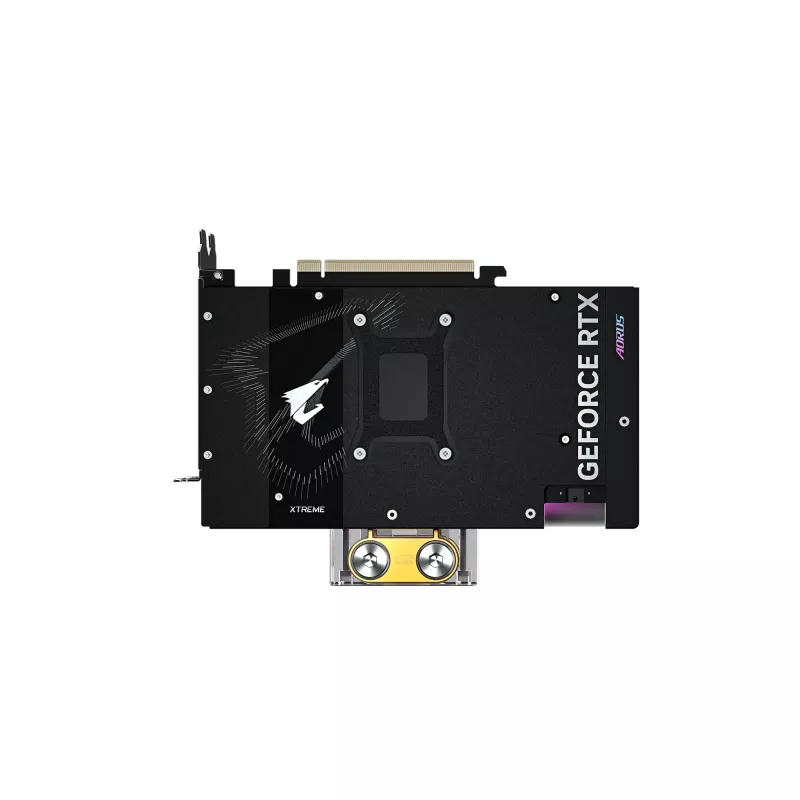

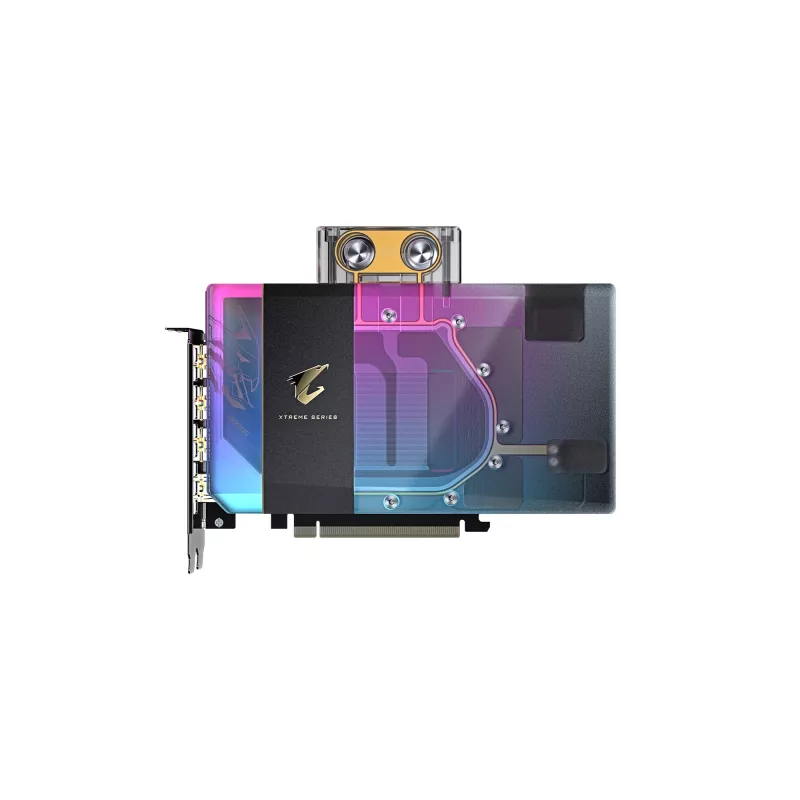

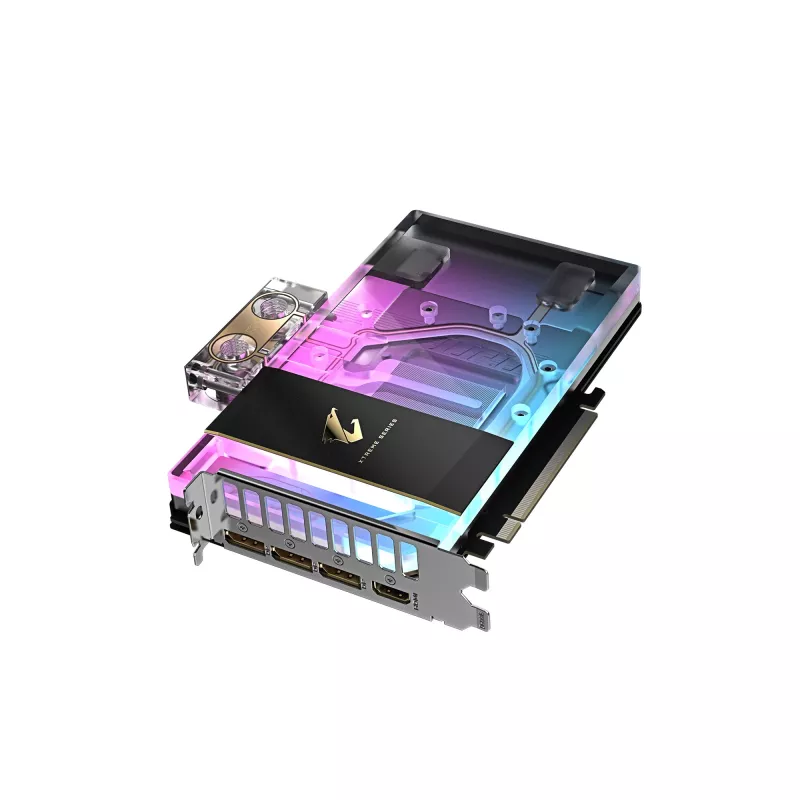

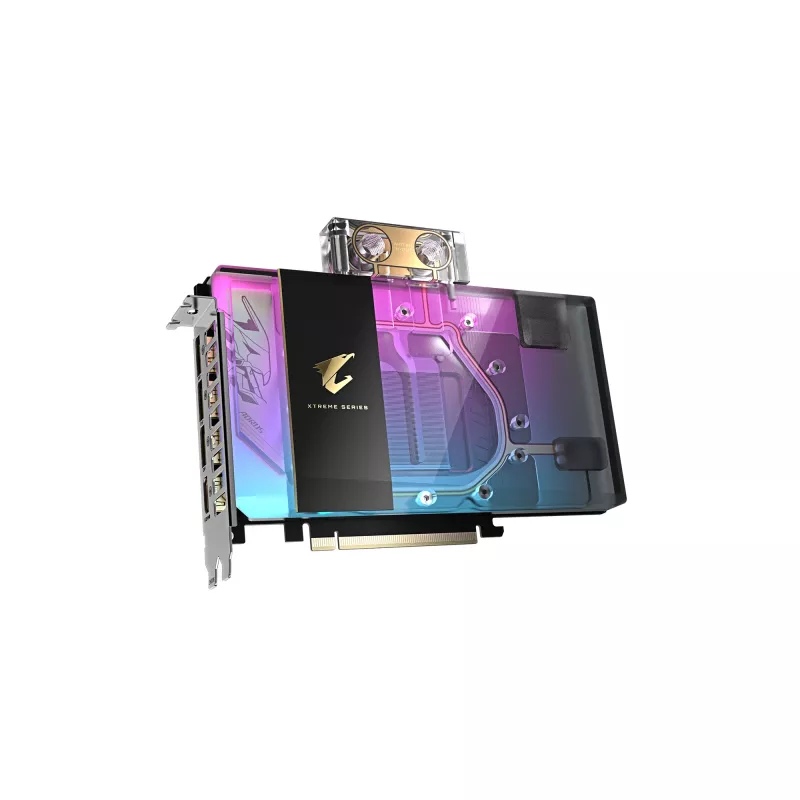

Graphics Card NVIDIA GeForce RTX 5080 16GB GDDR7

The GIGABYTE AORUS GeForce RTX 5080 XTREME WATERFORCE WB 16G is a high-performance graphics card designed for demanding gaming, content creation and professional visualization. It integrates an NVIDIA GeForce RTX 5080 GPU with 16 GB of GDDR7 memory on a 256-bit bus and a factory-tuned core clock up to 2805 MHz. The card supports modern graphics APIs including DirectX 12.0 and OpenGL 4.6, and can drive displays at up to 7680 x 4320 resolution. Cooling is provided by a hybrid solution with a waterblock-ready design and three fans for efficient thermal management in different system configurations, while multiple display outputs ensure broad compatibility with current monitors.

Advantages

The combination of a GeForce RTX 5080 GPU and 16 GB of GDDR7 memory provides high bandwidth and low latency for real-time ray tracing, complex shaders and large texture sets. The 256-bit memory bus and 30000 MHz effective memory clock enable fast data throughput for high-resolution rendering and texture streaming. A high factory core clock and support for PCI Express x16 5.0 deliver strong single-GPU performance and efficient communication with modern motherboards. The card’s cooling solution is designed to maintain stable frequencies under load and the set of display outputs (three DisplayPort 2.1a and one HDMI 2.1b) supports multi-monitor and high-refresh-rate setups.

Suitable for

• 4K and 8K gaming at high detail settings
• Real-time ray tracing and DLSS-accelerated workflows
• 3D rendering, visual effects and GPU-accelerated compute tasks
• Multimonitor workstations and high-resolution display setups

Key specifications

• Graphics processor: GeForce RTX 5080
• Video memory: 16 GB GDDR7
• Effective memory clock: 30000 MHz
• Memory interface: 256-bit
• Interface: PCI Express x16 5.0
• Maximum supported resolution: 7680 x 4320
• Display outputs: 3 × DisplayPort 2.1a, 1 × HDMI 2.1b
• Supported APIs: DirectX 12.0, OpenGL 4.6
• Weight: 2 kg

How to use

Install the graphics card into a compatible PCI Express x16 5.0 slot on a motherboard that provides adequate physical space and cooling. Connect power cables according to the power supply and manufacturer instructions, mount the card securely in the case and attach the waterblock or connect to the system’s liquid cooling loop if using the waterforce variant. Install the latest NVIDIA drivers and GIGABYTE utilities to enable full feature support, then configure resolution, refresh rate and GPU settings through the operating system or GPU control panel.

Recommendations

For stable high-performance operation, use a power supply with sufficient capacity and quality rails, ensure case airflow or liquid cooling is properly configured, and keep drivers updated. When targeting high resolutions or ray-traced workloads, pair the card with a modern CPU and fast system memory to avoid bottlenecks.
