GIGABYTE A520M H ARGB Motherboard - Supports AMD Ryzen 5000 Series CPUs, up to 5100MHz DDR4 (OC), PCIe 3.0 x4 M.2, 1 GbE LAN, USB 3.2 Gen 1

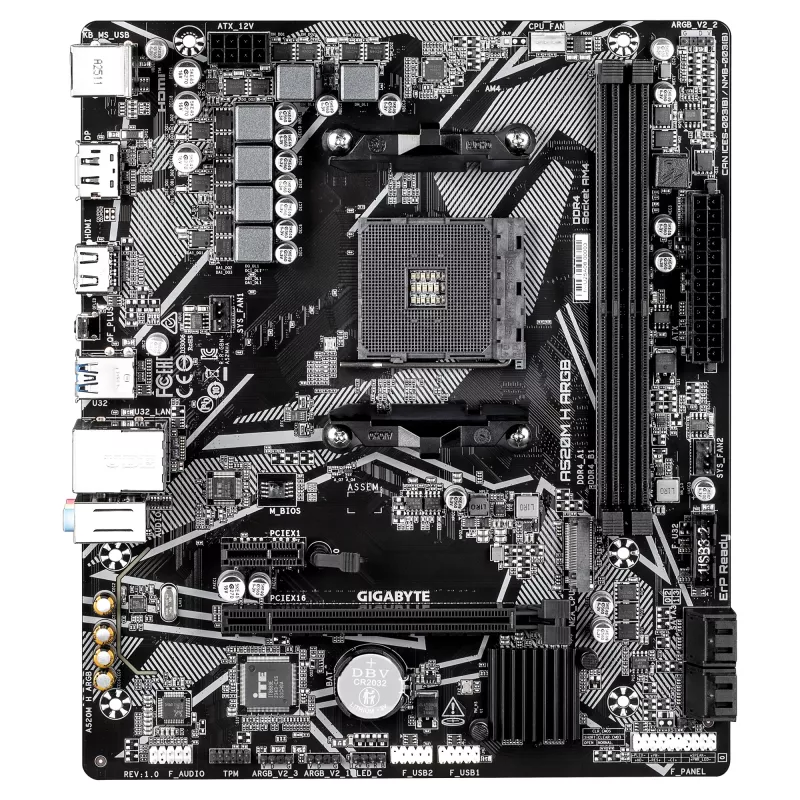

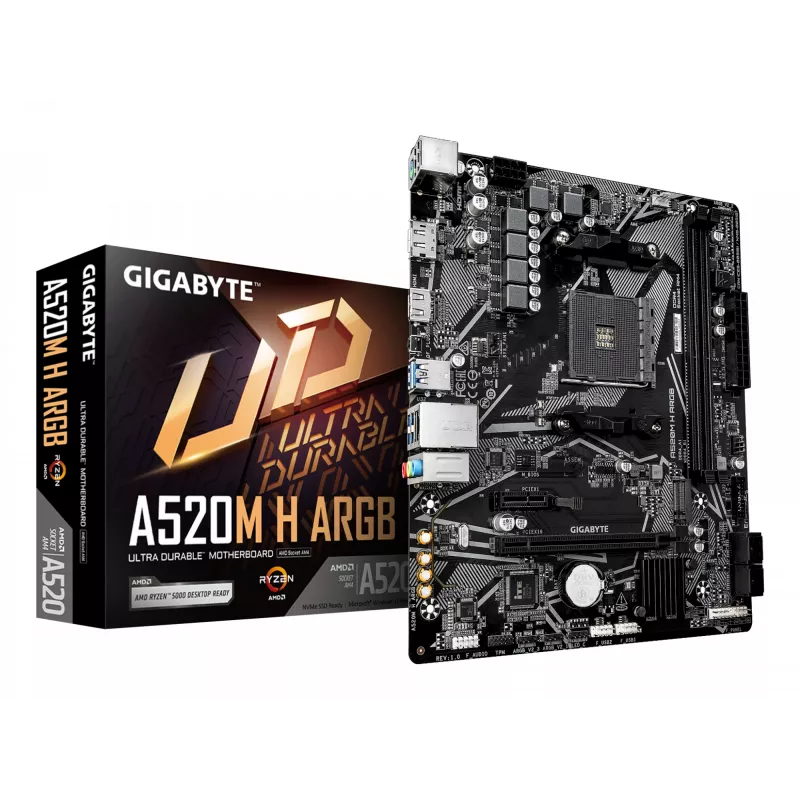

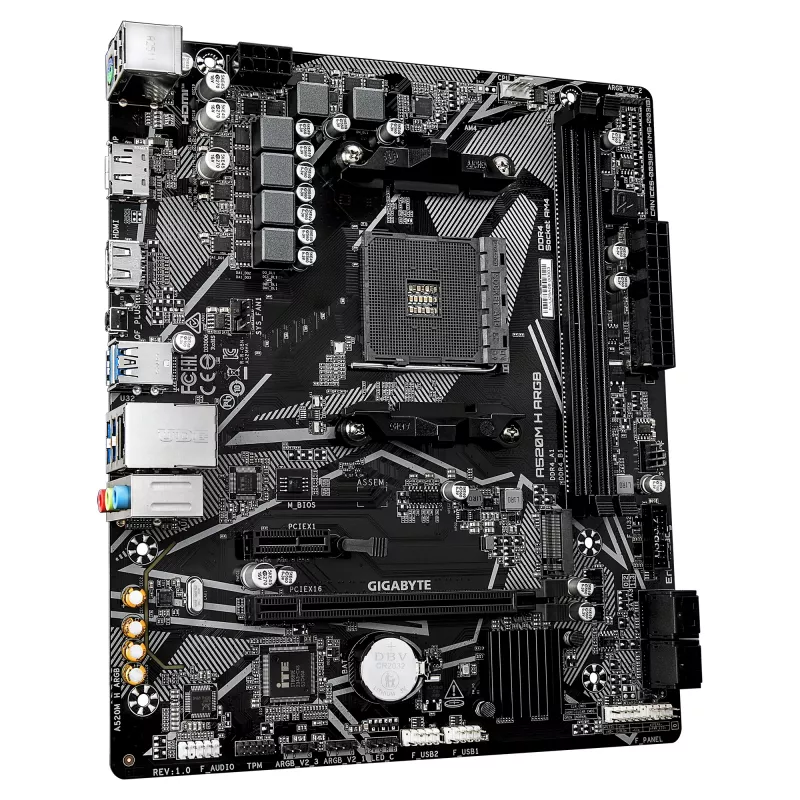

GIGABYTE A520M H ARGB is a Micro ATX motherboard based on the AMD A520 chipset with Socket AM4, compatible with AMD Ryzen 3000, 4000 (G-series) and 5000 series processors. The board provides two DIMM slots supporting DDR4 memory up to 64 GB, with overclocking support to higher frequencies, a PCIe 3.0 x16 slot for a discrete graphics card and a PCIe 3.0 x4 M.2 slot for NVMe SSDs. Onboard connectivity includes Gigabit Ethernet and USB 3.2 Gen 1 ports, while storage options cover SATA III and M.2. Integrated ARGB header allows basic system lighting control. This compact Micro ATX layout is suitable for space-efficient desktop or home/office PC builds that require reliable fundamentals and straightforward expandability.

Advantages

The motherboard combines a compact Micro ATX form factor with essential modern features such as PCIe Gen3 M.2 support for fast NVMe storage and dual-channel DDR4 memory capability. Its integrated ARGB header provides an option for synchronized lighting without occupying additional headers, and the Gigabit LAN delivers standard wired networking performance for home, office or light gaming setups. A streamlined feature set keeps the platform cost-effective while preserving compatibility with a wide range of AM4 processors and common expansion cards.

Suitable for

• Compact desktop builds for home and office use
• Budget or mid-range gaming systems using a single discrete GPU
• Multimedia PCs with NVMe SSD storage for faster boot and load times
• System upgrades where AM4 CPU compatibility and DDR4 support are required

Key specifications

• Form factor: Micro ATX
• Chipset: AMD A520
• CPU socket: Socket AM4 (supports AMD Ryzen 3000/4000/5000 series)
• Memory: 2× DIMM DDR4, up to 64 GB, dual-channel, OC support to higher frequencies
• PCI Express: 1× PCIe 3.0 x16 slot
• M.2: 1× PCIe 3.0 x4 M.2 slot (NVMe & SATA mode support)
• Storage interfaces: SATA III ports for additional drives
• LAN: Gigabit Ethernet (Realtek RTL8111-class)

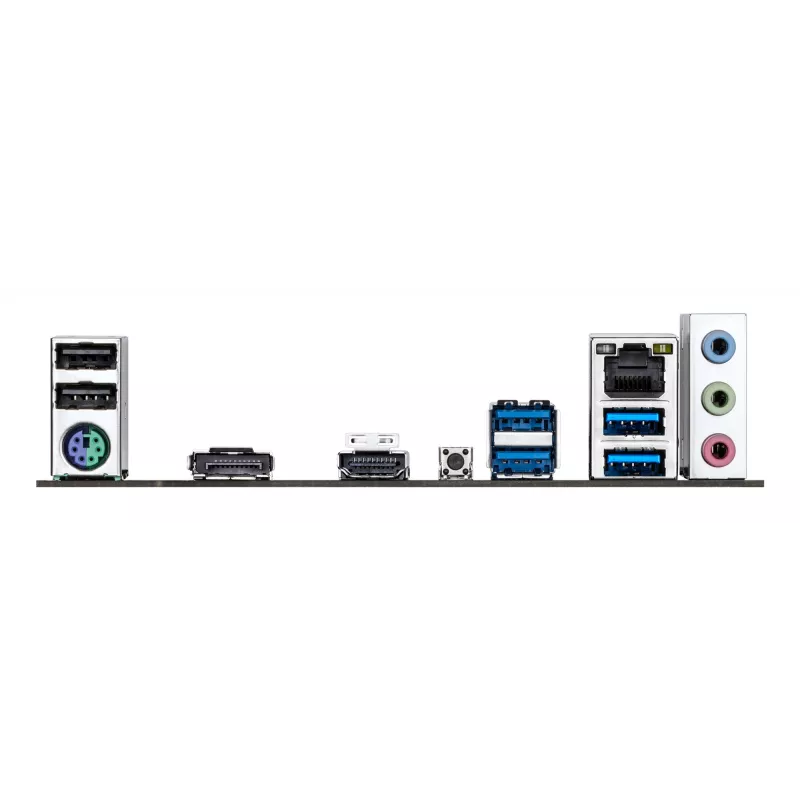

• USB: USB 3.2 Gen 1 ports for high-speed peripheral connections
• Audio: Multi-channel onboard audio with high-quality capacitors
• Onboard lighting header: ARGB header for addressable RGB strips
• BIOS: UEFI firmware with standard clear CMOS option
• Weight (approx.): 0.7 kg

How to use

Install the GIGABYTE A520M H ARGB into a compatible Micro ATX or larger chassis by aligning the motherboard standoffs and securing the board with screws. Populate the Socket AM4 with a supported Ryzen CPU, install a compatible CPU cooler, and insert up to two DDR4 memory modules into the DIMM slots following the motherboard manual for recommended slot population. Connect an NVMe SSD to the M.2 slot or SATA drives to the SATA III ports, and install a discrete graphics card into the PCIe x16 slot if required. Attach power connectors from a compatible PSU, connect front-panel I/O cables, storage and peripherals, then power on to enter the UEFI BIOS to configure boot order, memory settings and enable any desired overclocking profiles.

Recommendations

For stable operation, use a quality power supply sized according to your CPU and GPU requirements, install memory modules of the same capacity and speed for optimal dual-channel performance, and ensure the latest UEFI BIOS is applied for broadest CPU compatibility. When using ARGB lighting, connect supported addressable LED strips to the ARGB header and control them through compatible software or motherboard lighting utilities. Maintain adequate case airflow to preserve component longevity, especially when enabling memory overclocking.
