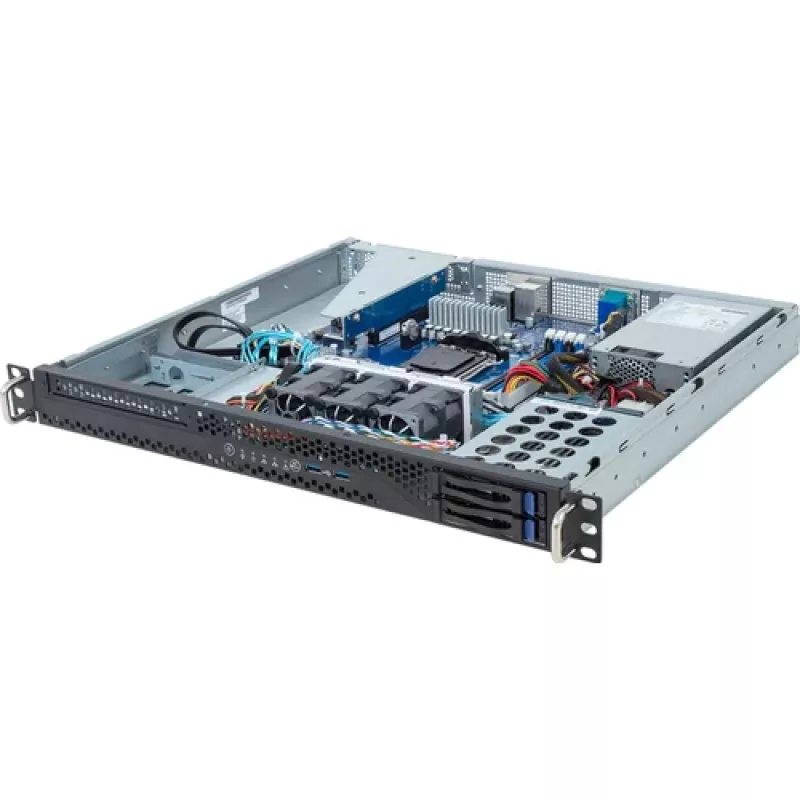

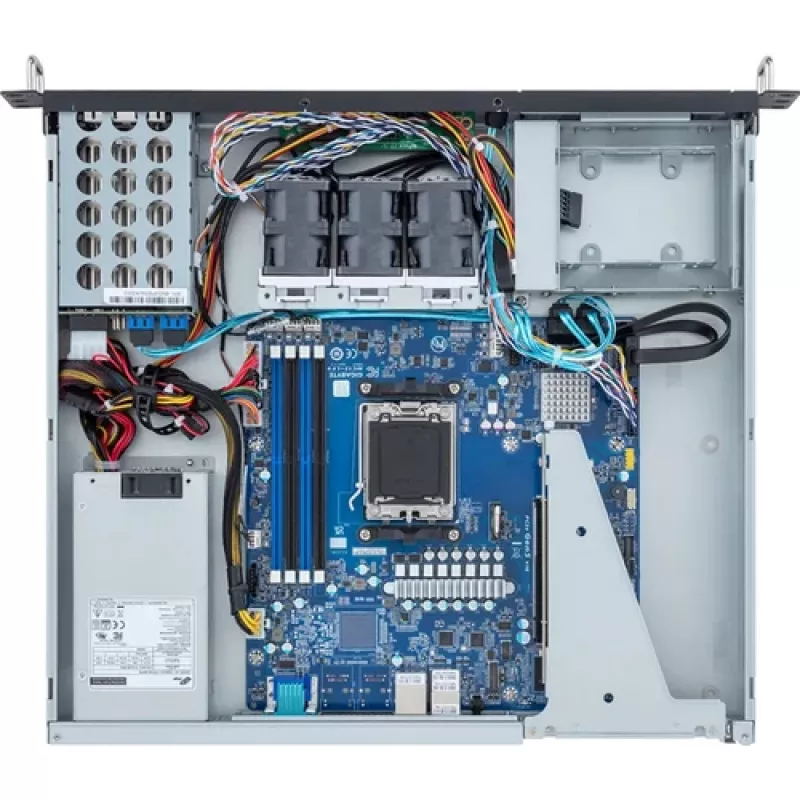

GIGA COMPUTING Gigabyte R113-C10-AA02 1U Rackmount Server Barebone, AMD Ryzen AM4, 4x 2.5 inch Hot-Swap Bays, 400W PSU

This 1U rackmount server barebone delivers exceptional density and performance for space-constrained data centers and edge deployments. Engineered for AMD Ryzen processors, it combines flexible storage options with robust networking in a compact chassis.

Advantages

Maximize rack space without compromising on power. The R113-C10-AA02 supports the latest AMD AM4 processors, including Ryzen 5000 series, offering high-core-count performance for virtualization, cloud computing, and intensive workloads. With four hot-swap 2.5-inch drive bays and an M.2 slot, it provides versatile storage configurations. Dual Gigabit Ethernet ports ensure reliable network connectivity, while the dedicated management port allows for efficient remote administration.

Suitable for

• Enterprise server rooms and data centers
• Edge computing and CDN nodes
• Virtualization and private cloud infrastructure
• Network security appliances and firewalls
• High-performance computing clusters

Key specifications

• 1U Rackmount Form Factor
• AMD AM4 Socket, Supports AMD Ryzen 5000/4000G/3000 Series
• AMD B550 Chipset
• 4x DDR4 DIMM Slots, up to 128GB ECC/non-ECC UDIMM, 3200MHz
• 4x 2.5" Hot-Swap SATA/SAS Drive Bays (SATA default)
• 1x M.2 Slot (PCIe Gen4 x4, 2280/22110)
• 1x PCIe Gen4 x16 Low-Profile Expansion Slot
• 2x 1GbE LAN (Intel I210AT) + 1x Dedicated Management LAN
• ASPEED AST2500 BMC for Remote Management
• 400W 80 PLUS Bronze Power Supply

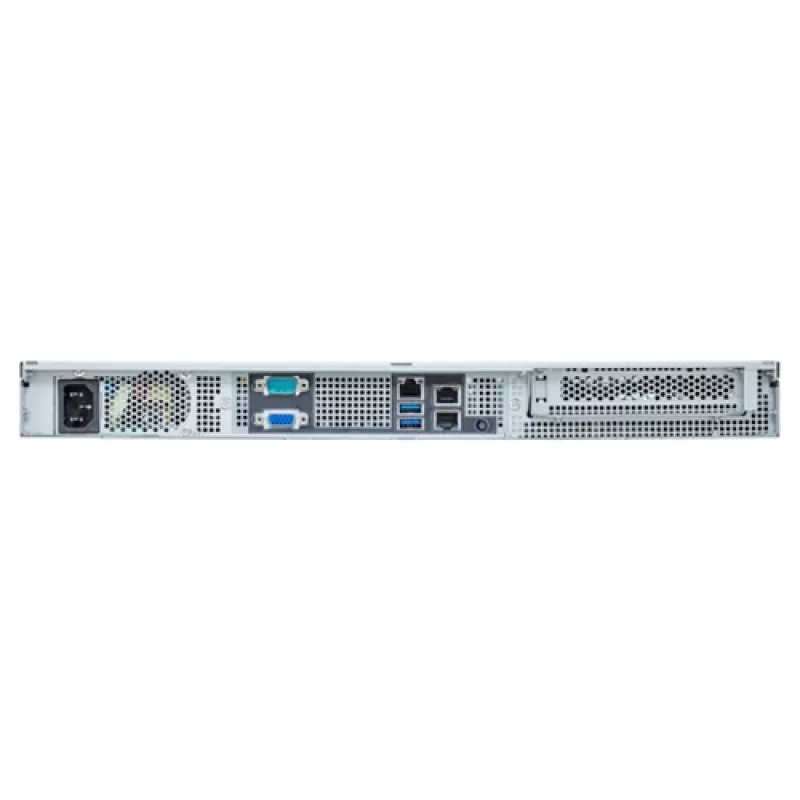

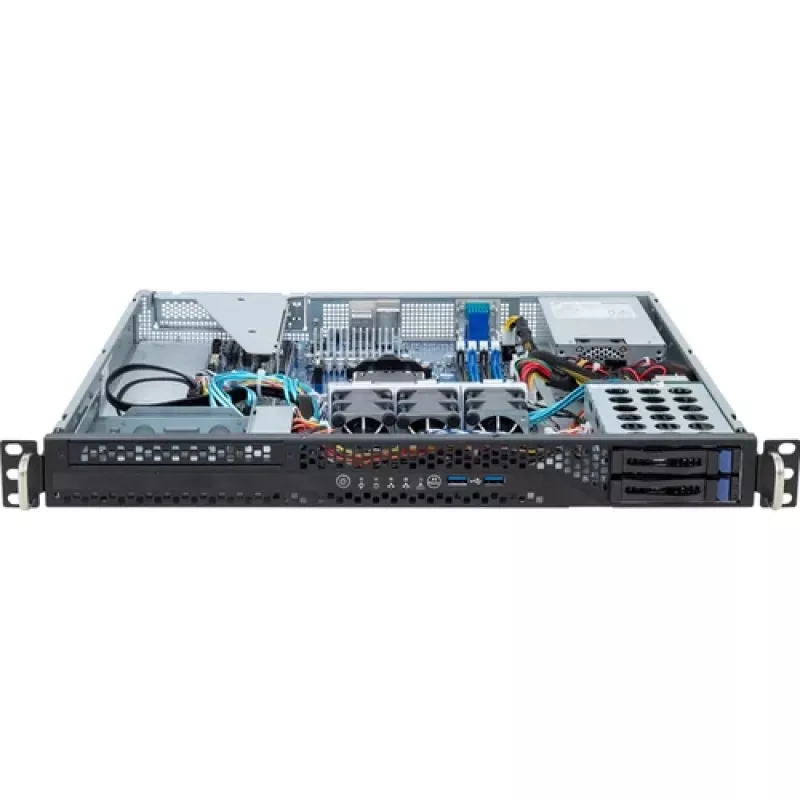

• Front: 2x USB 3.0, 1x VGA; Rear: 2x USB 3.0, 1x VGA

Recommendations

For optimal performance, pair with AMD Ryzen 5000 series processors and high-speed DDR4 ECC memory. Ideal for virtualization, edge computing, and network security applications.
