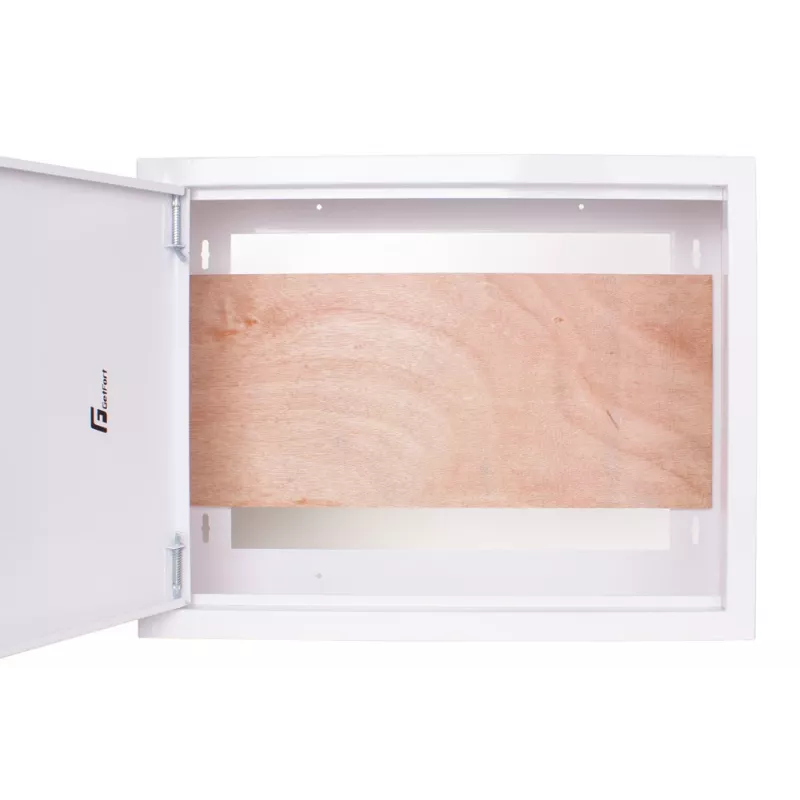

Getfort TPR-8 Metal Enclosure 700x500x200 mm v2

The Getfort TPR-8 Metal Enclosure is a robust and reliable solution for housing electrical, telecommunication, and monitoring equipment. With external dimensions of 700 x 500 x 200 mm, this wall-mountable enclosure offers ample space for internal components while maintaining a compact footprint. Constructed from powder-coated steel with a light grey (RAL 7035) finish, it provides excellent durability and corrosion resistance for both indoor and outdoor applications.

Advantages

This enclosure features a single hinged door with a key lock (2 keys included) for secure access. The IP54 protection rating ensures protection against dust and splashes, making it suitable for harsh environments. The included galvanized steel mounting plate simplifies internal installation, while the bottom gland plate allows for easy cable entry. The polyurethane gasket provides a reliable seal, and the electrostatic powder coating enhances UV and corrosion resistance.

Suitable for

• Electrical distribution and control systems
• Telecommunication equipment housing
• Monitoring and surveillance systems
• Industrial automation and process control
• Outdoor installations requiring weather protection

Key specifications

• External dimensions (H x W x D): 700 x 500 x 200 mm
• Protection rating: IP54
• Material: Powder-coated steel (body 1.0 mm, door 1.2 mm)
• Colour: Light grey (RAL 7035)
• Mounting: Wall-mountable with galvanized steel mounting plate
• Door: Single hinged with key lock (2 keys included)
• Cable entry: Bottom gland plate
• Operating temperature: -25°C to +60°C
• Gasket: Polyurethane

Recommendations

For optimal installation, ensure the wall is capable of supporting the enclosure's weight. Use appropriate fixings (not included) for secure mounting. The enclosure is designed for both indoor and outdoor use, but avoid direct exposure to extreme weather conditions beyond its IP54 rating. Regular inspection of the gasket and lock mechanism is recommended to maintain performance.
