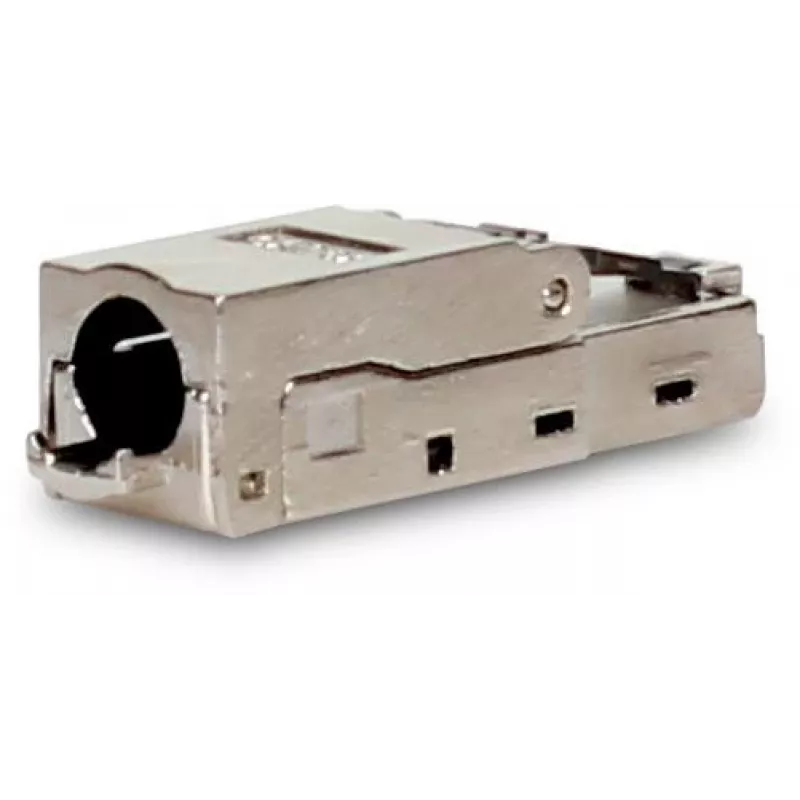

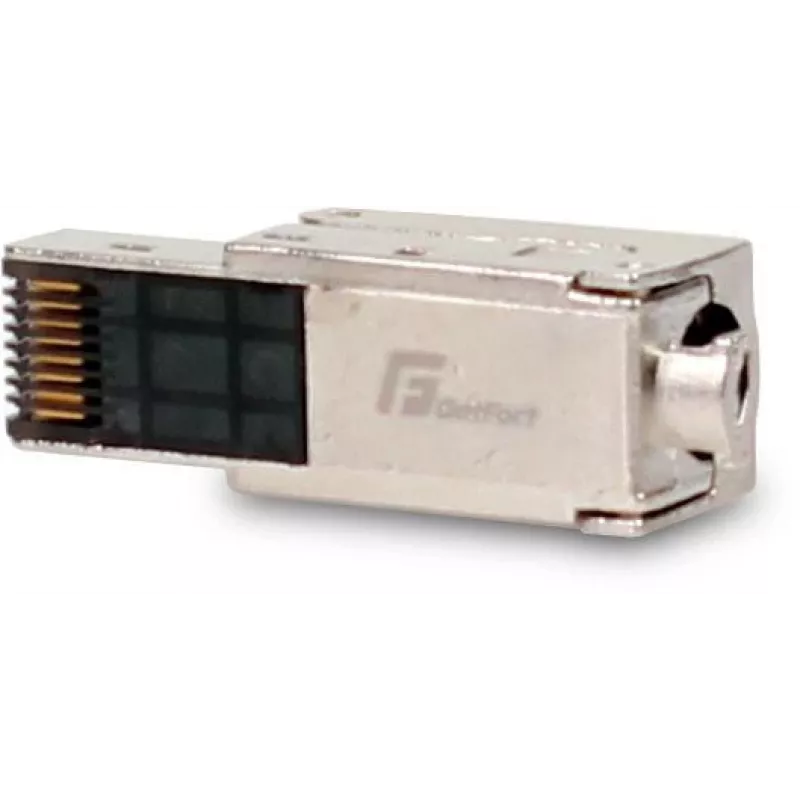

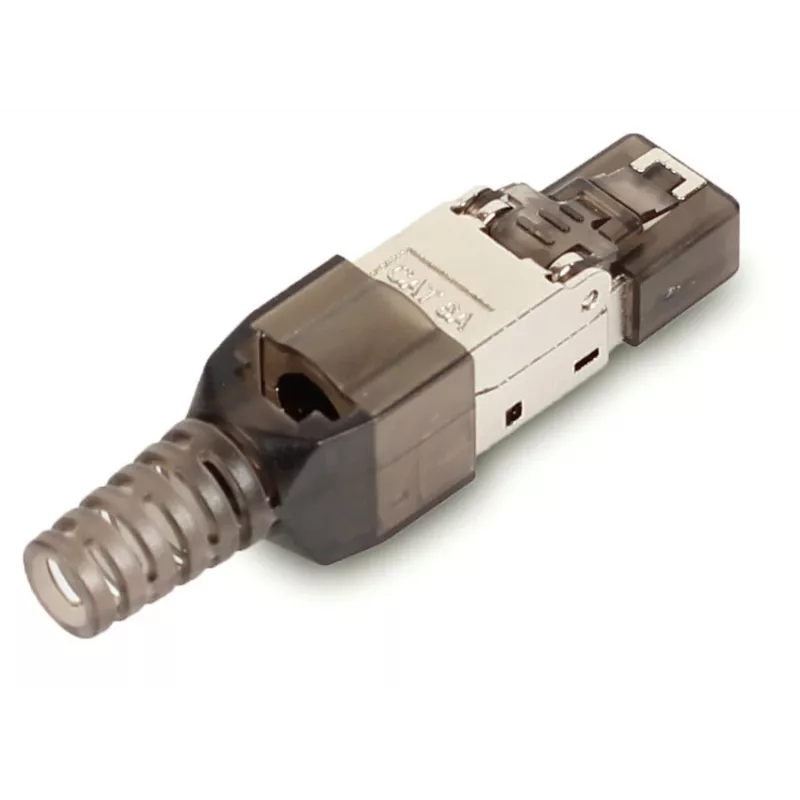

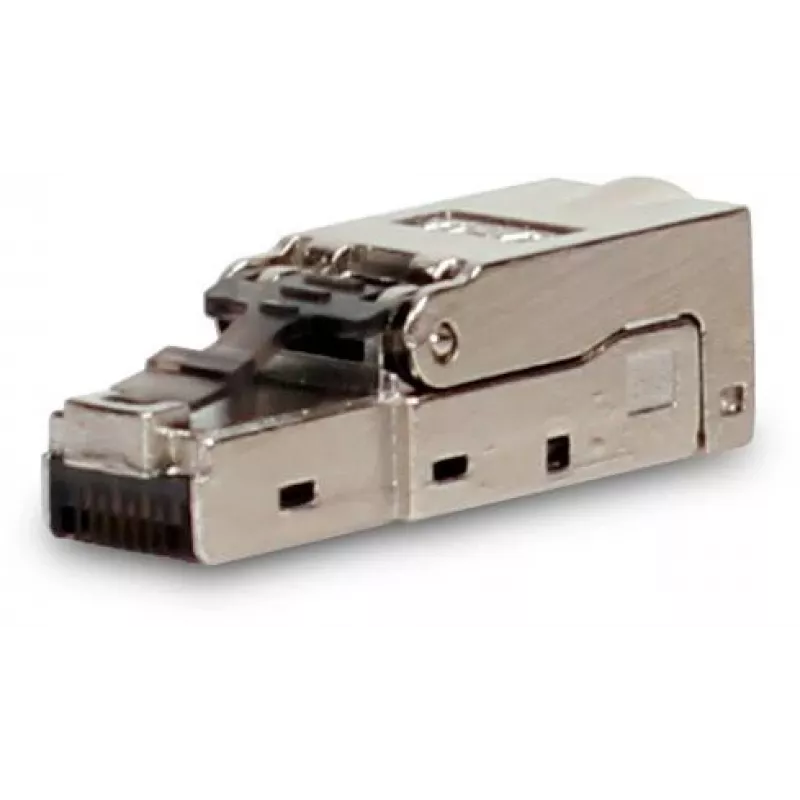

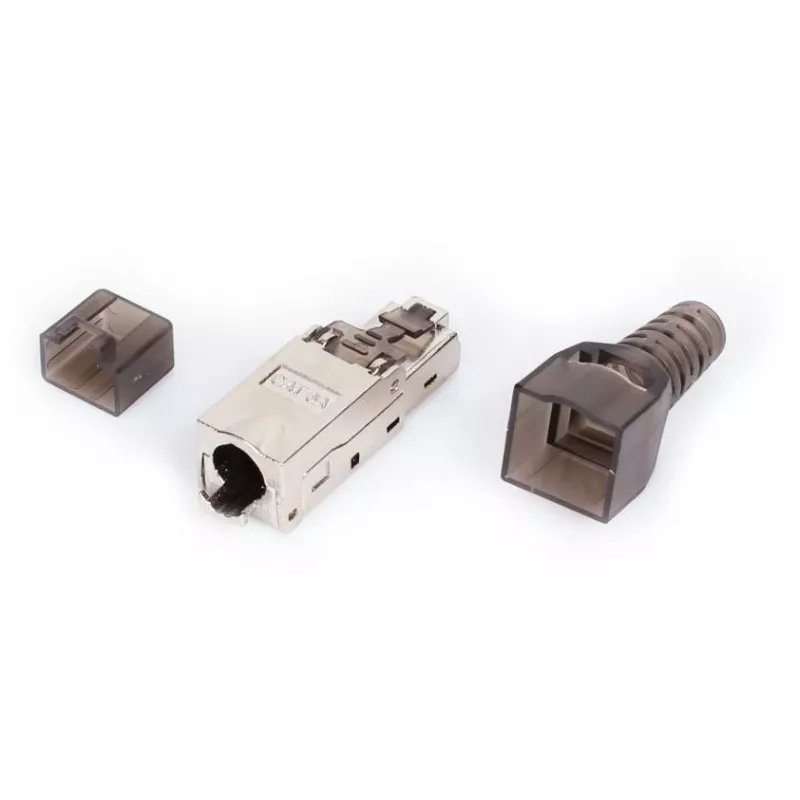

GETFORT RJ45 Cat.6A FTP Toolless Modular Plug 8P8C

The GETFORT GF-RJ45-6AFTP-MB is a high-performance, toolless RJ45 modular plug designed for Cat.6A FTP (Foiled Twisted Pair) cabling. This field-terminable connector supports 10 Gigabit Ethernet (10GBASE-T) and operates at frequencies up to 500 MHz, making it ideal for demanding network environments such as data centers, industrial Ethernet, and high-speed LAN installations.

Advantages

This toolless connector eliminates the need for specialized crimping tools, allowing for quick and easy field termination. Its robust zinc alloy housing provides excellent shielding against electromagnetic interference (EMI), ensuring reliable data transmission. The 50-micron gold-plated contacts offer superior conductivity and corrosion resistance, while the integrated strain relief protects the cable from stress and extends the lifespan of the connection. Additionally, the plug is reusable, reducing waste and cost.

Suitable for

• Data centers requiring high-speed 10G Ethernet connections
• Industrial Ethernet networks in harsh environments
• LAN installations where reliable, shielded connections are critical
• Field technicians needing quick, tool-free termination

Key specifications

• Connector Type: RJ45 Plug (Male)
• Cable Category: Cat.6A (Category 6A)
• Shielding Type: FTP (Foiled Twisted Pair) / Shielded
• Wiring Standard: 8P8C
• Termination Method: Toolless / Field Terminable
• Data Transfer Rate: Up to 10 Gigabit Ethernet (10GBASE-T)
• Frequency Bandwidth: Up to 500 MHz
• Conductor Compatibility: Solid and Stranded Conductors (22-26 AWG)
• Contact Plating: 50 Micron Gold-plated
• Contact Material: Phosphor Bronze
• Housing Material: Zinc Alloy (Shielded) / High-impact PC
• Compliance: TIA/EIA-568-C.2, ISO/IEC 11801
• Operating Temperature: -10°C to 60°C
• Durability: >750 Mating Cycles
• Insulation Resistance: >500 MΩ @ 100V DC
• Dielectric Strength: 1000V AC RMS, 60Hz, 1 min
• Color: Silver/Black

Recommendations

For optimal performance, use with Cat.6A FTP solid or stranded cable. Ensure proper cable preparation and insertion depth as per manufacturer guidelines. This plug is compatible with standard RJ45 keystone jacks and patch panels.
