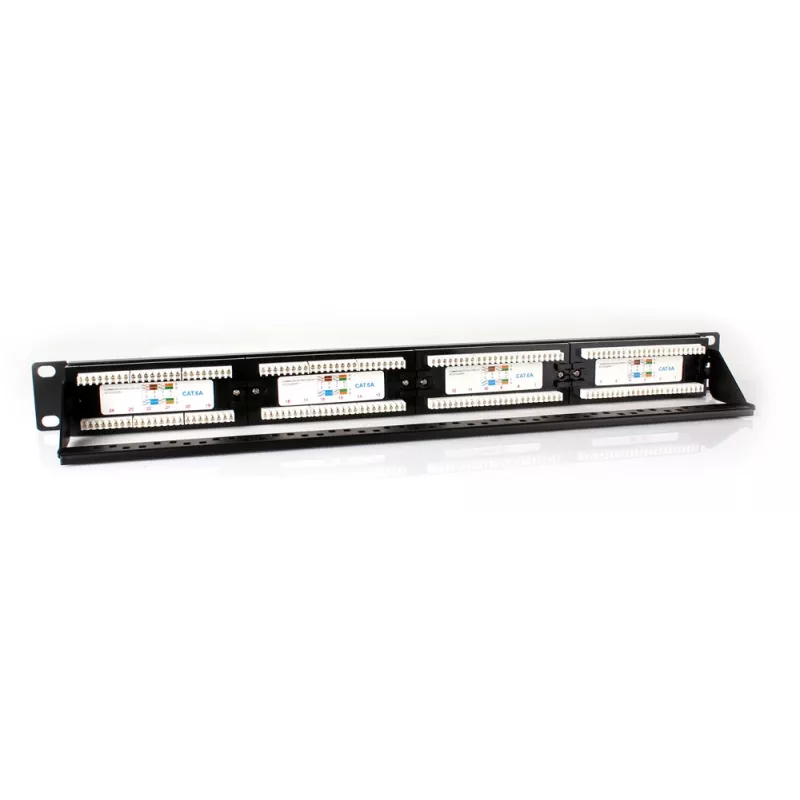

GETFORT PGF-6AUTP24-B5 Cat.6A UTP 24-Port Patch Panel 1U 19 inch Black

The GETFORT PGF-6AUTP24-B5 is a high-performance Cat.6A UTP patch panel designed for 19-inch racks, providing 24 RJ45 ports in a compact 1U form factor. It supports 10 Gigabit Ethernet (10GBASE-T) with a bandwidth of up to 500 MHz, making it ideal for high-speed data center and enterprise network installations. The panel features gold-plated contacts for reliable connectivity and is compatible with 110 or Krone impact tools for easy termination.

Advantages

This patch panel ensures optimal signal integrity and minimal crosstalk, thanks to its robust construction and compliance with Cat.6A standards. The 50µm gold-plated phosphor bronze contacts provide excellent corrosion resistance and long-term reliability. Its 1U height saves valuable rack space while accommodating 24 ports, and the color-coded wiring scheme (TIA/EIA 568A/B) simplifies installation.

Suitable for

• Data center cabling infrastructure
• Enterprise network closets
• Structured cabling systems requiring 10GBASE-T support
• High-density patching applications

Key specifications

• Product Type: Network Patch Panel
• Category: Cat.6A (Category 6 Augmented)
• Shielding: UTP (Unshielded Twisted Pair)
• Number of Ports: 24
• Rack Unit Size: 1U
• Mounting Type: 19-inch Rackmount
• Front Connector Type: RJ45 (8P8C) Jacks
• Rear Termination Type: IDC (Insulation Displacement Connector)
• Wiring Standard: TIA/EIA 568A/B (Color-coded)
• Data Transfer Rate: Up to 10 Gigabit Ethernet (10GBASE-T)
• Frequency Bandwidth: Up to 500 MHz
• Contact Plating: 50µm Gold-plated Phosphor Bronze
• Housing Material: Cold-rolled Steel
• Color: Black
• Termination Tool Compatibility: 110 or Krone Impact Tool
• Operating Temperature: -10°C to 60°C
• Certifications: RoHS, CE

Recommendations

For optimal performance, use with Cat.6A or higher rated patch cables and ensure proper grounding of the rack. Terminate using a 110 or Krone impact tool following the T568A or T568B wiring standard.
