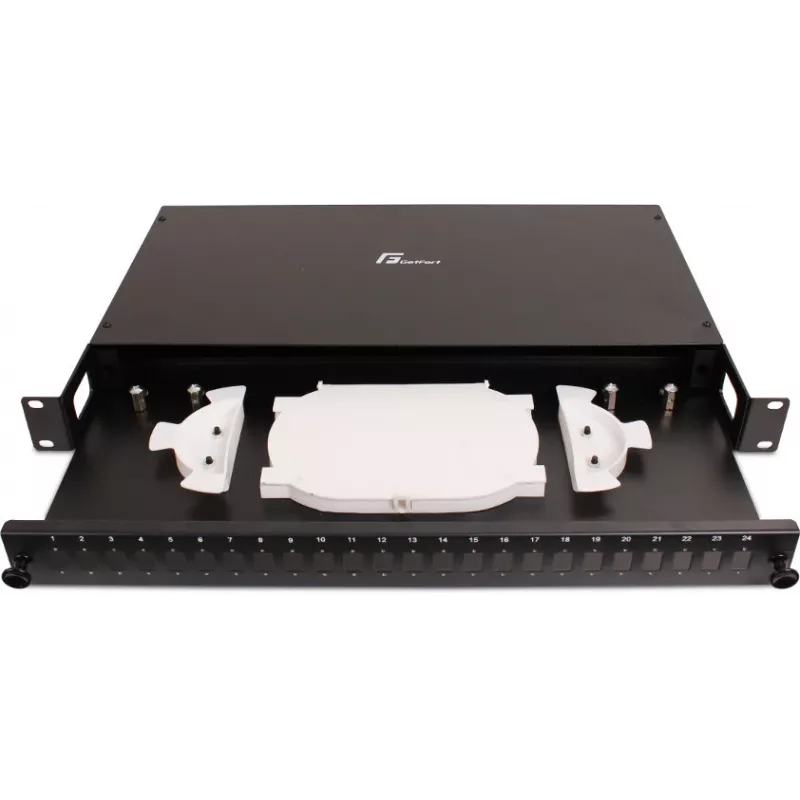

GETFORT GF-FO01-SX 1U 19-Inch 24xSC Simplex Fiber Optic Patch Panel with Splice Tray

The GETFORT GF-FO01-SX is a high-quality 1U 19-inch fiber optic patch panel designed for efficient network distribution, termination, and splicing. With 24 SC simplex ports, this panel provides reliable connectivity for both single-mode and multi-mode fiber applications. Its robust powder-coated steel construction and integrated cable management ensure durability and neat installation in any data center or telecom room.

Advantages

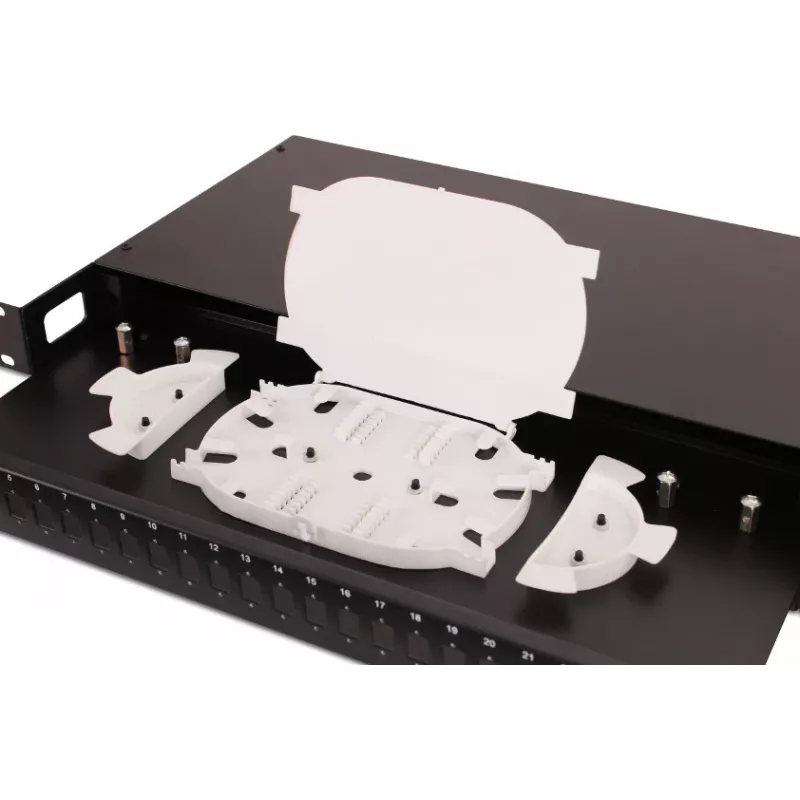

This patch panel offers easy installation with a sliding tray design, allowing convenient access to fiber connections. The rear cable entry and integrated routing guides simplify cable organization and strain relief, reducing signal loss and maintenance time. RoHS compliance guarantees environmental safety.

Suitable for

• Fiber optic network distribution in data centers
• Telecommunication rooms and server racks
• Termination and splicing of fiber cables
• Single-mode and multi-mode fiber networks

Key specifications

• Form Factor: 1U Rackmount
• Rack Width: 19 inches
• Port Capacity: 24 Fibers
• Connector Type: SC Simplex
• Material: Powder-coated Steel
• Color: Black
• Tray Type: Sliding Tray
• Cable Entry: Rear
• Included Accessories: 1x Splice Tray, Cable Management Kit, Mounting Screws
• Protection Rating: IP20
• Operating Temperature: -20°C to +70°C
• Humidity: 10% to 90% non-condensing
• Standards Compliance: RoHS Compliant

Recommendations

For optimal performance, use with high-quality SC simplex pigtails or patch cables. Ensure proper cable management to maintain bend radius and minimize signal attenuation.
