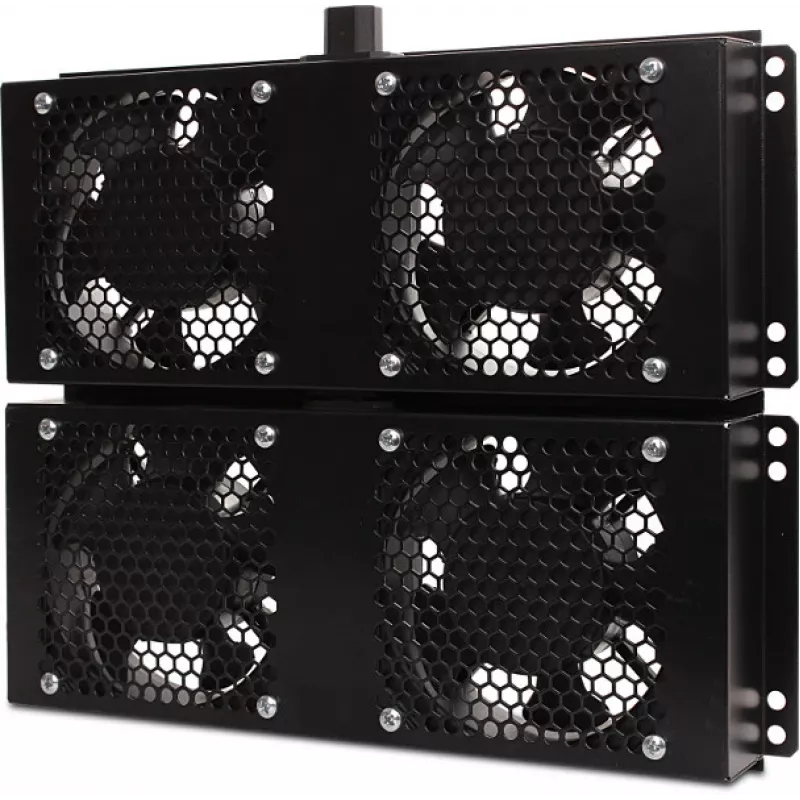

Getfort GF-FAN4 2U 19-Inch Rack Mount Ventilation Panel with 4 Fans, 120mm, 230V, Black

The Getfort GF-FAN4 is a robust 2U 19-inch rack mount ventilation panel designed to provide efficient cooling for server cabinets and network racks. Equipped with four high-performance 120mm fans, it delivers a total airflow of 480 m³/h, ensuring optimal temperature management for your equipment. The panel operates on 230V AC power and features a durable steel construction with a sleek black finish.

Advantages

Efficient cooling with four 120mm ball bearing fans ensures long-lasting performance and low noise levels. The 2U form factor fits seamlessly into standard 19-inch racks, and the included 1.8m power cable simplifies installation. Protective metal grilles enhance safety, while CE and RoHS certifications guarantee compliance with European standards.

Suitable for

• Server rooms and data centers requiring additional ventilation
• Network cabinets with heat-generating equipment
• Telecommunications racks needing active cooling
• Industrial enclosures where reliable airflow is critical

Key specifications

• Product Type: Ventilation Panel
• Mounting Standard: 19-inch Rack Mount
• Rack Units: 2U
• Number of Fans: 4
• Fan Diameter: 120 mm
• Fan Dimensions: 120 x 120 x 38 mm (each)
• Power Supply: 230V AC, 50Hz
• Power Consumption: 80 W
• Total Airflow: 480 m³/h
• Noise Level: 50 dB
• Material: Steel
• Color: Black

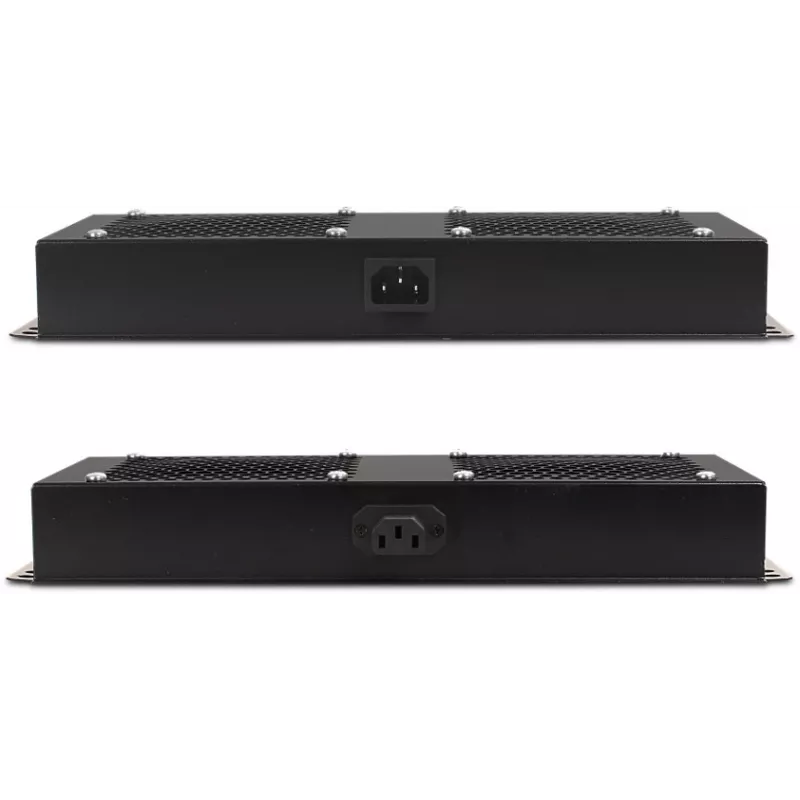

• Power Connector: IEC C14 inlet

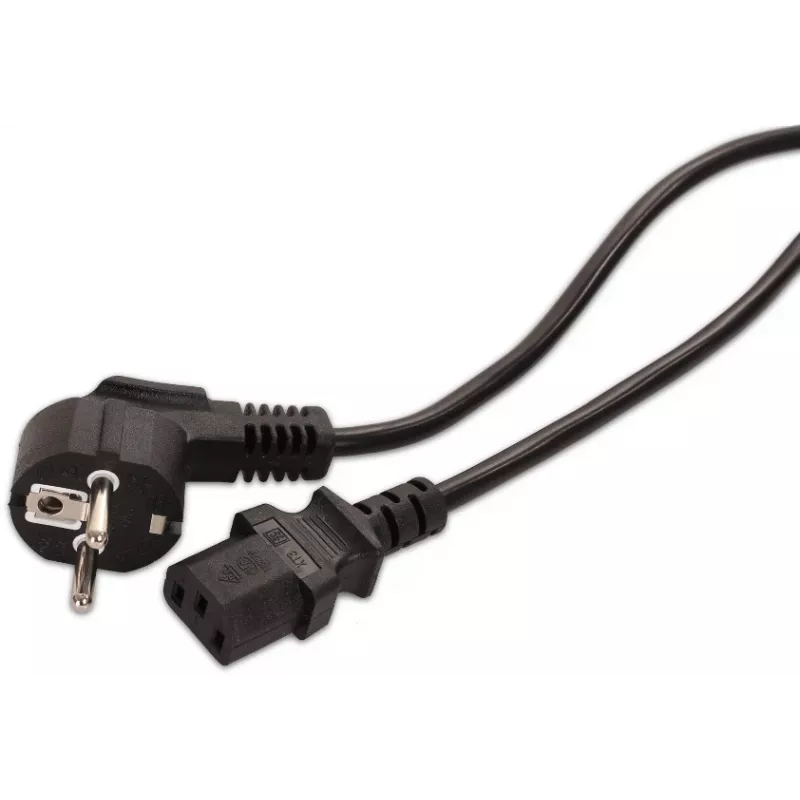

• Power Cable Included: Yes (1.8m)
• Thermostat Control: No
• Bearing Type: Ball Bearing
• Operating Temperature: -10°C to 60°C
• Certifications: CE, RoHS
• Protective Grilles: Yes (metal)

Recommendations

For optimal cooling performance, install the panel in a well-ventilated rack and ensure proper airflow management. Pair with a thermostat or temperature sensor for automated control if needed.
