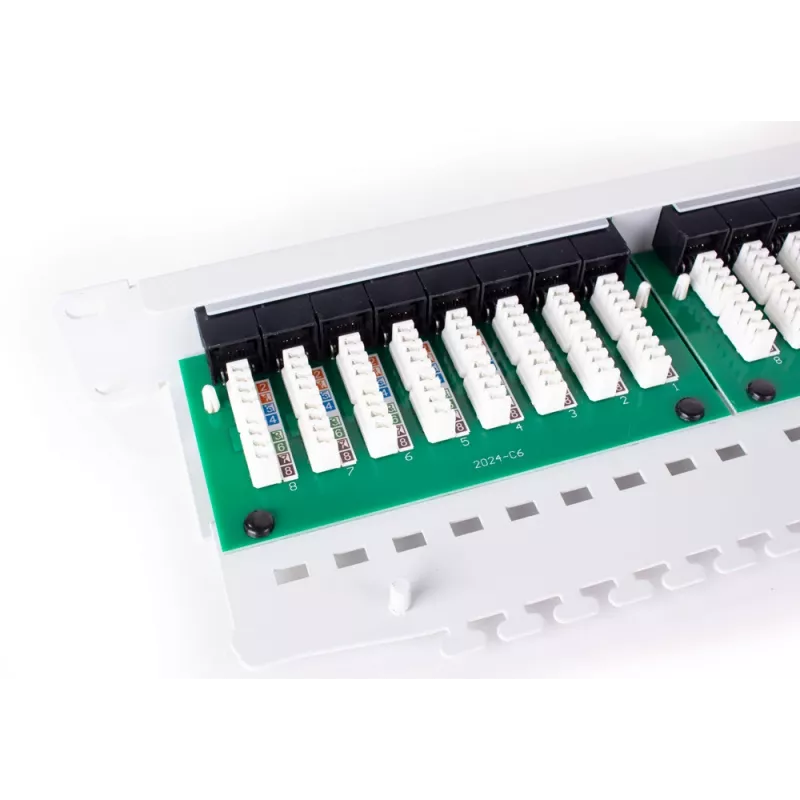

GETFORT Cat.6 UTP Patch Panel 24 Ports 1U Grey PGF-6UTP24-B5-G

The GETFORT PGF-6UTP24-B5-G is a reliable Cat.6 unshielded patch panel that centralises your network cabling in a clean, professional 19-inch rack. With 24 RJ45 ports in a 1U form factor, this panel is a straightforward choice for structured cabling in offices, server rooms, and data centres where organised patching matters.

Highlights

• 24 x Cat.6 UTP RJ45 ports for high-speed network distribution
• 19-inch 1U rack-mount design for standard network cabinets
• Colour-coded T568A/T568B wiring scheme for flexible termination
• IDC rear termination for fast, secure punch-down connections
• Durable SPCC steel housing with a sleek grey finish
• 50µ-inch gold-plated contacts for reliable signal transfer

In daily use

Mount the panel into any standard 19-inch network cabinet, then terminate incoming horizontal cables on the rear IDC blocks. The clear labelling and T568A/B colour codes make installation straightforward, while the front ports provide a tidy, accessible interface for patching switches and servers. Supporting 22-26 AWG solid or stranded conductors, this panel adapts to common cabling practices.

Full specifications

• Product Type: Patch Panel
• Performance Category: Cat.6
• Number of Ports: 24
• Mounting: 19-inch rack, 1U
• Connector Front: RJ45 female
• Rear Termination: IDC
• Wiring Standard: T568A / T568B
• Cable Shielding: UTP (unshielded)
• Housing Material: SPCC steel
• Colour: Grey
• Contact Plating: 50µ-inch gold over nickel
• Wire Gauge: 22-26 AWG
• Operating Temperature: -10°C to 60°C
• Storage Temperature: -40°C to 70°C
• Operating Humidity: 10% to 90% RH (non-condensing)
• Durability: 750 mating cycles (RJ45), 200 cycles (IDC)
• Compliance: RoHS, ISO/IEC 11801, EN 50173

Final note

This patch panel is a practical, cost-effective building block for a structured cabling system. With its solid construction and Cat.6 performance, it delivers stable connectivity for both current and future network needs.
