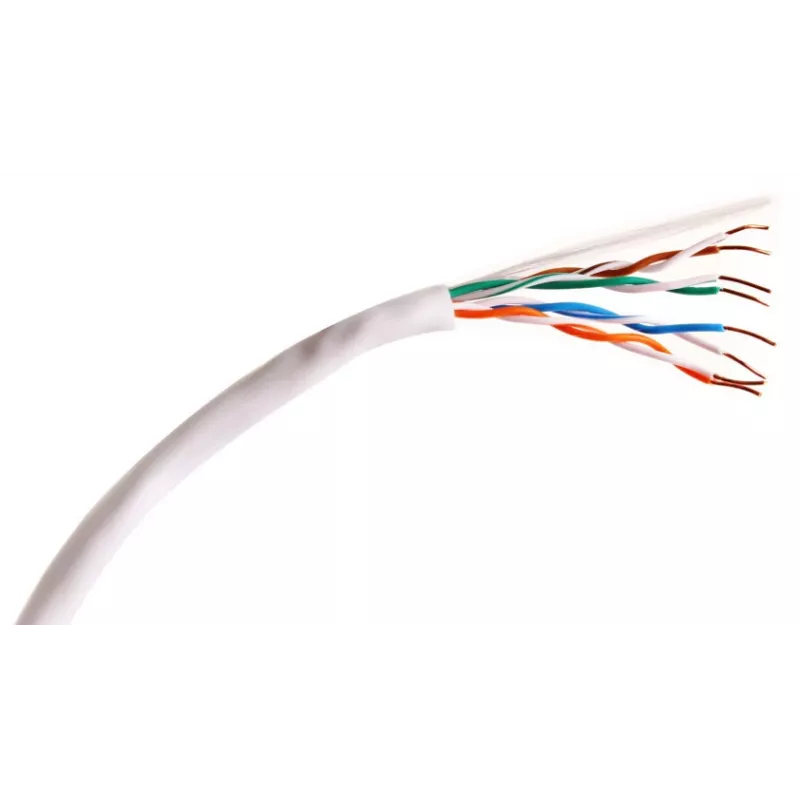

GETFORT Cat.5e U/UTP PVC Network Cable 305m (1000ft) - Grey

The GETFORT GF-5UTP-E-PVC-305 is a high-performance Category 5e U/UTP solid bare copper network cable, designed for reliable Gigabit Ethernet connections in indoor environments. With a length of 305 meters (1000 feet) and a durable PVC jacket, this cable is ideal for structured cabling installations in offices, data centers, and home networks.

Advantages

This cable offers excellent signal integrity and supports data rates up to 1000 Mbps (Gigabit Ethernet). The solid bare copper conductors ensure low resistance and high conductivity, while the U/UTP (unshielded twisted pair) design minimizes crosstalk and electromagnetic interference. The PVC jacket provides flexibility and protection for easy installation in conduits or cable trays.

Suitable for

• Structured cabling in commercial buildings
• Data center patching and backbone runs
• Home network installations requiring long cable runs
• 10BASE-T, 100BASE-TX, and 1000BASE-T networks

Key specifications

• Cable Standard: Category 5e (Cat.5e)
• Shielding Type: U/UTP (Unshielded)
• Jacket Material: PVC (Polyvinyl Chloride)
• Cable Length: 305 meters (1000 feet)
• Conductor Material: Solid Bare Copper
• Conductor Gauge: 24 AWG
• Number of Pairs: 4
• Number of Conductors: 8
• Wire Construction: Solid
• Maximum Bandwidth: 100 MHz
• Supported Protocols: 10BASE-T, 100BASE-TX, 1000BASE-T
• Application Environment: Indoor
• Cable Color: Grey
• Outer Diameter (Approx.): 5.0 mm
• Impedance: 100 Ohm ± 15%
• Standards Compliance: TIA/EIA-568-C.2, ISO/IEC 11801

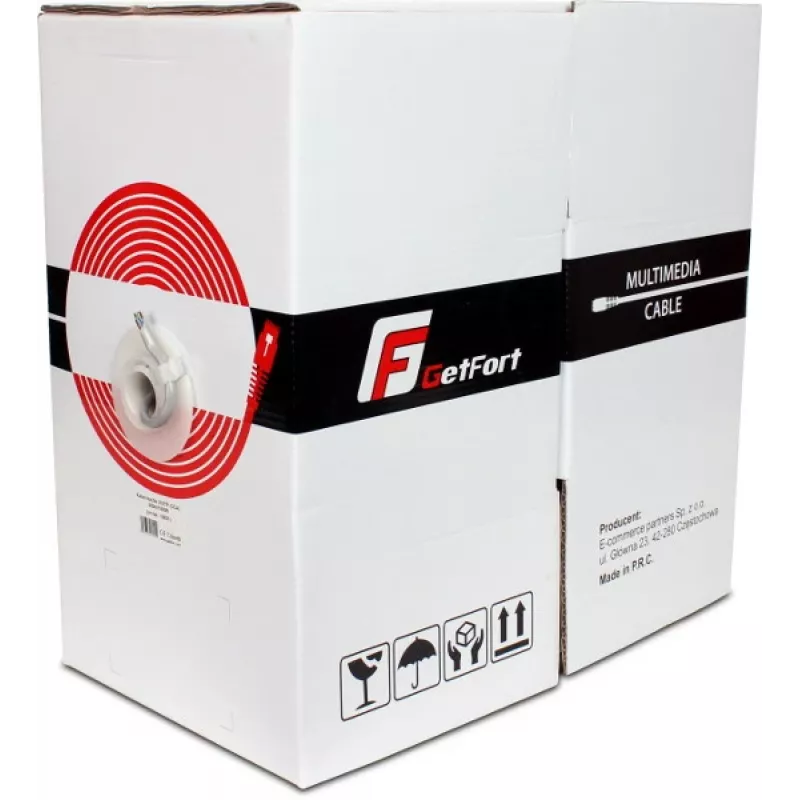

• Packaging Type: Reel-in-box
• Insulation Material: HDPE (High-Density Polyethylene)

Recommendations

For optimal performance, use with Category 5e or higher rated connectors and patch panels. Ensure proper cable management to avoid sharp bends and kinks. This cable is not suitable for outdoor or direct burial applications.
