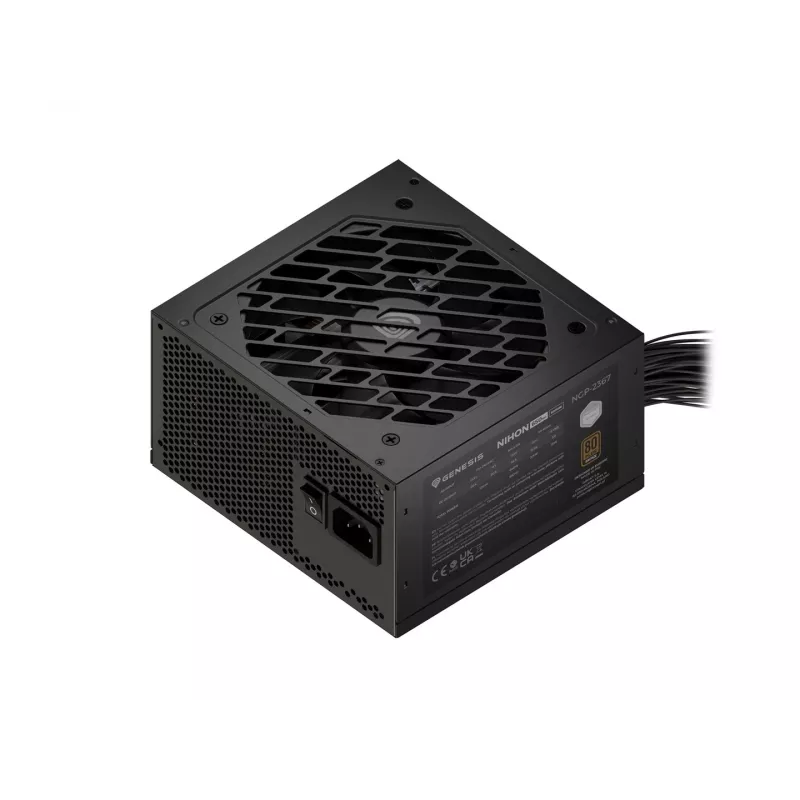

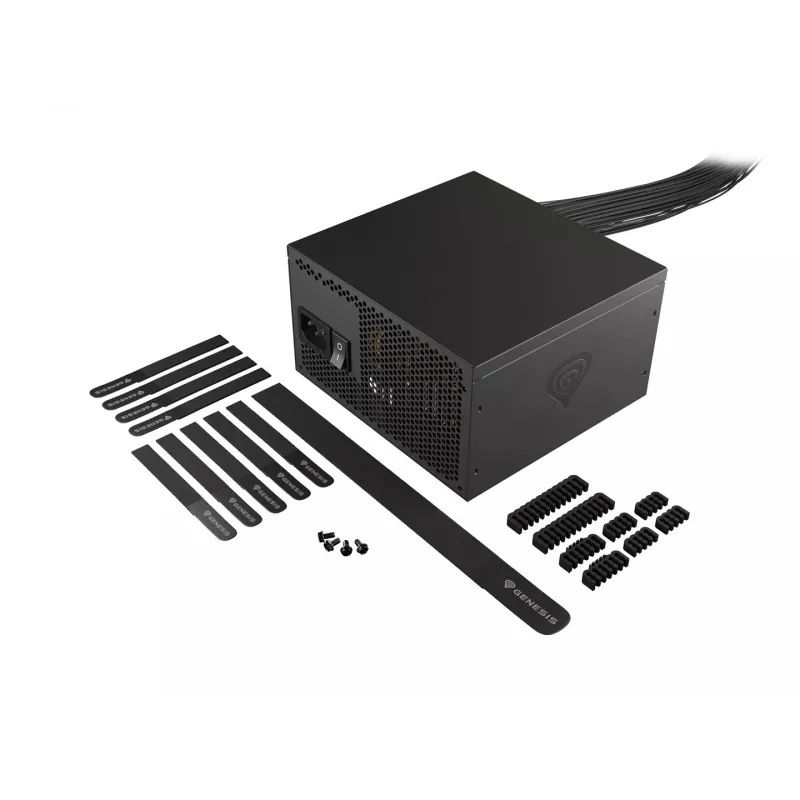

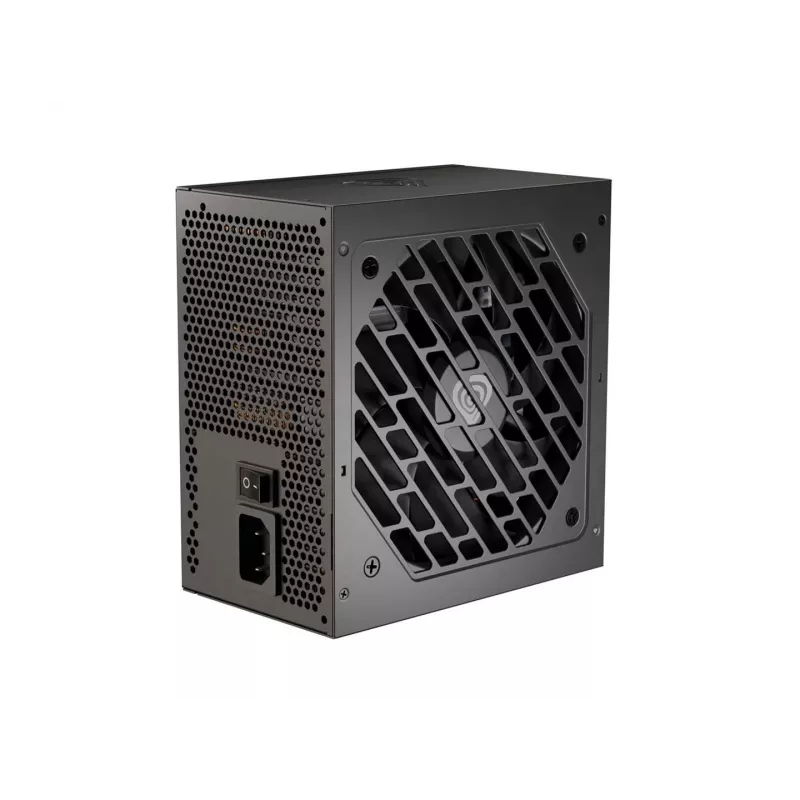

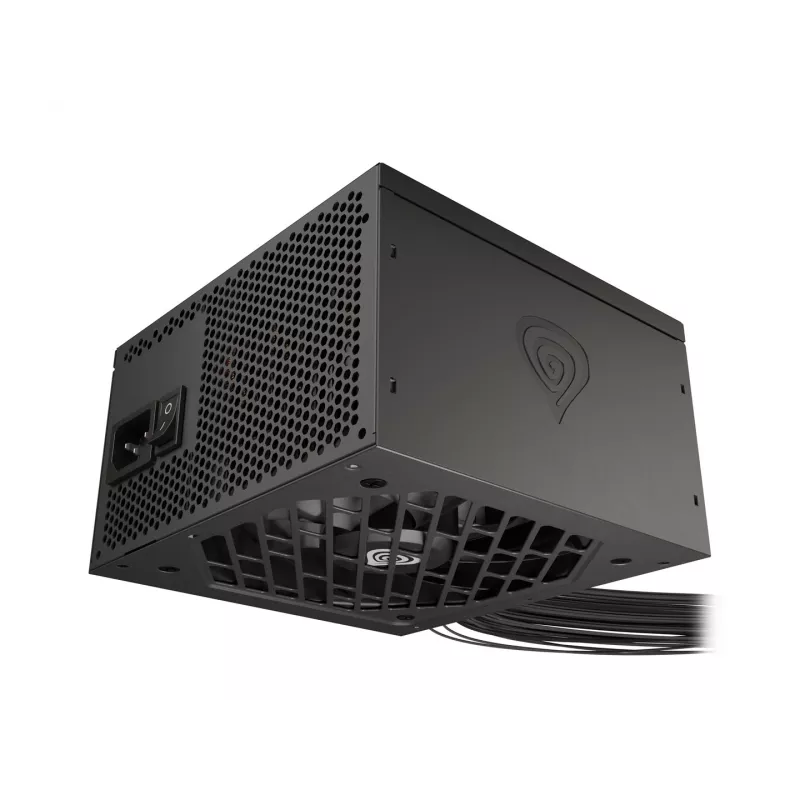

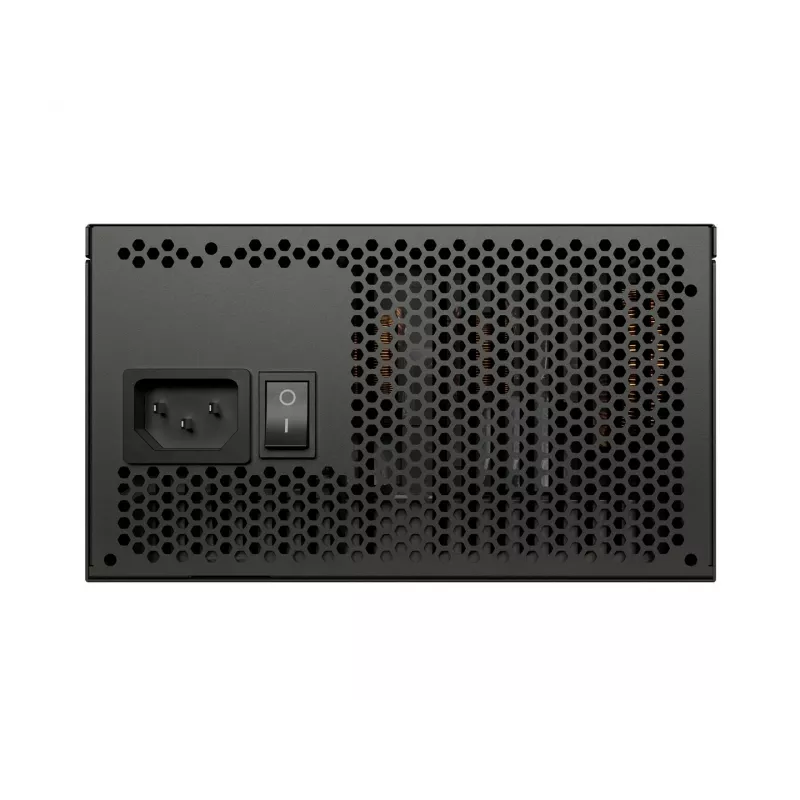

Genesis Nihon 650NM Black 650W 80+ Bronze ATX 3.1 Power Supply

The Genesis Nihon 650NM is a reliable and efficient power supply designed for modern desktop systems. With a 650W output and 80 PLUS Bronze certification, it delivers stable power with up to 85% efficiency, reducing energy waste and heat generation. Compliant with ATX 3.1 standard, it ensures compatibility with the latest hardware and provides robust protection features for your components.

Advantages

High efficiency 80 PLUS Bronze certification saves energy and lowers electricity bills. The 120 mm hydraulic bearing fan offers quiet and durable cooling. Active PFC ensures stable power factor correction. Comprehensive protection features (OVP, OPP, SCP, UVP, OCP, OTP) safeguard your system against electrical anomalies.

Suitable for

• Gaming PCs and workstations requiring reliable 650W power
• Systems with mid-range graphics cards and multiple drives
• Users seeking an affordable, non-modular power supply with good efficiency

Key specifications

• Total Power: 650 W
• Efficiency: 80 PLUS Bronze
• ATX Standard: ATX 3.1
• Form Factor: ATX
• Modularity: Non-Modular
• Fan Diameter: 120 mm
• Fan Bearing: Hydraulic Bearing
• PFC Type: Active PFC
• Input Voltage: 100-240V AC
• Input Frequency: 50-60 Hz
• Main Power Connector: 1x 20+4 Pin ATX
• CPU Power Connector: 1x 4+4 Pin EPS
• PCIe Power Connectors: 2x 6+2 Pin
• SATA Power Connectors: 6
• Peripheral (Molex) Power Connectors: 2
• Protection Features: OVP, OPP, SCP, UVP, OCP, OTP
• MTBF: 100,000 hours
• Colour: Black
• Warranty: 3 years

Recommendations

For optimal performance, ensure your system's total power draw does not exceed 650W. This power supply is ideal for builds with a single mid-range GPU and multiple storage devices. Always use the included cables and follow the manual for installation.
