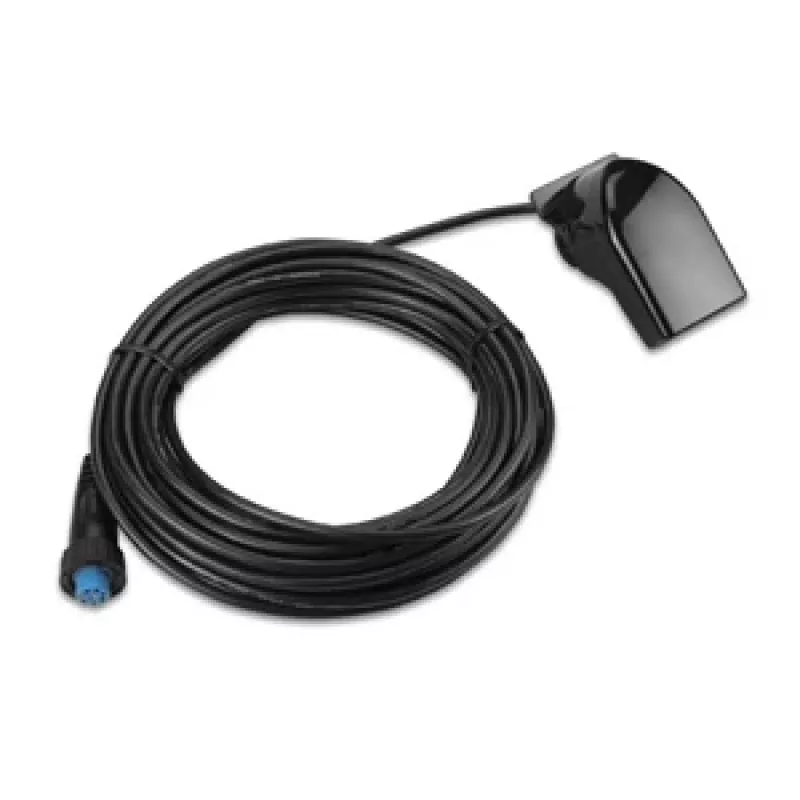

Garmin Dual Beam 8-Pin Transom Mount Transducer with Traditional and ClearVü Sonar

This transom-mounted transducer combines traditional 2D sonar with ClearVü scanning sonar, delivering exceptional clarity and depth performance for anglers who demand detailed underwater views. The dual-frequency traditional sonar (77/200 kHz) and CHIRP ClearVü (455/800 kHz) provide both wide coverage and photo-like images of structure and fish.

Advantages

The transducer integrates two sonar technologies: a traditional 50/200 kHz beam for wide coverage and high-detail ClearVü scanning for photo-like images of structure and fish. With 500 W RMS power, it reaches depths up to 1,900 ft in traditional mode and 750 ft in ClearVü. The built-in fast-response temperature sensor adds surface water temperature data to your display. Its transom mount is easy to install on most boat hulls, and the 20 ft cable with 8-pin connector ensures compatibility with a wide range of Garmin chartplotters.

Suitable for

• Anglers who want both traditional and scanning sonar without multiple transducers
• Boaters with Garmin ECHOMAP, STRIKER, or GPSMAP units featuring an 8-pin transducer port
• Freshwater and saltwater fishing up to 1,900 ft depth
• Those who need accurate water temperature readings for finding fish

Key specifications

• Transducer type: Traditional & ClearVü Scanning Sonar
• Mounting: Transom mount
• Connector: 8-pin
• Traditional frequencies: 77/200 kHz
• ClearVü frequencies: CHIRP 455 kHz (425-485 kHz) & 800 kHz (790-850 kHz)
• Traditional power: 500 W RMS
• ClearVü power: 500 W RMS
• Max depth traditional: 1,900 ft (579 m) at 77 kHz
• Max depth ClearVü: 750 ft (229 m) at 455 kHz
• Traditional beamwidth: 45°/15° (77 kHz/200 kHz)
• ClearVü beamwidth: 2.5°x53° (455 kHz), 1.6°x29° (800 kHz)
• Cable length: 20 ft (6.1 m)
• Temperature sensor: Yes (fast-response)
• Housing material: Plastic
• Supported functions: Depth and Temperature
• Compatibility: Garmin ECHOMAP, STRIKER, and GPSMAP series with 8-pin transducer port

Recommendations

For anglers seeking a single transducer solution that delivers both traditional sonar and ClearVü scanning, this Garmin unit offers exceptional performance and easy installation. Its robust construction and broad compatibility make it a reliable choice for a wide range of fishing environments.
