Gardena Spray Nozzle 360° Gardena 13322-20 1 pc

The Gardena Spray Nozzle 360° (Art. No. 13322-20) is a Micro-Drip-System component designed for all-round irrigation of flower and vegetable beds. The nozzle produces a fine 360° spray with a reach of up to 3 m and covers an area of approximately 28 m². It is compatible with 13 mm (1/2") connecting pipe and can be installed using the Assembly Tool (Art. No. 13313-20) or together with the T‑Joint for Spray Nozzles (Art. No. 13206-20). Extension pipes and a regulating shut-off valve are available as separate accessories to adapt height and flow.

Advantages

The Spray Nozzle 360° provides uniform circular irrigation from a central position, ensuring even water distribution across beds. Installation is straightforward with standard Micro-Drip-System fittings, and the nozzle head design makes spray pattern identification simple. Compatible accessories such as extension pipes allow flexible height adjustment, while the regulating shut-off valve enables individual flow control or complete shut-off of system strands. The product is manufactured in Germany and follows GARDENA quality standards.

Suitable for

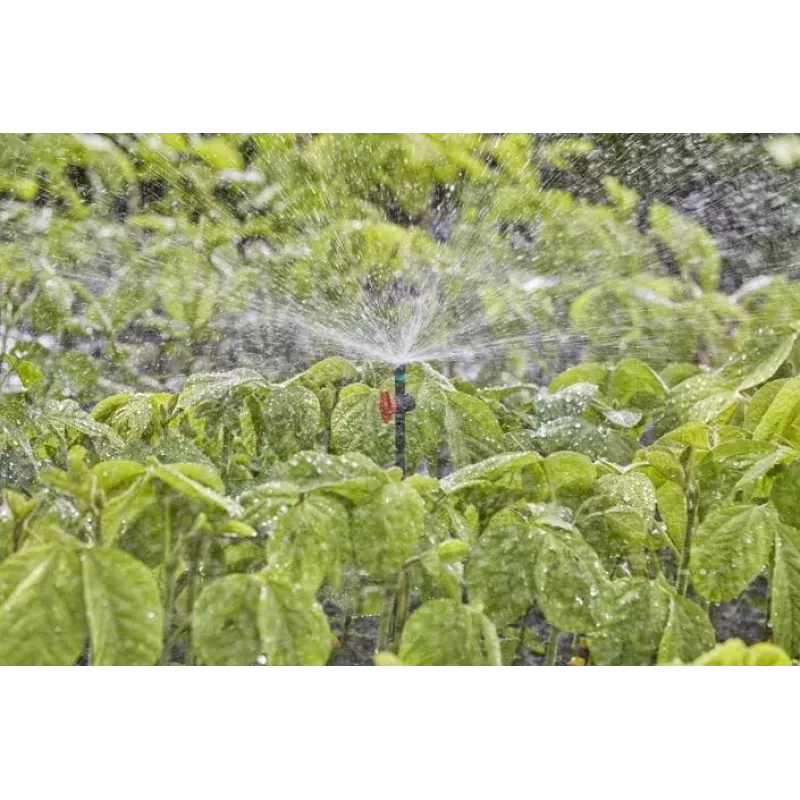

• Watering flower beds from a central point
• Irrigating vegetable plots and small garden areas
• Integration into a 13 mm Micro-Drip-System
• Adjustable irrigation of groups of plants using shut-off/regulating valves

Key specifications

• Brand: GARDENA
• Model / MPN: 13322-20
• EAN: 4078500059138
• Spray pattern: 360°
• Range: up to 3 m
• Coverage area: approx. 28 m²
• Compatible pipe diameter: 13 mm (1/2")
• Pack quantity: 1 piece

How to use

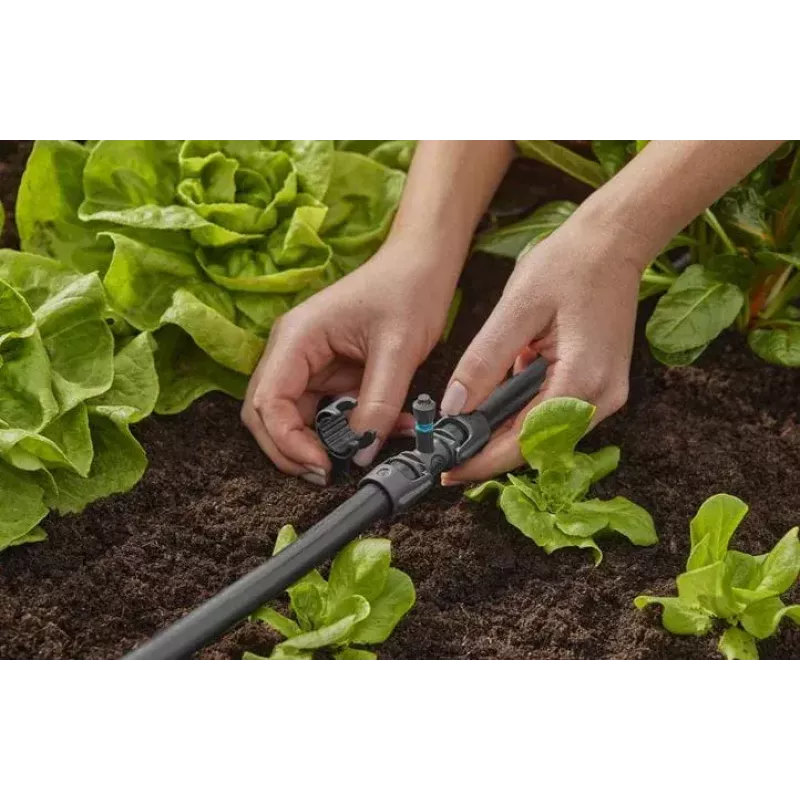

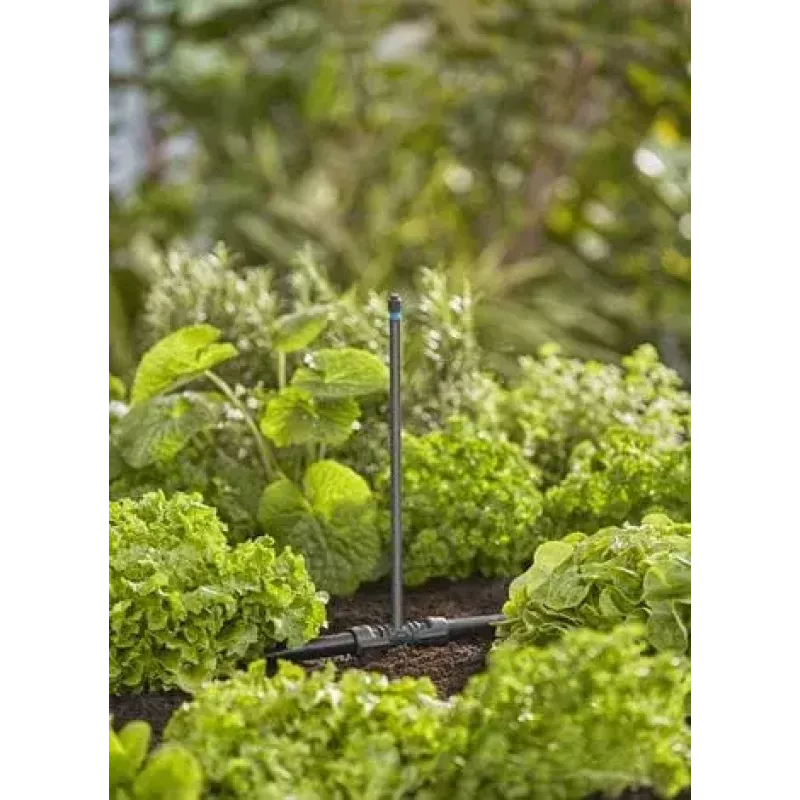

Place the Spray Nozzle 360° in the centre of the bed to achieve even circular irrigation. Install the nozzle into the 13 mm connecting pipe using the Assembly Tool (Art. No. 13313-20) or by fitting it with the T‑Joint for Spray Nozzles (Art. No. 13206-20). To increase nozzle height, attach one or more Extension Pipes for Spray Nozzles (Art. No. 13326-20). If required, fit the Shut-Off/Regulating Valve (Art. No. 13231-20) in the connecting pipe to adjust water flow or to isolate individual strands of the system.

Recommendations

For best results place the nozzle centrally in the bed, combine extension pipes if plants grow taller, and use the regulating shut-off valve to fine-tune water distribution and save water.
